Residual host cell DNA testing is a release-defining measurement for every biologic made in a cell substrate, and it controls two variables rather than one: how much DNA remains, and how long the surviving fragments are. This guide covers what the regulatory texts actually say, how the available residual DNA testing methods compare, the six decisions that define a qPCR assay, and how to match a host cell DNA residue detection kit to your production system.
Why residual host cell DNA testing controls two variables, not one
Any biologic made in a cell substrate — a recombinant protein from CHO or E. coli, a viral vaccine from Vero or MDCK, an AAV or lentiviral vector from HEK293, a subunit antigen from yeast — carries some quantity of the producer cell's genomic DNA into the purified product. Purification removes the vast majority of it. The question regulators ask is how much is left, and in what form.
The concern is not the DNA mass itself. It is the possibility that residual DNA fragments carry something biologically consequential: an intact dominant oncogene capable of transforming a recipient cell, or an infectious viral genome integrated in the substrate's chromosomes. Both risks scale with the probability that a functional gene arrives intact — which depends on how much DNA is present and how long the fragments are.
That two-variable structure is the single most important thing to understand about this assay, and it is the part most often missed when residual DNA testing is treated as a simple quantitation exercise. A sample at 8 ng/dose composed of 150 bp fragments is a different risk profile from a sample at 8 ng/dose composed of intact 6 kb fragments, even though both pass the same mass limit.
Regulatory limits for residual DNA in biologics: what the guidance says
The residual DNA limit most often quoted — 10 ng per parenteral dose — has a specific history worth knowing, because it is frequently cited alongside an older, stricter figure in a way that confuses the two.
WHO's original 1986 position treated residual cellular DNA as negligible risk at or below 100 pg per parenteral dose. That threshold was raised to 10 ng per dose in 1998, reflecting improved risk understanding and better analytics, and the current recommendation sits in WHO Technical Report Series No. 978, Annex 3 (2013), which replaced TRS 878, Annex 1. The 100 pg figure is superseded as a general limit, not a parallel standard.
FDA's 2010 cell substrate guidance aligns with WHO: for continuous non-tumorigenic cells such as low-passage Vero, residual DNA should be limited to less than 10 ng/dose for parenteral administration. The companion expectation, widely applied across agencies, is that residual DNA be reduced to a median fragment size at or below approximately 200 bp — below the length of a functional gene — to minimise the chance of intact oncogene transfer. Validated methods published against that threshold work exactly this way: André and colleagues built paired real-time PCR assays that separately quantify sequences shorter and longer than the 200 bp risk limit, using the relative abundance of the two targets as the readout of fragmentation (André et al., Biologicals 2016;44:139–49).
| Dimension | General expectation | Where it tightens |
|---|---|---|
| Amount | ≤10 ng per parenteral dose for products from continuous cell lines | Product-specific monographs and some national pharmacopoeias set picogram-per-dose limits for particular vaccines and cell substrates — confirm against the monograph that applies to your product |
| Fragment size | Median ~200 bp or below | Tumorigenic or oncogenic substrates, where size reduction carries more of the risk-mitigation burden |
| Route | Parenteral limits are the strict case | Oral administration is treated far more permissively, given much lower nucleic acid uptake |
| Gene therapy | 10 ng/dose and <200 bp are the reference points | For viral vectors, encapsidation makes fixed mass limits awkward; agencies have accepted risk-assessment–based, sponsor-defined specifications, often normalised to vector genomes |
Residual DNA testing methods compared — and why qPCR became the default
Pharmacopoeial chapters describe several acceptable approaches to residual DNA testing. They differ less in whether they work than in what they trade away.
DNA probe hybridization — legacy compendial method
Labelled probes hybridize to immobilized sample DNA. Sequence-specific and long established, but labour-intensive, slower, and comparatively insensitive against modern requirements. Largely displaced in new method development, though still relevant for comparability bridging against historic data.
Threshold / immunoenzymatic assay — sequence-independent total ssDNA
Detects single-stranded DNA through a binding-protein sandwich and enzymatic readout, without regard to sequence. That sequence independence is both the strength and the limitation: it captures total DNA regardless of origin, but cannot distinguish host cell DNA from plasmid, vector, or added nucleic acid, and it will not tell you fragment size.
Fluorescent dye binding — rapid in-process screen
Intercalating or groove-binding dyes give a fast total-nucleic-acid readout. Useful for in-process orientation, but sensitivity and specificity are insufficient for release testing at picogram-per-dose levels, and RNA and free nucleotides interfere.
Quantitative PCR (qPCR) — the industry default
Probe-based amplification of a host-genome–specific target, quantified against a standard curve built from genomic DNA of the same cell substrate. qPCR combines the sensitivity to reach femtogram-to-picogram levels with the sequence specificity to report host cell DNA rather than total DNA — and, by choosing amplicons of different lengths, it can be used to interrogate fragment size as well as mass.
Published validations show what that sensitivity looks like in practice. A Vero-cell assay targeting two highly repetitive genomic sequences reached a quantitation limit of 0.03 pg per reaction with 87.7–98.5% recovery and no cross-reactivity against common bacterial and cell strains (Zhao et al., Front Bioeng Biotechnol 2025;13:1611428). A second Vero assay, built on the alpha-satellite sequence, reported a limit of quantification of 0.31 ng/mL — well below the 10 ng/dose threshold — with 96.3% amplification efficiency and recoveries of 93–117% (Almario et al., J Virol Methods 2025;338:115217). qPCR is also the approach USP General Chapter <509> codifies with validated procedures and reference standards for CHO and E. coli, which is a large part of why it became the default.
Digital PCR (dPCR) — absolute quantitation, emerging
Partitioning the reaction gives an absolute copy count without a standard curve, and confers greater tolerance to partial inhibition. This matters most where matrix effects are severe or where standard-curve calibration is the dominant source of variability — increasingly relevant in viral vector work. Droplet digital PCR methods for CHO and for Pichia-derived protein drugs have been published that eliminate both DNA extraction and day-to-day DNA standards, and allow more drug substance per reaction, raising effective sensitivity (Hussain, J Pharm Biomed Anal 2022;211:114564; Hussain et al., J Pharm Biomed Anal 2016;123:128–31). dPCR is a complement to qPCR rather than a replacement, and compendial support is less mature.
Six decisions that define your residual host cell DNA assay
1. Identify the substrate — this picks the kit
Residual host cell DNA assays are substrate-specific by design. A CHO assay will not quantify HEK293 DNA, and vice versa. Match the kit to the cell line or organism that produced the material, not to the product class.
The science: the assay targets a sequence present in that genome and absent from everything else in the sample. Cross-reactivity in either direction is a design failure — an assay that also amplifies plasmid backbone or vector sequence will overestimate host DNA, while one that misses a divergent subclone will underestimate it. If your production line is a modified or adapted derivative of a standard substrate, confirm target conservation before you validate.
2. Decide whether you need amount, size, or both
A residue quantitation kit answers “how many picograms.” A size analysis kit answers “how much of that DNA is long enough to matter.” Products from tumorigenic or oncogenic substrates, and most viral vector products, generally need both.
The science: size analysis works by running multiple amplicons of different lengths against the same target. A short amplicon amplifies from nearly any surviving fragment; a long amplicon only amplifies from fragments that span its full length. The ratio between them reports the fragment length distribution, which is exactly what a nuclease step is supposed to be shifting downward (André et al. 2016).
3. Choose sample preparation for your matrix, not for convenience
Most samples cannot go into qPCR neat. High protein, detergents, chaotropes, high salt, and residual nuclease all interfere. Options run from simple dilution through proteolytic digestion to full extraction.
The science: dilution is the cheapest fix but costs you sensitivity — a problem when the specification is in picograms per dose. Extraction concentrates and cleans, but silica column chemistries recover short fragments poorly, which biases results low in exactly the post-nuclease samples where short fragments dominate. A third route removes the extraction step entirely: direct-qPCR protocols digest the drug substance with a protease, denature the protease, and amplify from the digest, reaching 5 fg sensitivity for CHO and validated quantitation limits of 0.1–0.8 ppb across 25 therapeutic proteins (Hussain, J Pharm Biomed Anal 2015;115:603–6; Peper et al., J Pharm Biomed Anal 2014;100:123–30). Whatever you choose, the sample preparation becomes part of the method and has to be validated as such.
4. Build the standard curve from the right material — in the right physical state
The calibrator should be genomic DNA from the same cell substrate. Less obviously, its fragmentation state should be comparable to the sample's.
The science: an intact genomic DNA standard and a heavily nuclease-digested sample are not the same analyte. Amplification efficiency, extraction recovery, and copies-per-picogram all differ between them. Calibrating fragmented samples against an intact standard is a recognised source of systematic bias — the André method development found that “the standard calibrator origin and structural conformation were shown crucial to achieve accurate quantification” (André et al. 2016). Where compendial reference standards exist for your substrate, such as the USP CHO and E. coli genomic DNA reference standards, use them.
5. Run spike-and-recovery and an inhibition control on every matrix
A negative extraction control catches contamination. A spiked sample control catches the more insidious failure: quantitative loss you cannot see.
The science: residual DNA assays fail silently. Inhibition, poor recovery, and nuclease carryover all push results downward — toward a result that looks like a clean process. A spike of known DNA carried through the full procedure is the only routine check that distinguishes “our purification is excellent” from “our assay is not seeing what is there.” Recovery should be established per matrix and per process step, not once for the product; published assays report recovery windows of roughly 88–117% as the acceptable working range.
6. Convert to per-dose and validate for intended use
Assays report concentration; specifications are per dose. Multiply through by the dose volume, then validate specificity, LOD/LOQ, linearity, range, accuracy, precision, and robustness against ICH Q2 expectations.
The science: an assay LOD in pg/mL only translates to a defensible per-dose claim once dose volume is fixed. Work the arithmetic backwards early: required per-dose limit ÷ dose volume = required assay sensitivity, with margin. If the arithmetic says you need sub-picogram-per-millilitre sensitivity, that constrains extraction strategy and platform choice before you start method development, not after.
Where residual DNA assays fail silently
Residual DNA methods rarely fail loudly. The characteristic failure is a plausible-looking low number. Five causes account for most of it.
- Nuclease carryover. Endonuclease used to clear nucleic acid upstream can survive into the analytical sample and continue digesting target DNA — including your spike — during handling. Heat inactivation, EDTA, or an extraction step that removes protein all mitigate this. Untreated, it produces confidently low results.
- Short-fragment loss during extraction. The better the nuclease step worked, the shorter the residual fragments, and the more likely a silica column is to lose them. This creates a perverse coupling where improving the process appears to improve the assay result more than it actually did.
- Matrix inhibition. Detergents, guanidinium, heparin, high protein, and some excipients depress amplification efficiency. The effect is concrete and correctable: SDS used to solubilise therapeutic protein inhibits DNA polymerase directly, and Peper and colleagues restored amplification by adding 2% (v/v) Tween 20 to the final qPCR mix (Peper et al. 2014). Inhibition is visible as a shifted Cq in a spiked sample relative to the same spike in water — which is why the control is not optional.
- Target copy number assumptions. Multi-copy repetitive targets give better sensitivity, but copy number per genome varies between cell lines, clones, and passages. Where the specification is tight, understand whether your assay's picogram conversion rests on a copy-number assumption that holds for your specific bank.
- Encapsidated versus free DNA. In viral vector products, host DNA packaged inside capsids is not accessible to extraction reagents the way free DNA is. Whether your method releases it — and whether your specification intends to count it — needs to be an explicit decision, not an accident of the protocol.
Matching a host cell DNA residue detection kit to your production system
BioHippo supplies Yeasen's qPCR residual DNA portfolio across mammalian, insect, bacterial, and yeast substrates. Select by the organism that produced the material, then confirm the specification against the product page. Browse the full range in the BioHippo kits catalog or the wider PCR, qPCR & RT-PCR range.
| Production system | Typical products | Assay |
|---|---|---|
| CHO | Monoclonal antibodies, recombinant proteins, fusion proteins | CHO Host Cell DNA Residue Detection Kit (3G) — residual DNA quantitation |
| HEK293 | AAV and lentiviral vectors, transient-expression proteins | HEK293 Host Cell DNA Residue Detection Kit (3G) — residual DNA quantitation |

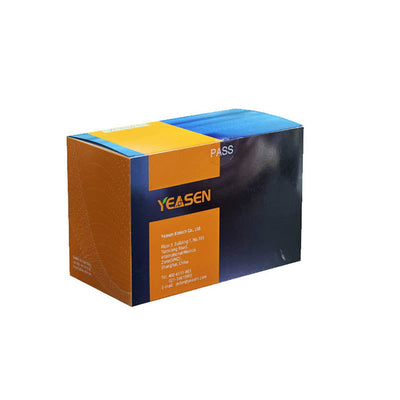

| HEK293 | Fragment size profiling alongside quantitation | HEK293 Host Cell Residue DNA Size Analysis Kit — fragment length distribution |
| Vero | Inactivated and live viral vaccines | Vero Host Cell Residue DNA Size Analysis Kit — fragment length distribution |
| MDCK | Cell-culture influenza vaccines | MDCK Host Cell DNA Residue Detection Kit — residual DNA quantitation |

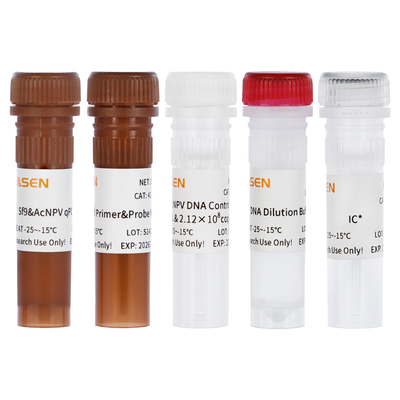

| Sf9 / baculovirus | Baculovirus-expressed proteins, VLPs, AAV via baculovirus | Sf9 and Baculovirus DNA Residue Detection Kit — host and vector DNA |
| E. coli | Microbial recombinant proteins, plasmid DNA manufacture | E. coli Host Cell DNA Residue Detection Kit (2G) — residual DNA quantitation |
| P. pastoris | Yeast-expressed recombinant proteins and antigens | Pichia pastoris Host Cell DNA Residue Detection Kit — residual DNA quantitation |

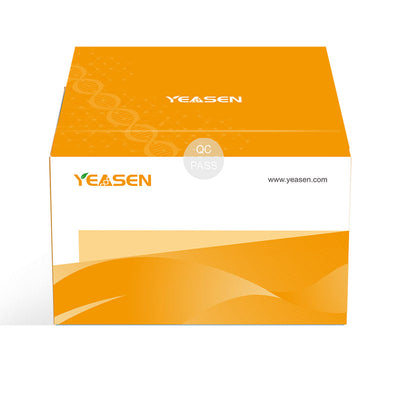

| S. cerevisiae | Yeast-derived subunit vaccines and proteins | S. cerevisiae Host Cell DNA Residue Detection Kit — residual DNA quantitation |
| H. polymorpha | Methylotrophic yeast expression systems | Hansenula polymorpha Host Cell DNA Residue Detection Kit — residual DNA quantitation |
Adjacent impurities in the same workflow
Host cell DNA is rarely the only nucleic acid impurity under specification. Two related assays cover the rest of the panel:

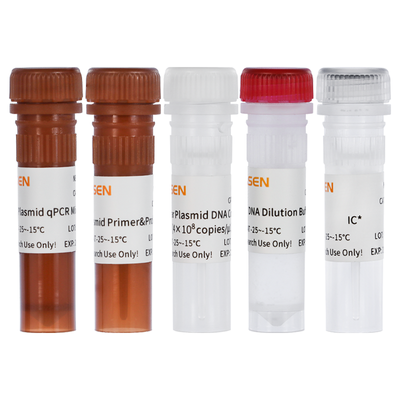

- Plasmid DNA Residue Detection Kit — quantifies residual plasmid backbone, a process-related impurity distinct from host genomic DNA and relevant to transient transfection and microbial plasmid platforms. Regulators treat it as its own specification: national control laboratories have validated dedicated femtogram-level qPCR assays for E. coli host DNA in plasmid vector batches used in human gene therapy (Ferro et al., Hum Gene Ther Methods 2016;27:159–70).
- E. coli Host Cell RNA Residue Detection Kit — quantifies residual host RNA where RNA clearance is separately controlled.
Because the nuclease step is what moves both mass and fragment size, the clearance reagent and the assay should be selected together — see the DENARASE® enzymatic DNA removal toolkit for the upstream half of that pair.
Confirm limit of detection, linear range, target design, sample pretreatment requirements, and available validation documentation on each product page before locking a method. If you are unsure which assay fits your matrix, request a quote with your substrate, sample matrix, and target specification.
Residual host cell DNA testing: frequently asked questions
What is residual DNA, and why is it tested?
Residual DNA is genomic DNA from the producer cell substrate that survives purification and remains in the finished biologic. It is controlled as a process-related impurity because DNA fragments long enough to carry a functional gene could, in principle, transfer an intact dominant oncogene or an integrated infectious viral genome. Testing therefore reports both how much DNA remains and how fragmented it is.
What is the FDA limit for residual host cell DNA?
For products from continuous non-tumorigenic cell lines administered parenterally, FDA's 2010 cell substrate guidance aligns with the WHO recommendation of less than 10 ng per dose, alongside an expectation of median fragment size at or below approximately 200 bp. Individual product monographs can be considerably stricter — down to picograms per dose — so the applicable monograph, not the general figure, sets your specification.
Can I use a CHO kit for a heavily engineered CHO-derived cell line?
Usually yes, but verify rather than assume. Residual DNA assays target conserved genomic sequences, which are generally retained through routine engineering and clonal adaptation. Where the line has undergone extensive genome editing or long-term adaptation, confirm target presence and copy number in your own working cell bank as part of method qualification.
Why does my result drop further after I improve the nuclease step than the process change should explain?
Two effects compound. The real one: nuclease treatment genuinely reduces DNA mass and fragment length. The artefact: shorter fragments are recovered less efficiently by some extraction chemistries, and residual nuclease carried into the sample can continue digesting during handling. Run a spike carried through the full procedure on post-nuclease material to separate the two.
Do I need a size analysis kit if my quantitation result already passes?
It depends on your substrate and product class. Mass and fragment size are controlled together, and for tumorigenic substrates and many viral vector products, demonstrating that residual DNA is fragmented below the functional-gene threshold is part of the risk argument rather than an optional extra. If your quantitation result passes comfortably and your substrate is non-tumorigenic, size data may be characterisation rather than release testing — confirm against your applicable guidance.
qPCR or dPCR for residual DNA testing?
qPCR for most routine work: it has the throughput, the compendial support, and the regulatory familiarity. Consider dPCR where matrix inhibition is severe and cannot be diluted away, where standard-curve calibration is your dominant variability source, or where an absolute copy count is preferable to a mass estimate — a situation that arises fairly often in viral vector characterisation.
Can one assay cover both host cell DNA and plasmid DNA?
No — and it should not. They are distinct impurities with distinct sources, distinct clearance behaviour, and often distinct specifications. A well-designed host cell DNA assay specifically avoids amplifying plasmid sequence, precisely so the two can be reported independently. Use a dedicated plasmid residue assay alongside it.
What assay sensitivity do I actually need?
Work backwards from the specification. Divide the per-dose limit by the dose volume to get the required concentration sensitivity, then add margin for LOQ versus LOD and for extraction recovery below 100%. Do this before selecting a platform — if the arithmetic lands in the sub-picogram-per-millilitre range, it constrains your extraction and concentration strategy from the outset.
Method comparison at a glance
| Method | Best for | Key trait |
|---|---|---|
| qPCR | Release testing and in-process control | Sequence-specific · high sensitivity · compendial support |
| dPCR | Difficult matrices · absolute quantitation | No standard curve · inhibitor tolerant |
| Threshold / immunoenzymatic | Total DNA where sequence is irrelevant | Sequence-independent · no species discrimination |
| Probe hybridization | Legacy methods and comparability bridging | Sequence-specific · low throughput |
| Fluorescent dye | Rapid in-process orientation | Fast · not release-grade |
| Multi-amplicon size analysis | Fragment length distribution | Reports the size axis of the risk assessment |
References
- World Health Organization. Recommendations for the evaluation of animal cell cultures as substrates for the manufacture of biological medicinal products and for the characterization of cell banks. WHO Technical Report Series No. 978, Annex 3 (2013); replacement of TRS 878, Annex 1. Full text (PDF)
- World Health Organization. Requirements for the use of animal cells as in vitro substrates for the production of biologicals. Biologicals 1998;26:175. (1998 revision raising the recommended limit from 100 pg to 10 ng per parenteral dose.)
- U.S. Food and Drug Administration. Guidance for Industry: Characterization and Qualification of Cell Substrates and Other Biological Materials Used in the Production of Viral Vaccines for Infectious Disease Indications. 2010.
- André M, Reghin S, Boussard E, Lempereur L, Maisonneuve S. Universal real-time PCR assay for quantitation and size evaluation of residual cell DNA in human viral vaccines. Biologicals 2016;44(3):139–49. doi:10.1016/j.biologicals.2016.03.002
- Zhao D, Zong W, Wu W, Li Y, Wu Z, Yang Z, Cao S. Development and validation of a qPCR assay for the detection of residual host cell DNA in rabies vaccines produced in Vero cells. Front Bioeng Biotechnol 2025;13:1611428. doi:10.3389/fbioe.2025.1611428
- Almario MP, Rivera J, Páramo C, Jaramillo V, Chaparro Y, Suárez-Moreno ZR. A high-sensitivity qPCR method for detecting residual Vero cell DNA in rabies vaccine production. J Virol Methods 2025;338:115217. doi:10.1016/j.jviromet.2025.115217
- Hussain M. A direct qPCR method for residual DNA quantification in monoclonal antibody drugs produced in CHO cells. J Pharm Biomed Anal 2015;115:603–6. doi:10.1016/j.jpba.2015.03.005
- Peper G, Fankhauser A, Merlin T, Roscic A, Hofmann M, Obrdlik P. Direct real-time quantitative PCR for measurement of host-cell residual DNA in therapeutic proteins. J Pharm Biomed Anal 2014;100:123–30. doi:10.1016/j.jpba.2014.07.032
- Hussain M. Isothermal droplet digital PCR method for quantification of CHO residual DNA. J Pharm Biomed Anal 2022;211:114564. doi:10.1016/j.jpba.2021.114564
- Hussain M, Fantuzzo R, Mercorelli S, Cullen C. A direct droplet digital PCR method for quantification of residual DNA in protein drugs produced in yeast cells. J Pharm Biomed Anal 2016;123:128–31. doi:10.1016/j.jpba.2016.01.050
- Ferro S, Fabre I, Chenivesse X. Optimizing a method for the quantification by qPCR of host cell DNA in plasmid vector batches used in human gene therapy. Hum Gene Ther Methods 2016;27(4):159–70. doi:10.1089/hgtb.2015.155
- United States Pharmacopeia. General Chapter <509> Residual DNA Testing (2019); General Chapter <1130> Nucleic Acid-Based Techniques — Approaches for Detecting Trace Nucleic Acids; USP CHO Genomic DNA RS and USP E. coli Genomic DNA RS reference standards.
- International Council for Harmonisation. ICH Q2 Validation of Analytical Procedures.
BioHippo is an authorized distributor of Yeasen Biotechnology products. Regulatory expectations summarized here are general reference points drawn from the cited guidance and are not a substitute for the monograph or guidance applicable to a specific product; limits vary by substrate, product class, and route of administration, and should be confirmed against the current applicable text. Confirm assay specifications, sample compatibility, and intended-use statements on each product page before purchase. Research use only unless otherwise stated on the product page.
