Streptavidin magnetic beads are magnetic microspheres or nanospheres coated with the protein streptavidin, and they have become the universal capture handle of the molecular lab. Because streptavidin binds biotin — a small vitamin tag you can attach to almost any biomolecule — with one of the tightest non-covalent bonds in nature, a single streptavidin bead can grab a biotinylated antibody, oligonucleotide, peptide, aptamer, or protein and pull it out of a complex sample on a magnet. This guide explains what streptavidin magnetic beads are, how the biotin bond works, a step-by-step separation protocol, and how to choose between formats.
What streptavidin magnetic beads are
On its own, a streptavidin bead captures nothing specific. Its power is that streptavidin binds biotin, so you can turn the same bead into any assay you like: biotinylate an antibody, oligo, peptide, aptamer, or whole protein, and it snaps onto the streptavidin surface. Add your sample, place the tube on a magnet, and the beads — carrying whatever they have captured — collect at the tube wall while everything else washes away. Swap the biotinylated ligand and the same bead becomes a different assay. You are not buying a fixed reagent; you are buying a capture platform.
BioHippo carries three streptavidin bead lines from Ocean NanoTech that span the practical range of sizes and formats: SuperMag (nanoscale), MonoMag (uniform micro-beads), and HiSur (high-binding-capacity micro-beads), all in the Beads & Nanoparticles collection.
When to use streptavidin magnetic beads
Streptavidin magnetic beads earn their place when a protocol contains a capture, enrichment, or separation step — a point where you need to pull one specific thing out of a complex mixture and physically move it away from everything else. Consider them when:
- Your workflow has an isolate / enrich / pull-down step — immunoprecipitation, target capture, or nucleic-acid isolation out of lysate, serum, or a reaction mix.
- You have or can make a biotinylated probe — thousands of antibodies and oligos are sold pre-biotinylated, and biotinylation kits are routine.
- You need to separate bound from unbound quickly and wash hard, where spin columns or centrifugation are too slow, too lossy, or too gentle to clear background.
- You are building or optimizing an assay and want a modular capture surface — swap the biotinylated ligand to change the target without rebuilding the platform.
- You need a scale-up- and automation-friendly separation: magnetic pull-down instead of columns.
- You are selecting a specific cell subset with a biotinylated anti-surface-marker antibody (positive or untouched selection).
Look elsewhere when your target must come off fully native and label-free with no elution stress (design in a cleavable linker or use a gentler affinity tag), or when your sample carries high endogenous biotin that can compete for binding sites unless blocked.
How the streptavidin–biotin bond works
Streptavidin is a bacterial protein with four binding pockets, each of which grips a single biotin molecule. The interaction has a dissociation constant on the order of 4×10-14 M — among the strongest non-covalent biological interactions known, and effectively irreversible under ordinary buffer, temperature, and pH conditions.1 It forms fast, survives washing and moderate detergents, and does not let go. For a capture reagent, that is exactly what you want: the link between your ligand and the bead is not the weak point of the experiment.
Three streptavidin magnetic bead formats
All three lines share the same streptavidin surface and the same near-irreversible biotin capture. They differ in size and magnetic content, which set capture kinetics, surface area, separation speed, and how the beads behave in your hands.
SuperMag — nanoscale capture, maximum surface area
SuperMag Streptavidin Beads (50–200 nm, ~80% magnetic content) give an enormous surface area per milligram and excellent colloidal stability, so they stay suspended and meet the target quickly — strong capture kinetics for low-abundance analytes and nucleic acids — while their high iron content still pulls them down fast on a magnet. Use when you want maximum capture per unit of bead and fast kinetics.

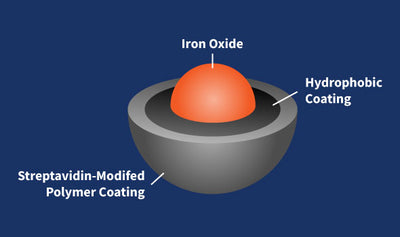

MonoMag — uniform micro-beads, low autosignal
MonoMag Streptavidin Beads are monodisperse micro-beads (1, 3, and 4.5 µm; CV ≤5%) in hydrophilic and hydrophobic surfaces. The tight uniformity gives reproducible, low-CV results, and the coating limits iron exposure for low autosignal — well suited to chemiluminescent and automated immunoassays. Use when run-to-run reproducibility or a clean chemiluminescent background drives your CV.

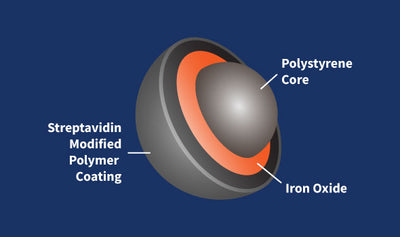

HiSur — high-capacity general-purpose beads
HiSur Streptavidin Beads are hydrophilic 1 µm beads built around a high-surface coating that presents many available biotin-binding sites — superior binding capacity with low non-specific binding, designed as a drop-in alternative to widely used commercial streptavidin magnetic beads for capture and immunoprecipitation. Use when you want a reliable, high-capacity workhorse for pull-downs and IP.

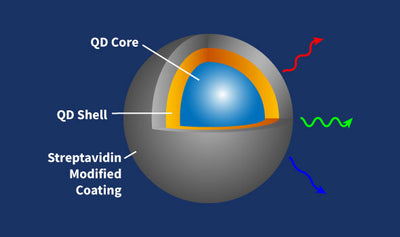

Need a different modality on the same streptavidin chemistry? Streptavidin Iron Oxide Nanoparticles (10–30 nm) push capture to the true nanoparticle scale, and Streptavidin Quantum Dots swap magnetic separation for a bright fluorescent readout in flow cytometry and imaging.
Streptavidin magnetic bead separation protocol, step by step
Every streptavidin bead workflow follows the same shape: arm the bead with a biotinylated ligand, capture the target, then use the magnet to separate and wash. The details vary by application, but the sequence does not.
- Choose or make a biotinylated ligand. Use a pre-biotinylated antibody or oligonucleotide, or biotinylate your own protein/peptide with a standard labeling kit. This ligand defines what the bead will capture.
- Resuspend and equilibrate the beads. The beads ship as an aqueous suspension and settle on standing — vortex or pipette to a uniform slurry, then wash into your binding buffer on the magnet.
- Arm the beads. Incubate beads with the biotinylated ligand (minutes at room temperature). The bond forms quickly; a brief wash removes unbound ligand.
- Capture the target. Add your sample — lysate, serum, nucleic-acid prep, or cell suspension — and incubate so the armed ligand binds its target. Larger beads may need gentle mixing to stay suspended; nanobeads stay dispersed on their own.
- Separate on the magnet. Place the tube on a magnetic separator. Beads collect at the wall in seconds to a minute; aspirate and discard the supernatant. Wash 2–3× on the magnet to reduce background.
- Elute or carry forward. Elute the captured complex (heat, low pH, or competition) for a bead-free eluate, or take the beads directly into a downstream step — PCR, mass spec, Western blot, or flow cytometry.

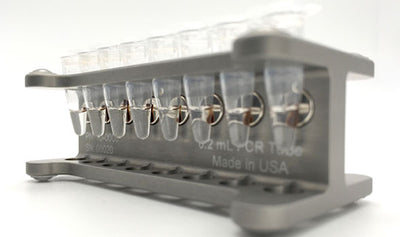

A dedicated magnetic separator is required hardware for the separation step. BioHippo stocks the Multitube Magnetic Separators (BHT12200033) for tube-format work.
Who uses streptavidin magnetic beads
Because the capture target is set by the biotinylated ligand rather than the bead, the same product turns up across very different benches:
- Molecular biologists & genomics labs — capture biotinylated oligos to isolate nucleic acids, enrich targets for NGS, recover DNA from ChIP / CUT&Tag, pull down aptamers, or purify mRNA with biotinylated oligo-dT.
- Protein biochemists — immunoprecipitation and co-IP with biotinylated antibodies, pull-down assays, and protein–protein interaction studies needing a clean, high-capacity solid phase.
- Immunoassay & IVD developers — a magnetic solid phase for chemiluminescent immunoassays, ELISA, multiplex panels, and lateral-flow reporter capture, where MonoMag's uniformity and low autosignal are aimed.
- Cell biologists & immunologists — magnetic separation of specific cell subsets using biotinylated anti-surface-marker antibodies, in positive or untouched (negative) selection.
How to choose: SuperMag vs MonoMag vs HiSur
Two questions pick the line. First: do you want maximum surface area and kinetics, or easy handling and uniformity? Nanobeads (SuperMag) give the most binding surface and stay suspended — ideal for trace targets and nucleic acids; micro-beads (MonoMag, HiSur) are easier to see, settle, and manipulate manually. Second: is reproducibility or capacity your priority? For low-CV, low-autosignal immunoassays choose monodisperse MonoMag; for a high-capacity general-purpose capture and IP bead, choose HiSur.
| Line | Size | Magnetic content | Best for |
|---|---|---|---|
| SuperMag | 50–200 nm | ~80% | Max surface area & kinetics · trace targets · nucleic-acid capture · fast separation |
| MonoMag | 1 / 3 / 4.5 µm | ~18–35% | Uniform, low-autosignal immunoassays · chemiluminescence · automated platforms |
| HiSur | 1 µm | ~40% | High-capacity general-purpose capture & immunoprecipitation |
All three: streptavidin surface · aqueous suspension · pH 6.0–8.0 · 1 mL–100 mL packs. Browse the full range in the Beads & Nanoparticles collection, and confirm binding capacity, size, and pack size on each product page before purchase.
Frequently asked questions
How much biotinylated ligand and bead do I actually need?
Start from the bead's stated binding capacity and titrate rather than guessing. Too little ligand under-arms the beads and caps your yield; too much leaves free ligand competing with bead-bound ligand for the target. A small pilot with two or three bead-to-ligand ratios, and a bead-to-sample ratio scaled to your expected target amount, settles it quickly. Nanobeads (SuperMag) offer far more surface area per volume, so equivalent capacity comes from a smaller bead volume.
Should I pre-arm the beads, or biotinylate my sample first?
Both work. Pre-arming (load the biotinylated ligand onto the beads, wash, then add sample) gives a defined, reusable capture reagent and the cleanest background — the usual choice for IP and assay development. Labeling the target or probe in solution first, then capturing on beads, can improve access to scarce or awkward targets. Pick pre-arming for reproducibility, solution-phase labeling for capture efficiency on difficult targets.
How do I get my target back off the beads?
Because the streptavidin–biotin bond is effectively irreversible, you elute the captured complex rather than break that bond — typically with heat, low pH, or a competing agent, depending on how native the target must stay. If you need a fully native, bead-free product, build a cleavable linker into the biotinylated ligand or use a downstream step that releases the target from the ligand.
My background is high. What is the usual cause?
Most non-specific background comes from under-washing, too much bead relative to target, or a sticky sample matrix. Increase the number of washes on the magnet, lower the bead amount, add a carrier protein or mild detergent to the binding/wash buffer, and include a no-ligand bead control to see what binds the surface itself. MonoMag's uniform, low-autosignal surface is specifically aimed at keeping background down in chemiluminescent formats.
Which size should I choose — nanobeads or micro-beads?
Nanobeads (SuperMag, 50–200 nm) give the most surface area and stay suspended for strong capture kinetics — good for trace targets and nucleic acids — but need a strong magnet and a bit more separation time. Micro-beads (MonoMag and HiSur, 1–4.5 µm) are easier to see, settle, and wash manually.
Can I use streptavidin beads to isolate cells, including PBMCs?
Yes, as long as the population carries a marker you can target. Use a biotinylated antibody against a surface marker to capture the cells of interest (positive selection), or biotinylated antibodies against everything you do not want (untouched/negative selection). For example, to isolate monocytes from PBMCs, label the cells with a biotinylated anti-human CD14 antibody (CD14 is the canonical monocyte marker), then capture the coated monocytes on the streptavidin beads and pull them down on the magnet. For viability-sensitive work, keep incubations cold and handle the beads gently.
Does endogenous biotin in my sample interfere?
It can. Samples with high free biotin (some tissues, or biotin-supplemented samples and sera) contain molecules that compete for streptavidin's binding sites and can reduce capture. If you suspect this, a biotin-blocking/depletion step or an alternative capture chemistry avoids the competition. For most standard lysates, serum, and nucleic-acid preps it is not a practical problem.
Do I need special equipment?
Yes — a magnetic separator sized to your tubes is required for the separation step. BioHippo stocks the Multitube Magnetic Separators for tube-format work. Beyond that, streptavidin bead workflows use standard pipettes, tubes, and buffers — no columns or centrifugation for the capture step itself.
References
- Holmberg A, Blomstergren A, Nord O, Lukacs M, Lundeberg J, Uhlén M. The biotin-streptavidin interaction can be reversibly broken using water at elevated temperatures. Electrophoresis. 2005;26(3):501–510. doi:10.1002/elps.200410070 (reports Kd ≈ 4×10-14 M).
- Deng L, Kitova EN, Klassen JS. Dissociation kinetics of the streptavidin–biotin interaction measured using direct electrospray ionization mass spectrometry. J Am Soc Mass Spectrom. 2013;24(1):49–56. doi:10.1007/s13361-012-0533-5.
For Research Use Only. Not for use in diagnostic procedures. Specifications summarize manufacturer data; confirm current values and the intended-use statement on each product page before purchase. Protocol steps describe standard streptavidin–biotin magnetic-separation methodology and are a general guide, not a substitute for the product's own instructions.
