A western blot imaging system decides what you are able to see before you ever look at the blot. The antibody sets what is on the membrane; the detector sets how much of that faint, decaying light is actually recorded, and whether the bands you measure are still in the range where densitometry means anything. This article compares the three ways laboratories capture chemiluminescent signal — X-ray film, lens-based cooled CCD, and contact imaging — and then looks at what those differences meant in one published hepatocellular carcinoma study.
What a western blot imaging system actually has to do
In chemiluminescent detection, an HRP-conjugated secondary antibody converts a luminol substrate into light at the position of the target protein. That light is faint, it decays over minutes, and on a single membrane it spans a very wide intensity range — an abundant loading control and a low-abundance phosphoprotein can differ by orders of magnitude.
Two hardware limits govern what survives that journey to your image.
Photon collection. Emitted light radiates in every direction. A detector held above the membrane intercepts only the fraction that falls within its aperture, and that fraction shrinks as the working distance grows. Light that misses is simply gone.
Dynamic range. A detector saturates once its pixel wells fill. A blot carrying both strong and faint bands therefore forces a choice: a short exposure that keeps the strong band measurable but loses the faint one, or a long exposure that reveals the faint band while the strong one blocks up and stops being quantitative.
Every workaround researchers use — exposure series, several sheets of film, stripping and reprobing — exists to work around one of those two limits. The detector you choose determines how often you need them.
Film, cooled CCD and contact imaging: three ways to catch the light
X-ray film
Film sits directly against the membrane, so nothing is lost to distance, and its sensitivity for faint signal is genuinely good. Its weaknesses are elsewhere. Film responds to light along a sigmoidal curve rather than a straight line, so densitometry from a film scan is only valid across a narrow window. Each exposure consumes a sheet, which is why capturing both a strong and a faint band usually means three or four sheets and a darkroom. And the output is an analogue object that must be scanned before it becomes data.
Lens-based cooled CCD
A cooled-CCD western blot imager photographs the membrane through a lens, the way a camera does. This solved film's practical problems — the output is digital, linear over a useful range, and immediately quantifiable. But it reintroduced the distance problem. The sensor is small, typically around 1.2 cm², and sits well above the blot, so only the narrow cone of light entering the lens aperture is collected. Everything else is discarded. Cooling is needed to suppress the thermal noise that long exposures would otherwise accumulate, which is why these systems need time to reach temperature before use.
Contact imaging
Contact imaging removes the optical path entirely. A large-format photosensor is placed directly against the membrane, so light is recorded essentially where it is produced, at 1:1 scale, with no lens in between. Because the sensor is comparable in size to the blot, the whole membrane is captured in one frame rather than as a shrunken projection.
The trade-off is worth stating plainly. Because imaging is contact-based and 1:1, the sensor area sets the largest membrane you can image, and the instrument is a blot imager rather than a general-purpose gel documentation camera for stained gels under transillumination. If you need both, you need two instruments or a different choice.
Side by side
| X-ray film | Cooled CCD | Contact imaging | |
|---|---|---|---|
| Light path | Direct contact | Lens, at a distance | Direct contact |

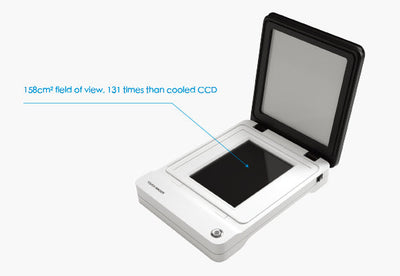

| Detector area | Full membrane | ~1.2 cm² typical | 158 cm² (Touch Imager) |
| Typical exposure | 30–60 s or longer | Tens of seconds | <1 s for >95% of samples |
| Output | Analogue; must be scanned | Digital | Digital |
| Quantification | Narrow valid window (sigmoidal response) | Linear over a useful range | Linear over a wide range |
| Cooling / warm-up | None | Required | None |
| Consumables | Film, developer | None | None |
| Stained gels | No | Often yes | No — membranes only |
On a narrow screen, scroll the table sideways to see all three columns.
Exposure and detector figures for contact imaging are e-BLOT's published specifications for the Touch Imager. Film and CCD entries describe the general behaviour of those detector classes, not any one instrument.
What the difference looks like on a real blot
The comparisons below were published by e-BLOT. They are the manufacturer's own data rather than an independent benchmark, and we present them on that basis — but they show the effect clearly, and the exposure times are stated on each panel.
Keeping bands in the linear range
Sensitivity gets the attention, but for anyone reporting a fold-change, dynamic range matters more. Densitometry assumes that band intensity is proportional to protein amount. That assumption holds only while the detector is responding linearly. Once a band saturates, adding more protein no longer adds signal, and the ratio you calculate from it is wrong — often in the direction that flatters your result, because the loading control saturates first and makes the normalised target look larger.
Full well capacity is the specification that governs this. It describes how much charge a pixel can hold before it saturates, and therefore how wide an intensity range one exposure can record. The Touch Imager is specified at 1,250,000 electrons, which is what allows an abundant loading control and a faint target on the same membrane to be captured in a single frame rather than as a bracketed series.
Two practical habits matter regardless of which system you own. Check the saturation indicator at capture rather than discovering the problem during analysis. And when you report densitometry, say which exposure the numbers came from — a fold-change is only meaningful alongside the image it was measured on.
What this looked like in a published study: MLKL, parthanatos and immune evasion
Detection limits are abstract until a conclusion depends on them. In Jiang et al., Cell Discovery 2023, a group at Fudan University and the Shanghai Institute of Materia Medica reported a role for MLKL that had been hidden by an assumption.
MLKL is known as the executioner of necroptosis, acting downstream of RIPK3. But RIPK3 is intrinsically silenced in hepatocytes, which raised an obvious question: what is MLKL doing in hepatocellular carcinoma, where the pathway it is supposed to execute cannot run?
The answer was that MLKL suppresses a different form of programmed cell death — parthanatos, a PARP1-driven pathway distinct from necroptosis. In HCC cells lacking RIPK3, MLKL maintains endoplasmic reticulum to mitochondrial Mg²⁺ handling. Knocking MLKL out restricted ER Mg²⁺ release, produced mitochondrial oxidative stress, and left the cells markedly more vulnerable to metabolic-stress-induced parthanatos. In mouse models, MLKL-knockout tumours grew more slowly, provoked a stronger anti-tumour immune response, and responded better to immune checkpoint blockade. Blocking PARP1 pharmacologically restored both tumour growth and immune evasion — confirming parthanatos as the mechanism rather than a correlate.
Western blotting carried that argument. The authors imaged PAR polymer accumulation after palmitic acid treatment in knockout versus wild-type cells, cleaved PARP1, and MLKL across knockouts, knockdowns and reconstituted lines. Subcellular fractionation blots for MLKL, calnexin, VDAC and histone H2A placed MLKL in the ER fraction, which is what made the Mg²⁺ model credible.
Two features of that work make demands on a detector. PAR polymer is not a discrete band but a high-molecular-weight smear whose intensity is the readout, so the response has to stay linear across it. And fractionation blots require compartment markers of very different abundance to be legible on the same membrane, or the fractionation itself cannot be verified. The study's methods state that blots were visualised on a Pro e-BLOT Touch Imager according to the manufacturer's instructions.
The paper is open access under CC BY, so the published image quality can be judged directly: read the full text on PMC.
Choosing a western blot imaging system for your lab
The right instrument depends on what constrains your work, not on which specification sheet is most impressive.
- Do you image stained gels as well as blots? If yes, you need a gel documentation system with transillumination. A contact imager will not do this, and no amount of sensitivity changes that.
- Do your blots routinely carry both abundant and low-abundance targets? Then prioritise full well capacity and linear range over headline sensitivity. Saturation, not detection, is what will corrupt your numbers.
- Are your samples precious or hard to repeat? Patient material, primary cells, long differentiation protocols. Here a first-exposure-correct system earns its cost quickly, because a failed blot is not simply repeated.
- How large are your membranes? With contact imaging the sensor area is a hard ceiling. Confirm the usable dimensions for your gel format before committing.
- Is bench space or shared use a factor? No cooling means no warm-up and a smaller footprint; multi-user accounts keep images attributable on a shared instrument.
- Are you replacing film? Then also count the darkroom, the consumables and the scanning step, not only the instrument price.
Whatever the specification sheet says, ask for an evaluation on your own blots. Manufacturer comparison figures — including the ones above — are run on samples chosen to show the instrument at its best. Your lysates are the only fair test.
The system described throughout this article is available from BioHippo as the e-BLOT Touch Imager contact imaging system, quoted individually with installation, training and application support.
Frequently asked questions
How much does a western blot imaging system cost?
Benchtop chemiluminescence imagers span a wide range, and most manufacturers quote rather than list a price, because the figure depends on configuration, region, warranty term and whether installation, training or a service plan is bundled. Published distributor prices are a weak guide to what you will actually pay. Ask for a quote, and ask specifically what is included beyond the box.
How long does western blot imaging take?
It depends on the detector. Film typically needs 30 seconds to several minutes per exposure, plus developing. Cooled-CCD systems need tens of seconds plus a cool-down period before the first image. Contact imaging is the fastest: e-BLOT specifies that more than 95% of samples are imaged within one second on the Touch Imager, with no warm-up. In practice, handling the membrane then becomes the slowest step.
Is a digital imager more sensitive than X-ray film?
Not automatically. Film has genuinely high sensitivity for faint chemiluminescent signal because it sits against the membrane. Where digital systems win is linearity, dynamic range and the fact that the output is data rather than an object to be scanned. A lens-based CCD trades some of film's photon collection for those advantages; contact imaging aims to keep both by removing the lens while staying digital.
What is full well capacity and why does it matter?
It is the amount of charge a pixel can hold before it saturates, and it sets how wide an intensity range a single exposure can record. A larger well capacity means an abundant loading control and a faint target can appear on the same image with both still in the linear range — which is the condition densitometry requires.
Can a contact imager image stained gels?
No. Contact imaging detects light emitted at the membrane surface. Coomassie or silver-stained gels are imaged by transmitted light through the gel, which needs a transilluminator and a lens-based camera. If you need both, budget for two instruments.
What size membrane can a contact imager handle?
The photosensor area sets the limit, because imaging is 1:1 with no demagnification. The Touch Imager's chip is 158 cm². Confirm the usable membrane dimensions for your specific gel format with the supplier before ordering rather than inferring them from the chip area.
