AAV tracing troubleshooting works best when it starts from what you see down the microscope, not from what you did at the bench. You have tissue on the slide and it does not look right — and the fastest route to a cause is to name the symptom first, then run the one test that separates its possible causes. This guide covers nine AAV tracing failure patterns: no signal at all, signal confined to the needle track, faint terminals, spread that is too wide, wrong cell types, unexpected regions, recombinase leak, over-broad transsynaptic labelling, and animal-to-animal variability. Each one lists its causes in order of likelihood, then gives the single test that tells them apart, so you change one thing rather than everything.
Ten-minute AAV tracing troubleshooting triage
Most AAV tracing troubleshooting fails because several variables are changed at once, which makes the result impossible to attribute. Almost every failure falls into one of four groups. Answering these questions in order tells you which group you are in, and that determines which section below to read. Do this before you change any part of the method.
- Is there any signal at the injection site itself? If no, go to Symptom 1. If yes, continue.
- Are the cell bodies bright but the distant terminals faint or missing? If yes, go to Symptom 3. This is the most common single pattern.
- Is the labelled area much larger, or much smaller, than you expected? Larger, go to Symptom 4. Smaller or confined to the needle track, go to Symptom 2.
- Are the labelled cells in the wrong place, or the wrong type? Wrong cell type, go to Symptom 5. Wrong brain region, go to Symptom 6.
Rule these out before you blame the AAV vector
Six checks cost minutes and account for a surprising share of experiments reported as complete failures — the filter set and the needle most of all.
- Filter set and exposure. Green and red channels are easy to mix up on a shared microscope. Image a slide you know is positive, on the same settings, in the same session.
- Fixation strength. Over-fixation quenches fluorescent protein signal. Under-fixation makes tissue fragile and washes signal out during processing.
- Section thickness and mounting. Thin axons in a thick section can sit outside your focal plane entirely.
- Coordinates. Confirm the injection site against an atlas on a counterstained section, not from memory of the surgery.
- Vector handling. Repeated freeze–thaw cycles reduce functional titre. Aliquot on arrival, thaw once, keep on ice, and mix gently rather than vortexing.
- Needle patency. A partially blocked needle delivers far less than the set volume. Check that fluid moves before and after each animal.
If you are reviewing the design rather than the result, the companion guide How to Design an AAV Tracing Experiment covers the same variables at the planning stage, and AAV Tracing: How Anterograde and Retrograde Labelling Work covers the underlying principles. Published step-by-step methodology for anterograde transsynaptic injections is available in Zingg et al., Curr Protoc 2022.
Symptoms 1–3: not enough AAV tracing signal
Symptom 1 — No signal anywhere, including the injection site
- The tissue was collected too early. Nothing will be visible before the vector genome has been converted and transcribed. Check first.
- The vector never reached the tissue. A blocked needle, a leaking syringe, or backflow up the needle track.
- Functional titre was lost in handling. Repeated freeze–thaw, or dilution in an unsuitable buffer.
- The capsid does not transduce this region or this species.
- The promoter is silent in these cells. The vector entered, but the gene was never switched on.
- An imaging problem, not a biology problem. Wrong filter, or exposure far too short.
Change one thing. If staining rescued the signal, keep the vector and add amplification to your standard protocol.
If staining found nothing, run a positive-control injection before you touch anything else in the design: a fresh aliquot of a reporter vector you know has worked before, into the same coordinate, in two animals. The purpose is to separate a vector problem from a surgery problem, because both look identical on the slide. Two animals is the smallest number that gives an interpretable answer — with one animal you cannot tell a single failed surgery from a systematic fault, and with two, disagreement is informative in itself. More animals than that will not tell you anything new at this stage.
| Result | What it means | Do next |
|---|---|---|
| Both animals labelled | Your coordinate, surgery, and tissue processing are all fine. The fault is in your original vector: lost titre in handling, or a capsid that does not transduce this region. | Inject the original vector and the known-good one into the same brain, at two nearby sites, and compare directly. |
| Neither animal labelled | The problem sits outside the vector entirely — placement, delivery, or how the tissue was fixed and imaged. | Reconstruct the coordinate on counterstained sections, then check needle patency and fixation. |
| One of two labelled | Nothing is fundamentally broken; a step is not yet controlled. | Go to Symptom 9 and tabulate the two animals against every difference between them. |
- If your reporter is GFP: Anti-GFP Rabbit Monoclonal Antibody — validated for IHC and IF; a rabbit host avoids the background you get from a mouse primary on mouse tissue
- Anti-GFP Rabbit Polyclonal Antibody — IHC and IF, available unconjugated or directly conjugated
- Known-good reporter for a positive-control injection: scAAV-GFP (AAV9)
- Browse the full antibody range for other reporter epitopes
Symptom 2 — Signal confined to the needle track, or a very small labelled area
- Delivered volume was lower than the set volume. Partial needle blockage, or an air bubble in the line. Check first.
- Injection was too fast, so most of the fluid went back up the track.
- The needle was withdrawn immediately after injection.
- The capsid has a naturally small spread radius in this tissue.
- Mechanical damage at the tip killed the cells that would have expressed.
Symptom 3 — Bright cell bodies, but faint or absent terminals in the target region
This is the pattern most often blamed on the wrong capsid, and it is most often something else. Bright cell bodies prove the vector worked. The question is only why the label has not reached the far end of the axon, or why you cannot see it there.
- Not enough time for filling. Protein reaches distal terminals last, and long projections take longer than short ones. Check first.
- Terminal signal is below your detection limit. Boutons hold far less protein than a soma.
- The section missed the terminal field. Sampling, not biology.
- The projection is genuinely sparse or absent. A real negative result.
- The cargo was never going to fill the axon. Not every reporter distributes through a neuron the same way, and some are designed to sit somewhere other than the terminal.
Cause 5 in detail — check what your cargo is designed to do
A small soluble fluorescent protein such as GFP or mCherry is not tethered to anything. It fills the cytoplasm, so it reaches thin distal axons and boutons, and it is bright per unit volume. This is why soluble reporters are the default for anatomy.
Anything else behaves differently. If your cargo is a fusion protein, a sensor, or an effector, the protein goes where it was engineered to go — and that may not be the terminal. Faint terminals with bright somata is the expected outcome for several common cargoes, not a failure and not a negative result.
One point avoids a common misreading. In every row below except the last, the fluorophore is still an ordinary fluorescent protein. H2B-GFP is GFP joined to a histone; a membrane-targeted reporter is GFP joined to a lipid anchor. The fusion partner changes the address of the protein, not its identity, so anti-GFP staining detects all of them normally. What changes is where the stain appears.
| Cargo type | Where the protein ends up | How to read faint terminals |
|---|---|---|
| Soluble GFP, mCherry, tdTomato | Throughout the cytoplasm, including distal axons | A real detection or timing problem. Continue with the test below. |
| Nuclear-targeted reporter (NLS-GFP, H2B-GFP) | The nucleus only | Expected. Anti-GFP staining works normally here and will make the nuclei brighter, but it cannot reveal terminals, because the protein never enters the axon. Bright stained nuclei with empty axons is a useful positive result: it confirms the vector transduced the cells, and confirms that this construct cannot answer an anatomical question. Add a second vector carrying a soluble reporter. |
| Synaptic protein fusion (e.g. synaptophysin-GFP) | Concentrated at presynaptic terminals | Unexpected, and worth investigating — this cargo should make terminals easier to see, not harder. Suspect delivery or timing. |
| Membrane-targeted reporter (palmitoylated or myristoylated fusion) | The plasma membrane, including axonal membrane | Signal outlines the axon rather than filling it, so it can look thinner and more punctate at low magnification. Increase magnification before concluding anything. |
| Opsin or chemogenetic receptor with a fused fluorophore | The membrane, where the protein must sit to function | Terminals often look fainter than with a soluble reporter, because the signal is confined to the membrane. Functional axon terminals can be present and still hard to see. |
| Genetically encoded calcium indicator | Cytoplasm, but dim at resting calcium by design | Expected. Baseline brightness is deliberately low, so these are poor anatomical tracers. Use a separate soluble reporter for the anatomy. |
| Recombinase with no fluorophore (Cre or Flp alone) | The nucleus, and carrying no fluorescent protein at all | The only row where anti-GFP staining is genuinely useless, because there is no GFP in the construct. Nothing about this vector is visible by reporter staining. Your label has to come from the recombinase-dependent reporter, so read an empty result as a question about that reporter, not about this vector. |
One further point applies to any cargo. A cassette close to the packaging limit tends to express less overall, which lowers signal everywhere and shows up first at the terminals, since they hold the least protein.
Symptoms 4–6: AAV tracing signal in the wrong place
Symptom 4 — The labelled area is much wider than intended, or crosses an anatomical border
- Delivered dose was too high for the structure. Dose here means titre and volume together. Check first.
- Fluid tracked along a white matter tract or a ventricle wall.
- The structure is smaller than the volume you chose.
- The capsid spreads widely in this tissue.
Symptom 5 — The wrong cell types are labelled
Two separate filters decide which cells light up, and they fail in different ways. The capsid decides which cells the vector enters. The promoter decides which of those cells switch the gene on. Identify which filter failed before changing either.
- The promoter is less selective than expected in this region. Selectivity is a strong bias, not a guarantee, and it varies between brain areas. Check first.
- The capsid transduces a broader set of cell types here than the literature suggested.
- Expression is so strong that low-level activity in unintended cells becomes visible.
- The cells are not what you think they are. An identification problem rather than a vector problem.

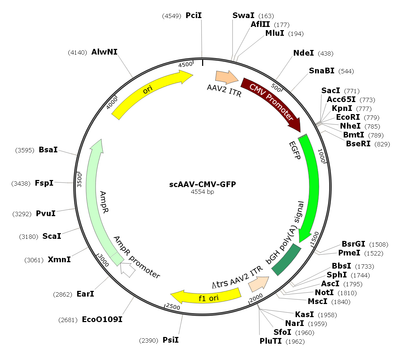

- Broad expression: scAAV-GFP (AAV9, CMV)
- Neuron-restricted, same capsid: scAAV-Synapsin-GFP (AAV9)

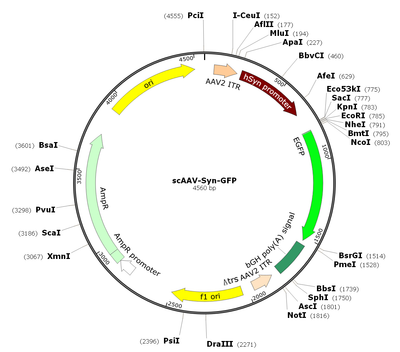

- Different capsid, same promoter: scAAV-Synapsin-GFP (AAV-DJ)
Changing capsid and promoter in the same experiment makes the result uninterpretable. Change one, then the other.
Symptom 6 — Labelled cells appear in regions that should not be labelled
Before treating this as a discovery, exclude the three routes by which a label can arrive somewhere you did not intend.
- The injection site is larger than you think, and includes a neighbouring structure. Check first.
- Uptake in the direction you did not intend. Several capsids show some transport opposite to their main direction, and this becomes more visible at high dose. Purpose-built retrograde vectors such as rAAV2-retro exist precisely because ordinary serotypes do this only weakly and inconsistently (Tervo et al., Neuron 2016).
- Vector leaked into cerebrospinal fluid or the bloodstream along the needle track, and was then taken up elsewhere.
- The connection is real and simply not yet described. The least likely explanation, and the one to test last.
Symptoms 7–9: recombinase background and animal-to-animal variability
Symptom 7 — A Cre-dependent reporter expresses in animals that received no Cre
- Background expression from the inverted construct itself. No recombinase-dependent design is perfectly silent, and a strong promoter makes background easier to see. Check first.
- Dose of the reporter vector is high enough to make low background visible.
- Unintended recombinase activity in the animal line.
- Sample or vector mix-up between groups. Uncomfortable, but common enough to check.
Symptom 8 — A transsynaptic experiment labels far more regions than expected
- The injection site includes more than the intended source region. Check first.
- Retrograde labelling mixed in with the intended forward spread. AAV1 was originally characterised as an anterograde transsynaptic tracer (Zingg et al., Neuron 2017), and a weaker reverse component is reported for it (Zingg et al., J Neurosci 2020).
- Dose high enough that non-synaptic uptake becomes visible.
- Genuinely broad connectivity. Spread through this route depends on the pathway, and not all pathways behave the same way.
Symptom 9 — It works in some animals and not in others
Variability is a result in itself. It usually points to a step that is not yet controlled, rather than to a fundamental problem with the vector.
- Injection site placement varies between animals. Reconstruct the site for every animal, including the ones that worked. Check first.
- Delivered volume varies. Intermittent partial blockage produces exactly this pattern.
- Aliquots differ. One tube thawed more times than another.
- Surgery day, operator, or animal age differ across the cohort.
- Genetic background differs. Capsid performance can depend on strain, so a substitution in the colony matters (Hordeaux et al., Mol Ther 2019).
Three AAV tracing troubleshooting fixes that usually make things worse
Raising the titre
This is the most common first response and it rarely solves a detection problem. A higher dose enlarges the injection site, increases uptake in unintended directions, and can add toxicity. It converts a signal problem into an interpretation problem. Try amplification and longer survival first.
Switching capsid immediately
Changing capsid changes tropism, spread radius, and direction all at once. If the true cause was survival time or detection sensitivity, the new capsid appears to fix it, and you learn nothing about the real cause. It will fail again later, in a different experiment.
Assuming an absent projection is a finding
A negative result becomes publishable only after amplification, adequate survival time, and complete sampling of the target region. Before that, absence of signal and absence of projection cannot be distinguished.
AAV tracing troubleshooting quick-reference table
This table condenses the sections above. Use it when you already know which symptom you have and want the shortest route to a cause.
| What you see | Fastest test | Most likely cause |
|---|---|---|
| Nothing at all | Stain for the reporter protein | Collected too early, or the vector never arrived |
| Needle track only | Look at the shape of the labelled area | Backflow, or low delivered volume |
| Somata bright, terminals faint | Stain for the reporter, then extend survival time | Detection limit, or not enough time |
| Spread too wide | Follow the site across serial sections | Dose too large for the structure |
| Wrong cell type | Co-stain, then swap the promoter alone | Promoter less selective here than expected |
| Unexpected regions labelled | Inject the off-target control site | Oversized site, or reverse-direction uptake |
| Reporter without recombinase | Compare at matched exposure | Construct background, made visible by dose |
| Inconsistent across animals | Tabulate every animal and sort by outcome | Site placement or delivered volume varies |
In every row, change one variable and repeat in two animals before changing a second.
When AAV tracing troubleshooting should become redesign
AAV tracing troubleshooting has a limit. Some results do not improve because the approach cannot answer the question as posed. These signs mean it is time to change the design rather than the parameters.
- You have changed three or more variables and still cannot predict the outcome. Stop, return to the last condition that behaved consistently, and change one thing at a time from there.
- Your question needs more than one synaptic step. Forward spread through this approach reaches first-order connected neurons (Zingg et al., J Neurosci 2020). Multi-step questions need a different tracing system.
- You need a synaptic strength measurement. Density of labelled terminals does not provide one. That requires a physiological recording.
- The capsid advantage you relied on does not exist in your model. Enhanced transport across the blood–brain barrier by the PHP.B capsid family depends on the host protein LY6A and is limited to particular mouse backgrounds, notably C57BL/6J (Hordeaux et al., Mol Ther 2019; Hordeaux et al., Mol Ther 2018). No amount of optimisation replaces a capsid that does not work in your animal.
- Your cargo exceeds what the vector can package. A cassette above the limit produces truncated, unreliable expression that looks like a delivery failure.
AAV tracing troubleshooting FAQ
I see no GFP signal after my AAV injection. What should I check first?
Check detection before biology. Image a known-positive slide on the same settings to confirm the filter and exposure, then stain the sections with an antibody against your reporter — anti-GFP here, or anti-mCherry and anti-RFP for red reporters. If staining reveals signal that native fluorescence missed, the vector worked and the issue is expression level. If staining reveals nothing, look at delivery: needle patency, aliquot handling, and whether the capsid transduces your region at all.
Should I increase the titre if my AAV tracing signal is weak?
Not as a first step. A higher dose widens the injection site and increases uptake in directions you did not intend, so it often replaces a weak-signal problem with an interpretation problem. Amplify by immunostaining first, then extend the survival time, then increase how densely you sample the target region.
How do I know whether an absent projection is real?
Three conditions must be met before absence is a finding: the sections were stained for the reporter rather than imaged by native fluorescence alone, the survival time was long enough for distal filling, and the whole target region was sectioned rather than sampled. Until all three hold, you cannot separate no signal from no projection.
My Cre-dependent reporter shows signal in the no-Cre group. Is the vector faulty?
Usually not. Recombinase-dependent constructs have some background expression, and a high reporter dose makes it visible. Lower the reporter dose, then define an intensity threshold from the no-recombinase group and apply it to every animal.
Why does the same AAV work in one mouse line but not another?
Capsid performance can depend on host genetics. The clearest documented case is the PHP.B family, whose enhanced entry into the brain requires the GPI-anchored host protein LY6A; that haplotype differs across mouse backgrounds and the phenotype was not reproduced in BALB/cJ mice or non-human primates (Hordeaux et al., Mol Ther 2019; Hordeaux et al., Mol Ther 2018). Confirm capsid performance in the exact line you are using.
How many animals should I use when testing a fix?
Two is usually enough to tell whether a change moved the result, and it keeps animal use low while you are still diagnosing. Commit a full cohort only once one condition gives a consistent outcome in both animals.
Diagnose once, then change one thing
Most of the symptoms above are resolved by an antibody and two more animals, not by a new vector. If you have narrowed the cause and need a matched reporter, a different promoter on the same capsid, or a control vector for the group you are missing, browse the AAV Vector Research range or the full Adeno-Associated Viruses (AAVs) catalog, or talk to a BioHippo technical specialist who can help you identify it and keep the rest of the design unchanged.
References
- Tervo DGR, Hwang BY, Viswanathan S, et al. A designer AAV variant permits efficient retrograde access to projection neurons. Neuron. 2016;92(2):372–382. PubMed 27720486 · doi:10.1016/j.neuron.2016.09.021
- Zingg B, Chou XL, Zhang ZG, Mesik L, Liang F, Tao HW, Zhang LI. AAV-mediated anterograde transsynaptic tagging: mapping corticocollicular input-defined neural pathways for defense behaviors. Neuron. 2017;93(1):33–47. PubMed 27989459 · doi:10.1016/j.neuron.2016.11.045
- Zingg B, Peng B, Huang J, Tao HW, Zhang LI. Synaptic specificity and application of anterograde trans-synaptic AAV for probing neural circuitry. J Neurosci. 2020;40(16):3250–3267. PubMed 32198185 · doi:10.1523/JNEUROSCI.2158-19.2020
- Hordeaux J, Yuan Y, Clark PM, et al. The GPI-linked protein LY6A drives AAV-PHP.B transport across the blood-brain barrier. Mol Ther. 2019;27(5):912–921. PubMed 30819613 · doi:10.1016/j.ymthe.2019.02.013
- Hordeaux J, Wang Q, Katz N, Buza EL, Bell P, Wilson JM. The neurotropic properties of AAV-PHP.B are limited to C57BL/6J mice. Mol Ther. 2018;26(3):664–668. PubMed 29428298 · doi:10.1016/j.ymthe.2018.01.018
- Zingg B, Dong HW, Tao HW, Zhang LI. Application of AAV1 for anterograde transsynaptic circuit mapping and input-dependent neuronal cataloging. Curr Protoc. 2022;2(1):e339. PubMed 35044725 · doi:10.1002/cpz1.339
- Rezai Amin S, Gruszczynski C, Guiard BP, et al. Viral vector-mediated Cre recombinase expression in substantia nigra induces lesions of the nigrostriatal pathway associated with perturbations of dopamine-related behaviors and hallmarks of programmed cell death. J Neurochem. 2019;150(3):330–340. PubMed 30748001 · doi:10.1111/jnc.14684
