Experimental controls, sampling time and readout range are the three things that decide whether a detection experiment produces an interpretable result — and all three are fixed before the first well is treated. In experimental terms a “signal” is simply a measured difference between a condition and its matched baseline, which means a signal only exists relative to controls, only appears inside a kinetic window, and only registers if the readout has the range to resolve it.
The common failure patterns are familiar. A band appears but there is no way to say it is specific, because no condition in the experiment was expected to lack it. A transient phosphorylation event is sampled after it has already decayed, and the conclusion becomes “no activation” when the honest reading is “wrong time point.” A real two-fold change disappears into a saturated exposure or the flat top of a standard curve. None of these are detection-chemistry problems, and each is fixed at the planning stage for the cost of a few extra wells.
This note lays out a five-phase workflow, then goes deep on the three planning decisions in the title. It uses cell-stimulation experiments — a ligand, a pathway, an induced or secreted product — as the running example, with catalog anchors from the BioHippo antibody, ELISA, recombinant protein and biochemical ranges. Every product named below was checked against the live catalog on 2 September 2026.
A Signal Detection Workflow in Five Phases
Work through these in order. Each phase constrains the next, which is why choosing a readout first — the most common shortcut — so often forces the controls and timing to be retrofitted later.
- Define the signal and its contrast. Write one sentence: “I expect [measured quantity] to change in [treated condition] relative to [baseline condition].” If the baseline half of that sentence is vague, stop here — the baseline is the signal’s denominator, and everything downstream follows from what the contrast actually is.
- Build the control set. Decide, before treating anything, which conditions will prove the signal is real, specific, and not an artifact of handling.
- Map the timing. Match sampling windows to the class of event — phosphorylation in minutes, transcripts in the first hours, protein accumulation and secretion over many hours. If the kinetics are unknown, budget a pilot time course before the definitive run.
- Choose the readout. Pick the platform whose strengths match the question, then confirm its dynamic range covers the expected fold-change.
- Pilot, then lock the protocol. Fix stimulus dose, time points, lysate load or sample dilution, and exposure settings in a small pilot — then freeze them. Changing exposure times or dilutions between replicates converts a biological-variation question into an unanswerable technical one.
The Five Classes of Experimental Controls
Each class of experimental control answers exactly one question about the signal. Plan them as a set — a plate map or gel layout drawn before the experiment — rather than adding them reactively when a reviewer or a confusing blot demands it.
1. Baseline and vehicle control — the stimulus, or the solvent and the handling?
Run both an untreated baseline and a vehicle control that receives everything except the active stimulus: the same solvent (for example DMSO at the identical final concentration), the same media change, the same handling at the same time. Many “signals” are really responses to a media change or a solvent, and the vehicle condition is what separates them from the biology. Keep vehicle solvent concentrations low and constant across doses. If skipped: any observed change is confounded with solvent and handling effects, and dose–response comparisons silently vary two things at once.
2. Positive control — can this detection chain see a signal at all?
Include one condition where the signal is known to appear: a validated stimulus at a validated dose, a lysate from a known-responsive cell line, or a recombinant standard spiked at a detectable level. A blank result without a positive control is uninterpretable — it cannot distinguish “no biology” from “broken assay.” This is the single control most often missing from experiments that end in a shrug. If skipped: a negative result cannot be distinguished from assay failure — wrong antibody dilution, degraded stimulus, dead detection reagent.
Catalog anchors — reference stimuli:

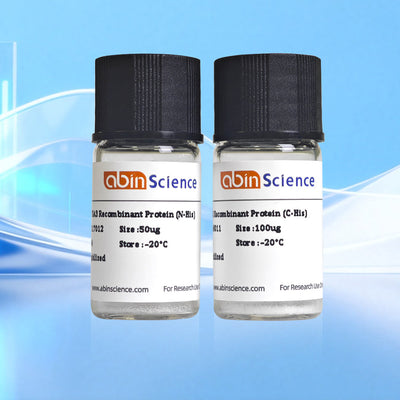

- Recombinant Human TNFa/TNF-alpha Protein, C-Strep (HF879031)
- Recombinant Human EGF Protein, N-GST (HF557022)
Recombinant proteins are produced with different tags and for different purposes. Before using any recombinant ligand as a live-cell stimulus, confirm on its product page that the format, stated activity and endotoxin specification suit cell-based work.
3. Specificity control — is the signal coming from the pathway you think it is?
A signal is specific when a condition that should abolish it actually does. The two workhorse approaches are pharmacological — pre-treat with a selective inhibitor upstream of your readout and show the signal collapses — and genetic, using a knockout or knockdown line as a true-negative sample. For the canonical growth-factor example, the MEK1/2 inhibitor U0126 (U-400) blocks ERK1/2 phosphorylation downstream of receptor activation, so a stimulus + U0126 lane that still lights up tells you the band is not what you think it is. If skipped: off-target antibody binding and pathway crosstalk are indistinguishable from the real signal, and a striking result may not survive replication.
4. Technical controls — is the readout itself behaving?
These are platform-specific and are covered in detail in the next section. The principle is the same everywhere: every reagent that can generate signal on its own deserves one condition that isolates it. If skipped: uneven loading masquerades as regulation, and background is silently counted as signal.
5. Time-matched controls and replication structure — is the comparison fair?
In a time course, harvest an untreated control at each time point, not only at t = 0 — confluence, media exhaustion and circadian drift move baselines on their own over hours. Decide the replication structure up front: biological replicates (independent passages or days) estimate the variability your conclusion actually rests on, while technical replicates (duplicate wells or lanes) only estimate pipetting error. Reporting n = 3 technical replicates as if they were biological is one of the quieter ways a signal fails to reproduce. If skipped: baseline drift reads as a treatment effect, and error bars understate the real variability.
Western Blot Controls: Loading Control, Secondary-Only Lane and Blanks
Technical controls are where platform detail matters. For blots, two conditions do most of the work. A western blot loading control — GAPDH or another housekeeping protein — shows that lanes were loaded and transferred evenly; confirm first that your treatment does not itself change the housekeeping protein’s expression, which is a real risk with metabolic, hypoxic and long-duration treatments. And whenever a new primary antibody enters the experiment, run a secondary-only lane: primary omitted, everything else identical. Any band that appears there is nonspecific secondary binding and would otherwise have been read as signal.
For plate assays the equivalents are substrate blanks and buffer-only wells, which establish the background floor, plus the kit’s standards run on every plate rather than once per experiment.
Catalog anchors — blot technical controls:

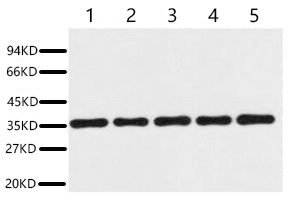

- Anti-GAPDH Rabbit Polyclonal Antibody (ABL1021) — loading control
- HRP Conjugated Anti-GAPDH Mouse Monoclonal Antibody (2B5) (ABL1025) — one-step loading control
- HRP Conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) (BA1054) — secondary, and the reagent for the secondary-only lane
Timing: The Sampling Window Decides Whether the Signal Exists for You
Different classes of biological signal live on very different clocks, and sampling outside the window is functionally the same as the signal never happening. Treat the ranges below as pilot starting points to refine in your own system, not as published kinetics.
| Signal class | Typical window after stimulus | Planning implication |
|---|---|---|
| Receptor-proximal phosphorylation (e.g. phospho-ERK1/2) | Minutes; often peaks within ~5–15 min and can decay substantially within the first hour | Sample densely and early; pre-chill the lysis workflow so harvest time is exact |
| Transcription-factor activation / immediate-early transcripts | Tens of minutes to ~2 h | Plan RNA-compatible harvests; a single late point misses the wave |
| Induced protein accumulation | Hours; commonly ~6–24 h or longer to reach detectable levels | Early sampling under-calls induction; pair with a phospho or transcript point to confirm upstream activation |
| Secreted protein in supernatant (e.g. IL-6) | Accumulates over hours; supernatant integrates release since the last media change | An ELISA of media measures cumulative output, not an instantaneous rate — fix the media-change schedule in the protocol |
Transient versus sustained is itself the biology
Signal duration is not a nuisance variable — it can be the message. The classic demonstration is in PC12 cells, where the same ERK pathway drives different cell fates depending on whether its activation is transient or sustained, which means a single time point cannot characterise the response at all.1 If your hypothesis touches “how strongly” a pathway is activated, the timing plan needs to answer “for how long” as well.
When the kinetics are unknown: the log-spaced pilot time course
Run one pilot arm with roughly log-spaced time points — for a signalling stimulus: 0, 5, 15, 30, 60 min, then 3–6 h; for induction or secretion: 0, 2, 6, 24, 48 h — using your positive-control stimulus. The pilot locates the peak and the decay; the definitive time course experiment then brackets the peak with tighter spacing. Two practical details prevent the most common timing artifacts: harvest so that t = 0 is a genuinely unstimulated sample processed identically to the rest, and stagger stimulation start times so every condition experiences the same interval between harvest and lysis or fixation.
Catalog anchors — kinetic (phospho-state) detection:
- Phospho-ERK1/2 Antibody [p-ERK1/2] (T202/Y204) (F48590)
- Phospho-ERK1/2 Antibody (Thr202/Tyr204) (F54044)
A phospho-specific antibody is only as good as its validation — confirm the validated applications and species reactivity on each product page, and pair every phospho blot with a total-protein blot for the same target so the phospho signal can be normalised.
ELISA vs Western Blot: Choosing the Readout
This note anchors on the two immunodetection readouts most stimulus-response experiments end in. The same matching logic — question → platform → dynamic range — applies to qPCR, reporter assays, flow cytometry and imaging, which are outside its scope.
| Western blot + ECL | ELISA | |
|---|---|---|
| Core strength | Identity (molecular weight) and modification state (phospho-specific detection) | Quantification against a standard curve, in complex matrices |
| Output | Semi-quantitative band intensity, normalised to loading and total protein | Concentration (pg/mL–ng/mL) per well |
| Best matched to | “Is the pathway activated, and is the band the right protein?” | “How much of the analyte is there, and how does it change?” |
| Sample | Lysates — a snapshot of intracellular state at harvest | Supernatant (cumulative secretion) or lysate; serum and plasma for in vivo work |
| Main dynamic-range trap | Exposure saturation — a maxed-out band caps every fold-change at its ceiling | Readings off the top or bottom of the standard curve; dilution linearity unverified |
Protect the dynamic range
Whatever the platform, the readout must have headroom above the strongest expected signal and resolution above the background floor. For ECL blots, capture an exposure series and quantify only unsaturated exposures. For ELISA, pilot the sample dilution so treated samples land mid-curve, and check that serial dilutions read back linearly. When the analyte sits near a standard assay’s detection floor, a high-sensitivity kit changes what is measurable at all — the trade-offs are covered in the BioHippo high-sensitivity ELISA selection guide.
Only when a detection protocol graduates into a many-plate screen does formal assay-quality statistics enter: the Z′-factor combines the separation between positive and negative controls with their variability into a single screening-suitability score, and it is the standard gate before committing a library to an assay.2 For ordinary bench experiments, well-separated positive and negative controls with tight replicates carry the same logic without the formalism.
Catalog anchors — readout reagents:
- Enhanced ECL Chemiluminescent Substrate Kit (36222ES60) — blot detection
- U-Blot® MaxSignal ECL Solution (W2501) — blot detection

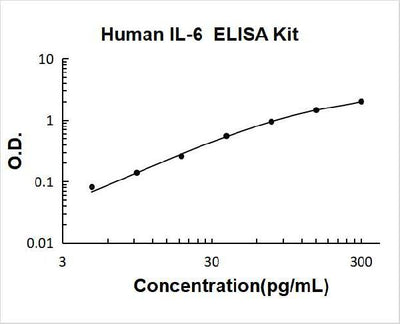

- Human IL-6/Interleukin-6 ELISA Kit PicoKine® (EK0410) — secreted-analyte quantification

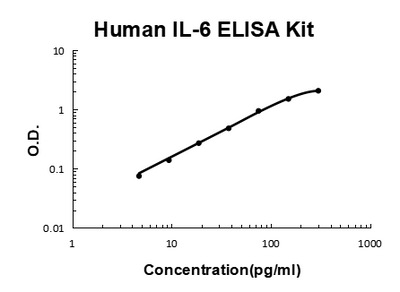

- Human IL-6 PicoKine® Quick ELISA Kit (FEK0410) — faster protocol, same target
Failure Modes Traced Back to the Missing Experimental Control
When a detection experiment misbehaves, the symptom almost always points back to one of the three planning pillars. Diagnose by design element before re-optimising chemistry.
| Symptom | Most likely planning gap | Fix in the next run |
|---|---|---|
| No signal anywhere, including where expected | No positive control — assay failure and true negative are indistinguishable | Add a validated stimulus, known-positive lysate or spiked standard |
| Signal in every condition, including negatives | Specificity and technical controls missing | Add a secondary-only lane, a substrate blank, and an inhibitor or knockout condition |
| Signal present but fold-change will not repeat | Sampling on a steep kinetic slope; replicates not truly biological | Re-centre time points on the pilot peak; replicate across passages or days |
| Big biology, small measured change | Readout saturated — over-exposure or top of the standard curve | Run an exposure series; re-pilot dilutions to land mid-curve |
| “Baseline” changes across a time course | Only a t = 0 control; vehicle or media effects unaccounted for | Time-matched untreated and vehicle controls at every harvest |
Planning Checklist and Catalog Anchors
| Planning element | Reagent class | Verified example |
|---|---|---|
| Positive-control stimulus | Recombinant ligands (confirm cell-based suitability on the product page) | Recombinant Human TNF-alpha, C-Strep · Recombinant Human EGF, N-GST |
| Specificity control | Pathway inhibitors | U0126 (MEK1/2 inhibitor) |
| Kinetic detection | Phospho-specific antibodies | Phospho-ERK1/2 (T202/Y204) |
| Western blot controls | Loading control and HRP secondary antibodies | Anti-GAPDH Rabbit pAb · Goat Anti-Rabbit IgG, HRP |
| Blot readout | ECL substrates | Enhanced ECL Substrate Kit · U-Blot® MaxSignal ECL |
| Quantitative readout | ELISA kits | Human IL-6 ELISA Kit PicoKine® · full ELISA catalog |
Experimental Controls FAQ
What experimental controls does a detection experiment need at minimum?
Four conditions: an untreated baseline, a vehicle control, a positive control that proves the detection chain works, and at least one specificity condition (an upstream inhibitor or a knockout/knockdown sample) that should abolish the signal. Platform-level technical controls — loading controls and secondary-only lanes for blots, blanks and standards for plate assays — sit on top of those.
What is a vehicle control, and when do I need one?
A vehicle control receives the solvent and every handling step of the treated condition but not the active stimulus. You need one whenever the stimulus is delivered in anything other than plain culture medium — DMSO, ethanol, a carrier protein buffer — and whenever treatment involves a media change. Keep the solvent concentration identical and constant across every dose.
Which western blot loading control should I use?
Pick a housekeeping protein whose expression your treatment does not change, and confirm that assumption rather than assuming it — GAPDH, for example, is regulated by hypoxia and by several metabolic treatments. Match the molecular weight so the control band is well separated from your target, and consider total-protein normalisation as a cross-check when the treatment is long or metabolically disruptive.
Western blot or ELISA for my detection experiment?
They answer different questions. A western blot with ECL detection confirms identity by molecular weight and resolves modification state with phospho-specific antibodies, but is only semi-quantitative. An ELISA gives a concentration against a standard curve and is the natural readout for secreted analytes in supernatant or serum. Many stimulus-response studies use both: the blot to establish pathway activation, the ELISA to quantify the downstream product.
How do I choose time points when I don’t know the kinetics?
Run a log-spaced pilot time course with your positive-control stimulus — minutes-to-an-hour spacing for phosphorylation events, hours-to-days for induction and secretion — then design the definitive experiment to bracket the observed peak with tighter spacing. Include a time-matched untreated control at every harvest, not just at t = 0.
How many replicates does a detection experiment need?
The number that matters is biological replicates — independent passages, days or animals — because they estimate the variability your conclusion generalises over. Technical replicates only measure pipetting precision. Three biological replicates is a common working minimum for a clear effect; noisier signals or smaller fold-changes need more, which is exactly what the pilot’s control separation tells you.
My analyte reads “below detection” in the treated condition. Is the experiment dead?
Not necessarily — “not detected” often means the assay ran out of resolution, not that the analyte is absent. Before redesigning the biology, check whether a high-sensitivity version of the assay exists for your target: lowering the detection limit can turn blanks into measurable values. The high-sensitivity ELISA guide covers when that upgrade changes the result and when a standard kit is the better buy.
Design the Experiment Once, on Paper
The cheapest place to fix a detection experiment is the plate map. If you are scoping experimental controls, stimuli or readout kits for a specific target and cell system, a BioHippo technical specialist can help match validated reagents to each element of the plan before anything is ordered. Talk to a specialist or request a quote.
References
- Marshall CJ. Specificity of receptor tyrosine kinase signaling: transient versus sustained extracellular signal-regulated kinase activation. Cell. 1995;80(2):179–185. PMID 7834738. doi:10.1016/0092-8674(95)90401-8
- Zhang JH, Chung TDY, Oldenburg KR. A simple statistical parameter for use in evaluation and validation of high throughput screening assays. J Biomol Screen. 1999;4(2):67–73. PMID 10838414. doi:10.1177/108705719900400206
Timing windows and control recommendations summarise standard stimulus-response methodology and should be piloted in each cell system. Confirm validated applications, species reactivity, activity and intended-use statements on every product page before purchase; recombinant ligands in particular vary in tag format and suitability for cell-based stimulation. All figures are illustrative schematics, not experimental data.
