Why Your Western Blot Optimisation Experiment Isn't Working

Western blot troubleshooting begins the moment a membrane comes out blank, faint, grey, or covered in bands you cannot explain. The hard part is that "not working" is a symptom, not a diagnosis: a western blot is a chain of eight dependent steps, and the membrane in your hand tells you the chain broke somewhere without telling you where. This guide gives you a four-step way to localise the failure using controls you already have, then walks the common problems symptom by symptom and names the single change to try first for each one.

Western Blot Troubleshooting Starts by Localising the Broken Step

Lysis, quantification, electrophoresis, transfer, blocking, primary antibody, secondary antibody, detection — eight steps, each dependent on the one before it. Most wasted weeks in western blot optimisation come from changing the primary antibody dilution when the real fault was a dead secondary, or from re-running the gel when the transfer was the problem. Published methodology reviews make the same point: confidence in a blot comes from the controls, not from the band.¹

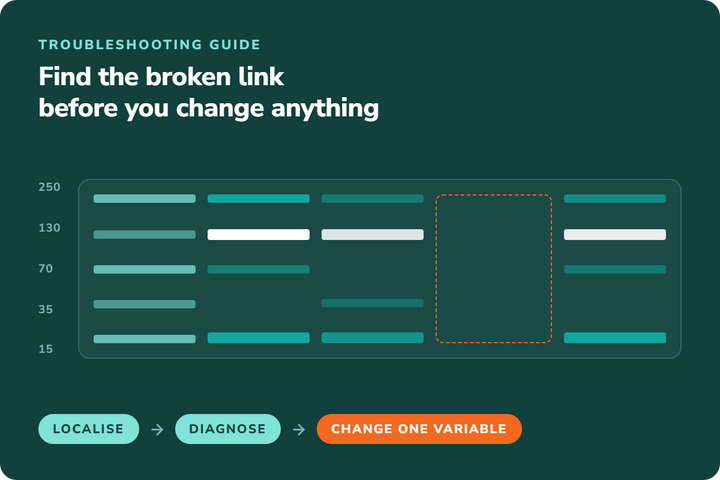

This guide is built around one rule: find the broken link before you change anything.

Four Questions That Localise a Failed Western Blot

Work through these in order. Each uses a control that should already be on your gel or membrane. Stop at the first "no" — that is the step to fix, and nothing downstream of it can be evaluated until it works.

1. Can you see the prestained ladder on the membrane after transfer?

If the ladder is absent or smeared, the problem is upstream of any antibody: electrophoresis or transfer. Check that current actually flowed, that the gel was not reversed, and that the sandwich was assembled with the gel on the cathode side and the membrane toward the anode. A prestained protein ladder is a transfer control that costs nothing: if it reached the membrane, proteins in its size range did too.

2. Does Ponceau S show protein in every lane, evenly?

Immediately after transfer and before blocking, stain the membrane for one minute in Ponceau S, rinse briefly in distilled water until the background clears, and photograph it. Blank lanes mean transfer failed or the sample was never there (lysis, quantification, or loading error). Uneven lanes mean a loading or quantification problem that will invalidate any downstream comparison. White spots mean air bubbles.

Removing the stain: Ponceau must be washed off before blocking. Destain in distilled water or TBST with gentle agitation, two to three changes of one to two minutes each, until the membrane is white again. Faint pink traces on strong bands are harmless; a membrane that is still pink will raise background and can interfere with antibody binding. If the dye is slow to clear, a short wash in 0.1 M NaOH or in TBST with extra Tween-20 strips it. Do not let the membrane dry at any point, then go straight into blocking.

3. Does the loading control give a band?

If a GAPDH, β-actin, or tubulin band appears, your entire detection chain — secondary antibody, HRP activity, substrate, imager — is working, and the fault is specific to the target antibody or the target protein. If it does not, the chain is broken somewhere after transfer, and the target antibody is not the first thing to change. A loading control is a positive control for detection, not just a normaliser.

4. Does the target band appear in a positive-control lane?

Run a lysate known to express the protein: an overexpression lysate, a recombinant protein, or a validated cell line. If the target shows up in the control but not in your samples, the antibody works and the biology or sample preparation is the issue. If it shows up nowhere, the antibody or its conditions are the problem. Without a positive control you cannot tell "the antibody doesn't work" from "my cells don't express this" — and those have completely different fixes.

Western Blot Problems by Symptom: No Bands, Weak Signal, High Background

No signal anywhere, including the loading control

A completely blank membrane with a good Ponceau stain is almost never a problem with your target primary antibody. The loading control is detected by its own, independent primary; if the target primary were at fault, the loading-control band would still be there. When two unrelated primaries both give nothing, the fault lies in the step they share: the secondary antibody, HRP activity, the substrate, or the imager.

Two exceptions. If the loading control is a directly HRP-conjugated antibody, it bypasses the secondary, so a blank there points at substrate or imaging. And if the loading-control primary is new or has never worked in your hands, it is not yet a positive control, so both primaries stay on the suspect list until one is proven with a dot blot or a known-good lysate.

• Secondary antibody species mismatch. A rabbit primary with an anti-mouse HRP secondary gives nothing. Check the host species on the primary datasheet against the secondary's target.
• HRP inactivated by sodium azide. Azide is a potent HRP inhibitor. If any buffer in contact with the secondary contains azide, chemiluminescence dies.
• Substrate expired, light-exposed, or mixed too early. ECL components lose activity once combined; peroxide components degrade with time and light.
• Membrane dried out at any point after transfer. Dried nitrocellulose or PVDF loses antigen accessibility and binds antibody irreversibly.
• Imaging. Exposure too short, wrong channel, or the membrane placed protein-side down.

Try first: run a dot blot. Spot 1 µL of your secondary antibody directly on a membrane scrap, add substrate, and image. Signal proves HRP and substrate are alive; no signal isolates the fault to the secondary, substrate, or imager in a ten-minute experiment.

Loading control is fine, target band is absent

The detection chain works. The problem is the primary antibody, the amount of target on the membrane, or whether the target survived sample preparation and transfer.

• Antibody not validated for western blot. Many antibodies recognise native epitopes (ELISA, IHC, flow cytometry) and fail on SDS-denatured protein. Confirm that "WB" appears in the validated applications on the datasheet.
• Target below detection. Low-abundance proteins — transcription factors, signalling intermediates, receptors — may need 50–100 µg of lysate, an enrichment step, or immunoprecipitation before blotting.
• Primary too dilute or incubation too short. Datasheet ranges are starting points; a 1:1000 recommendation may need 1:250 for a weakly expressed target, and overnight at 4 °C often beats one hour at room temperature.
• Protein not expressed, or degraded. Confirm the cell line or tissue expresses the target. Lyse on ice with fresh protease inhibitors — and phosphatase inhibitors for phospho-targets — and avoid repeated freeze–thaw of lysates.
• Wrong lysis buffer. Membrane, nuclear, and cytoskeletal proteins often need stronger detergent (RIPA rather than NP-40) or sonication to release.
• Transfer failed for that size class. Proteins above roughly 150 kDa transfer poorly under standard conditions — drop the methanol, add 0.05% SDS, extend wet transfer. Proteins below roughly 20 kDa can transfer straight through the membrane; use a 0.2 µm pore size and a shorter transfer. The ladder can look perfect while your target did not move.
• Blocking agent masking the epitope. Non-fat milk contains casein, a phosphoprotein, and can obscure phospho-epitopes; switch to BSA for phospho-specific antibodies.

Try first: add a positive-control lane and run a strip-blot titration of the primary at three dilutions — for example 1:250, 1:1000, and 1:4000 — on the same membrane. One run tells you whether the antibody can see the protein at all, and at what concentration.

Weak signal

Faint bands share every cause above, in milder form. Before reaching for a more sensitive substrate, rule out the cheaper fixes: too little protein loaded, primary or secondary too dilute, incubations too short or too cold, over-washing or washes too stringent, substrate sensitivity mismatched to target abundance, partial transfer, or old and repeatedly freeze–thawed antibody aliquots.

Try first: increase the primary concentration one step and incubate overnight at 4 °C while holding everything else constant. If the band improves proportionally, keep titrating; if it does not, the limit is abundance or transfer, and more antibody will only add background.

High background

Dark, hazy, or uniformly grey membranes usually mean too much antibody, too little blocking, or too little washing. PVDF is more prone to background than nitrocellulose because of its higher binding capacity.

• Primary or secondary too concentrated. The most frequent cause. HRP secondaries in particular are often used at 1:1000 when 1:10,000–1:20,000 is appropriate.
• Insufficient blocking — too short, too dilute, or the wrong agent for the antibody.
• Inadequate washing — too few washes, too short, or no detergent (use 0.05–0.1% Tween-20 in TBST).
• Membrane dried during an incubation, or too little antibody volume to keep it submerged.
• Secondary cross-reactivity with sample proteins — common with anti-mouse secondaries on mouse tissue, or with IgG in serum-containing samples.
• Contaminated or old buffers, particularly milk-based blockers left at room temperature.
• Over-exposure. A long exposure will always find background eventually.

Try first: run a secondary-only control lane with no primary. If background persists, the secondary or the blocking is at fault; if it disappears, the primary is too concentrated or cross-reacting. Then dilute the secondary before you touch anything else.

Multiple Bands and Bands at the Wrong Molecular Weight

Extra bands are not automatically "non-specific." Some are biology — isoforms and post-translational modifications; some are artefacts — degradation or aggregation; some are cross-reactivity. The pattern tells you which.

• Bands above the expected size: post-translational modification (glycosylation, ubiquitination), dimers or aggregates from incomplete reduction — use fresh DTT or β-mercaptoethanol and heat at 95 °C for 5 min, or 70 °C for 10 min for membrane proteins — or larger splice isoforms.
• Bands below the expected size: proteolytic degradation, shorter isoforms, or cleavage products.
• Bands at approximately 50 and 25 kDa in immunoprecipitated samples: IgG heavy and light chains from the IP antibody, detected by the secondary.
• Primary too concentrated, driving low-affinity binding to off-target proteins. Polyclonals are more prone to this than monoclonals or recombinant antibodies.

Try first: dilute the primary one step and see which bands drop out first — cross-reactive bands fade before the true band. To confirm identity definitively, run a knockout or knockdown lysate, or a peptide-competition control; the true band disappears and the artefacts do not.

When the band is at the wrong molecular weight

Calculated molecular weight from sequence is a guideline, not a rule. Proteins routinely run 10–30% away from their predicted mass, and a prestained ladder is itself only approximately calibrated — typically to within ±10%. Glycosylation and phosphorylation increase apparent size; signal-peptide cleavage decreases it. Highly acidic proteins bind less SDS and migrate slower, so they look larger. Tags matter too: a GST tag adds roughly 26 kDa, while His and FLAG tags add little.

Try first: check the observed molecular weight reported on the antibody datasheet and in the literature for your cell type, not the calculated mass from UniProt. Vendors that validate on lysates usually state the band size they see. If the datasheet band matches yours, the blot is correct.

Patchy, spotted, smiling and streaked blots

These are the easiest problems to fix and the hardest to see past when they overlap with a real signal problem. Clear them first so they do not confuse the antibody optimisation. White spots or blank patches are air bubbles trapped during sandwich assembly — roll each layer. Dark speckles are aggregated antibody or undissolved milk — filter or centrifuge antibody dilutions and blocker before use. Smiling bands mean the gel overheated during electrophoresis; run at lower voltage or cool the buffer. Uneven lane intensity across the membrane points to uneven transfer contact, partial drying, or too little antibody volume for the membrane area. Vertical streaks in a lane indicate sample overload or particulates — clarify the lysate by centrifugation. Bright edges with a dim centre reflect uneven current across a large membrane; check buffer levels and electrode alignment.

Why Western Blot Optimization Experiments Fail as Experiments

An optimisation experiment has a harder job than a routine blot: it has to produce a valid comparison, not just a band. Blots that each look fine on their own can still fail as an experiment when the comparison between them is not controlled.²³

Too many variables changed at once

Changing antibody dilution, blocking agent, and incubation time in the same run means a better result cannot be attributed to any one change, and a worse result cannot be reversed with confidence. Fix the detection chain first, then vary one parameter per blot. Where several conditions must be tested in parallel, cut the membrane into strips after transfer and treat each strip differently, so gel loading and transfer are held constant.

No positive control, no negative control

Without a lane that must give a band (a positive-control lysate) and a lane that must not (secondary-only, or a knockout or knockdown sample), you cannot distinguish an antibody that works from a sample that lacks the target, or a specific band from a cross-reactive one. Both controls belong on every optimisation blot, not only the first.

Working outside the linear range

Chemiluminescence saturates. A loading control at 30 µg may already sit at the top of the detector's response, so a two-fold difference in loading reads as a 1.1-fold difference in signal, and "normalised" quantification becomes meaningless. Before optimising a target, run a dilution series of a single lysate — for example 5, 10, 20, and 40 µg — and plot signal against load for both the target and the loading control. Use only the loads where the relationship is linear. Total-protein stains are more robust normalisers than housekeeping proteins for exactly this reason.³⁴

Comparing across blots instead of within them

Transfer efficiency, substrate freshness, and exposure differ from blot to blot. Conditions you want to compare must be on the same gel and the same membrane, imaged in the same exposure. If a set of samples cannot fit on one gel, include an identical inter-blot calibrator sample on every gel.

Lot and reagent drift

A new secondary lot, a new membrane box, or a substrate opened three months ago will shift absolute signal. Record lot numbers, aliquot antibodies on receipt, and do not compare a blot run with a fresh reagent lot against one run before the switch without a calibrator.

A note on "optimisation" itself: the goal is the lowest antibody concentration and the shortest protocol that gives a specific band inside the linear range. More antibody, longer exposure, and a more sensitive substrate all raise background alongside signal. If a condition only works at the extreme of every parameter, the antibody may not be suitable for western blot on that sample, and testing a second clone is cheaper than continuing to optimise.

Symptom → Most Likely Cause → First Fix

A shortcut from what you see to what to change. Confirm with the four-step diagnostic before acting.

Reagents That Most Often Turn Out to Be the Problem

Three reagents account for a large share of "not working" outcomes: a primary that was never validated for western blot, a secondary that does not match the primary's host species or has been killed by azide, and a loading control that has saturated. The products below are live in the BioHippo catalog and validated for western blot; they are examples of the reagent class, not a complete range.

WB-validated loading-control antibodies

• Anti-GAPDH Mouse Monoclonal Antibody (2B5) — Abbkine · BHA13715005
• HRP-Conjugated Anti-GAPDH Mouse Monoclonal Antibody (2B5) — directly conjugated, removing the secondary step for the loading control · Abbkine · BHA13715007

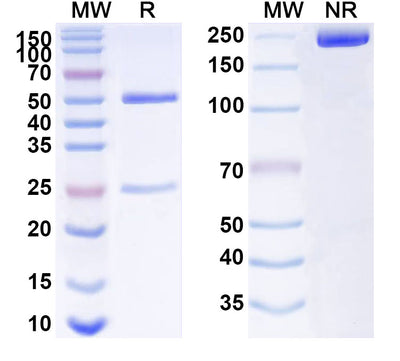

• Anti-ACTB / β-actin Antibody (SAA0339) — AtaGenix · BHA21409494

HRP-conjugated secondary antibodies

• AffiniPure Goat Anti-Rabbit/Mouse IgG (H+L), HRP — covers both common primary host species · Boster Bio · BHA21012549
• AffiniPure Mouse Anti-Rabbit IgG (H+L), HRP — Boster Bio · BHA21012596

Prestained protein ladders (transfer control)

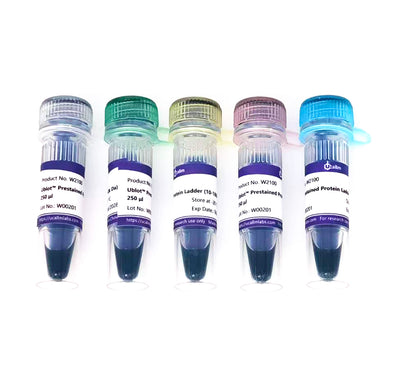

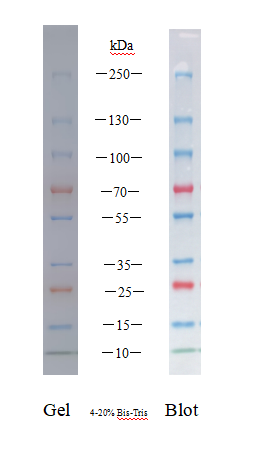

• U-Blot® Prestained Protein Ladder (10–250 kDa) — UcallM Biosciences · BHT21800002
• U-Blot® Prestained Protein Ladder (10–180 kDa) — UcallM Biosciences · BHT21800001

Target primary antibodies

BioHippo lists tens of thousands of primary antibodies tagged for western blot across cancer, neuroscience, immunology, cell biology, and other research areas. Because application validation is what decides whether a primary works on denatured protein, check the validated-applications field and the observed molecular weight on each product page before ordering. For help finding a WB-validated clone against a specific target, or a second clone to confirm a band, contact a specialist with the target and species, or request a quote.

What BioHippo does not currently stock: the catalog does not at present carry chemiluminescent substrates, blotting membranes, lysis or blocking buffers, protease-inhibitor cocktails, or stripping buffers. The troubleshooting above applies regardless of where those consumables come from.

Western Blot Troubleshooting FAQ

My western blot is not working at all — no bands, nothing. Where do I start?

Start with the Ponceau stain and the loading control, in that order. Ponceau tells you whether protein reached the membrane; the loading control tells you whether the detection chain works. If Ponceau is good and the loading control is blank, the fault is downstream of the primary — secondary species, HRP inactivation by azide, substrate, or imaging. A dot blot of the secondary with substrate settles that in ten minutes. Do not change the target primary until those two controls pass.

What is the single most common cause of a failed western blot?

In practice, a mismatch somewhere in the detection chain: a wrong-species secondary, an HRP secondary diluted in azide-containing buffer, or a primary antibody validated for ELISA or IHC but never for western blot. Antibody affinity is blamed far more often than it is actually at fault.

How many variables should I change between optimization runs?

One. If several conditions must be tested in the same run, cut the membrane into strips after transfer and vary the condition per strip, so loading and transfer are shared. A result you cannot attribute to a single change is a result you cannot reproduce.

My band is at the wrong size. Is the antibody non-specific?

Not necessarily. Glycosylation, phosphorylation, splice isoforms, tags, and charge effects routinely shift apparent size by 10–30%, and prestained ladders are only approximately calibrated. Compare your band with the observed molecular weight on the antibody datasheet and in the literature for your cell type, not with the calculated mass. If you need certainty, a knockout or knockdown lysate, or peptide competition, is the definitive test.

Should I use milk or BSA for blocking in western blot?

Non-fat milk is cheaper and blocks well for most targets. Use BSA for phospho-specific antibodies, because milk contains phosphoproteins that can mask or compete for the epitope, and for biotin/avidin detection systems, because milk contains biotin. If unsure, test both on strips from the same membrane; the blocking agent is one of the highest-leverage variables in optimisation.

My blots look fine but my quantification doesn't replicate. What is wrong?

Usually one of three things: you are comparing bands across different blots rather than within one; the loading control or target is outside the linear range of detection, which is very common with GAPDH or β-actin at typical loads; or a reagent lot changed between runs. Run a dilution series of one lysate to define the linear range, put all samples to be compared on the same gel, and consider total-protein normalisation instead of a housekeeping protein.

When should I give up on an antibody and try another clone?

When it only gives a band at the extreme of every parameter — highest concentration, longest incubation, most sensitive substrate, longest exposure — and background rises alongside signal. At that point a second clone, ideally a monoclonal or recombinant antibody validated on a lysate similar to yours, is usually faster and cheaper than further optimisation.

References

1. Mahmood T, Yang PC. Western blot: technique, theory, and trouble shooting. N Am J Med Sci. 2012;4(9):429–434. doi:10.4103/1947-2714.100998 · PMID 23050259
2. Ghosh R, Gilda JE, Gomes AV. The necessity of and strategies for improving confidence in the accuracy of western blots. Expert Rev Proteomics. 2014;11(5):549–560. doi:10.1586/14789450.2014.939635 · PMID 25059473
3. Taylor SC, Posch A. The design of a quantitative western blot experiment. Biomed Res Int. 2014;2014:361590. doi:10.1155/2014/361590 · PMID 24738055
4. Pillai-Kastoori L, Schutz-Geschwender AR, Harford JA. A systematic approach to quantitative Western blot analysis. Anal Biochem. 2020;593:113608. doi:10.1016/j.ab.2020.113608 · PMID 32007473

Citation metadata retrieved from PubMed. Troubleshooting guidance summarises standard western blot methodology and published best-practice recommendations. Antibody dilutions, blocking agents, transfer conditions, and observed molecular weights vary by product and sample; confirm on each product datasheet before use. All figures in this article are illustrative schematics, not experimental data.
