ChR2 Expression: How Channelrhodopsin-2 Constructs Work

ChR2 expression only produces a usable experiment when channelrhodopsin-2 reaches the right cells, at the right level, in the right membrane compartment. Blue light is a direct depolarising stimulus once the channel is there — but everything that decides whether it is there sits upstream, in the construct and the vector.

What is actually expressed when you express ChR2

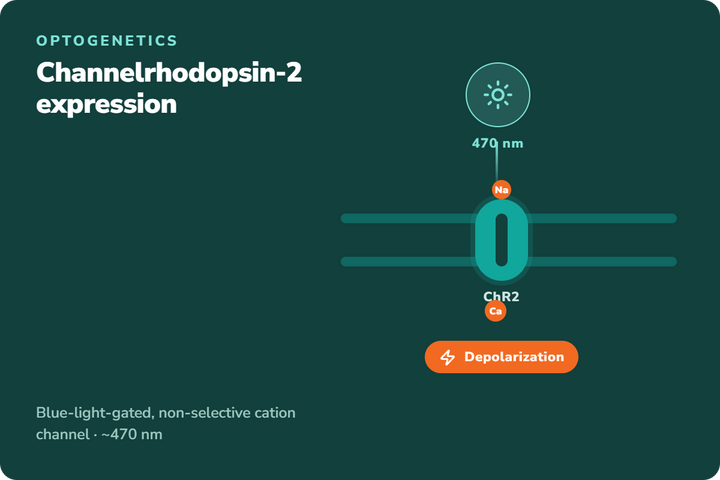

Channelrhodopsin-2 is a seven-transmembrane, light-gated cation channel from the green alga Chlamydomonas reinhardtii. Expressed heterologously in a neuron, it converts blue light into depolarising current with no intermediary receptor, no second messenger and no added chemistry.¹

What is delivered, though, is never bare ChR2. A working construct is a stack of separable design choices, and each one independently decides whether the experiment succeeds.

• The opsin coding sequence — usually a mammalian codon-optimised, C-terminally truncated ChR2 (written hChR2), carrying a point mutation that tunes kinetics or photocurrent.
• A fluorescent reporter fused in frame (EYFP, EGFP, mCherry, tdTomato, mScarlet, Venus) so expression can be verified histologically and targeted for recording.

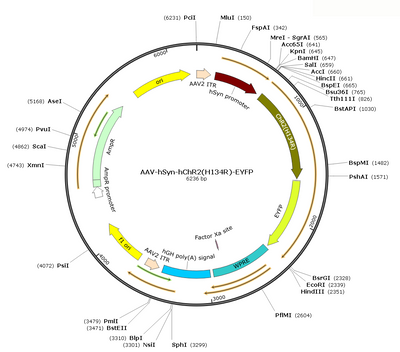

• A promoter that sets which transduced cells transcribe the cassette — ubiquitous, pan-neuronal, or cell-type restricted.

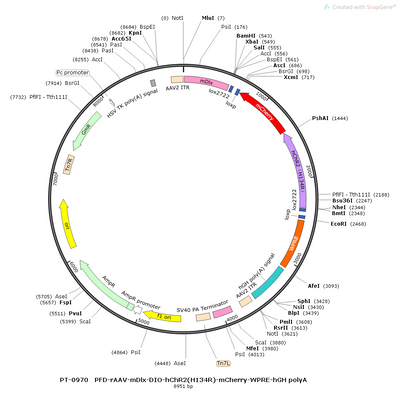

• A recombinase-dependent switch (DIO/FLEX, DO, Con/Fon) layering Cre and Flp specificity on top of the promoter.
• A delivery vehicle — most often a recombinant AAV of a chosen serotype, which governs tropism, spread and directionality. Browse the range in AAV Vector Research.
• Trafficking and post-transcriptional elements — membrane-targeting signals, WPRE and a polyadenylation signal, which together set how much functional protein reaches the plasma membrane.

Change any one of these and the photocurrent, the temporal fidelity, the anatomical specificity or the tolerability of the manipulation changes with it.

ChR2 expression principles: the photocycle behind the photocurrent

ChR2 binds all-trans-retinal as a covalently attached chromophore through a protonated Schiff base to a lysine in helix 7. Absorbing a photon — peak sensitivity near 470 nm — isomerises the retinal to the 13-cis configuration, and the resulting conformational change opens a pore through the protein itself.¹ Unlike the microbial rhodopsin pumps, ChR2 is a genuine channel: ions move down their electrochemical gradient rather than being translocated against it.

Three properties of that photocycle set the practical envelope of every ChR2 experiment.

Non-selective cation conductance

ChR2 passes H⁺, Na⁺, K⁺ and Ca²⁺, with a reversal potential near 0 mV. At resting membrane potential the net current is inward and depolarising, which is why blue light drives spiking. It also means ChR2 is not a clean sodium channel — proton flux is substantial, and sustained illumination of a small compartment can acidify it.

Millisecond-scale gating

Channel opening follows photon absorption within a few hundred microseconds, and wild-type ChR2 closes with an off time constant on the order of ~10 ms. This is the property that separated optogenetics from pharmacology and electrical stimulation: single action potentials can be evoked with millisecond precision and locked to a light pulse train.²

Desensitisation

Under continuous light the peak photocurrent decays to a lower steady-state plateau, and full recovery takes seconds in the dark. Practically, this caps reliable spiking frequency, and it is why pulse trains — brief pulses with recovery intervals — outperform sustained illumination for driving repeated spikes.

How ChR2 expression works, from AAV vector to plasma membrane

Getting from an AAV preparation to a light-responsive neuron is a sequence of four steps, each with its own failure mode.

1 · Transduction

AAV particles bind cell-surface receptors, are internalised, and traffic to the nucleus, where the single-stranded genome is uncoated and converted to double-stranded DNA. The vector genome persists predominantly as an episome; it does not require integration to drive long-term expression, which is why AAV-mediated ChR2 expression is stable for months without appreciable dilution in post-mitotic neurons.

2 · Transcription

The promoter determines which transduced cells actually transcribe the cassette. A strong ubiquitous promoter (CAG, EF1α, CMV) transcribes in every transduced cell; a cell-type promoter (hSyn, CaMKIIa, mDLX, TH, ChAT) restricts transcription to a defined population. In Cre-dependent designs the coding sequence is inverted between incompatible lox site pairs and only becomes readable after Cre-mediated recombination.

3 · Translation and membrane trafficking

This is the step most often underestimated. ChR2 is a multi-pass membrane protein, and the fraction that actually reaches the plasma membrane — rather than accumulating in the endoplasmic reticulum or in intracellular puncta — determines the photocurrent. Constructs engineered with trafficking signals (a Kir2.1-derived TS sequence, an ER export motif such as ER2) push more protein to the surface and typically produce larger currents at a given expression level. Axon-targeted variants add motifs that bias the protein toward the axonal compartment, which matters for terminal-stimulation experiments.

4 · Expression time course

Photocurrent is not available the day after injection. Local somatic expression is usually workable at roughly two to three weeks post-injection; long-range axonal projections, retrograde constructs and terminal-field experiments generally need four to six weeks or more for the protein to fill distal processes. Waiting longer is not free either — prolonged expression carries its own costs, covered below.

Choosing a ChR2 variant: photocurrent against kinetics

Point mutations in the ChR2 pore and retinal-binding pocket trade photocurrent amplitude against gating speed. There is no universally best variant — the right one depends on whether the experiment needs large depolarisation, high-frequency fidelity, or sustained bistable control.

Promoters and Cre-dependent targeting control which cells express ChR2

Cell-type specificity in ChR2 expression comes from two independent mechanisms that are frequently combined: promoter choice, and recombinase-dependent gating.

Promoter-driven restriction

Recombinase-dependent switches

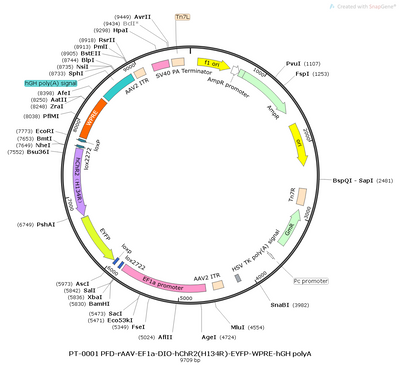

• DIO / FLEX — expression only in Cre⁺ cells. The default for Cre-driver line work.
• DO — the inverse: expression only in Cre⁻ cells, for testing the complement of a labelled population. Example: AAV-hSyn-DO-hChR2(H134R)-EGFP.
• Con/Foff, Coff/Fon, Con/Fon — intersectional logic across Cre and Flp, isolating populations defined by two markers rather than one. Examples: AAV-EF1α-Con/Foff-hChR2(H134R)-EYFP and AAV-hSyn-Coff/Fon-hChR2(H134R)-EYFP.

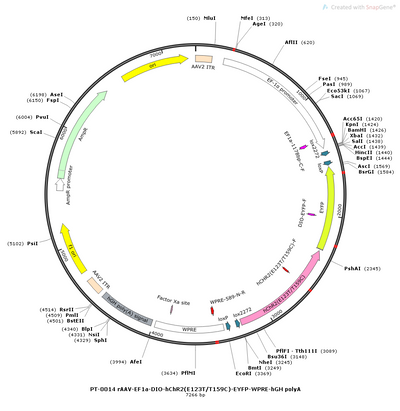

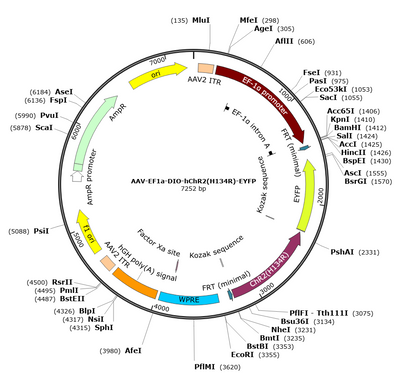

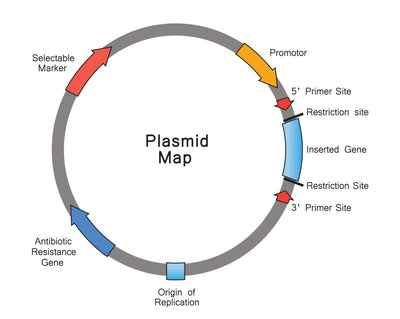

• Dual-actuator cassettes — bidirectional control from a single injection, such as AAV-EF1α-DIO-hChR2(H134R)-P2A-eNpHR3.0-EGFP, co-expressing an excitatory and an inhibitory opsin.

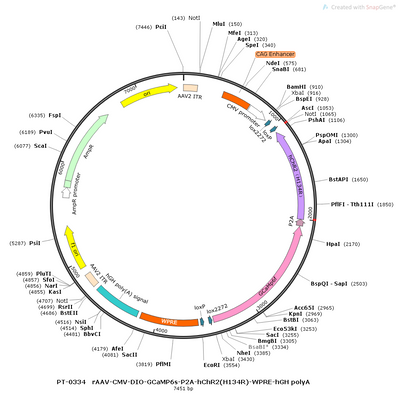

• Actuator plus sensor cassettes — such as AAV-CMV-DIO-GCaMP6s-P2A-hChR2(H134R), pairing calcium imaging with optogenetic drive in the same cells.

Serotype sets the spatial footprint of ChR2 expression

The capsid determines which cells are transduced and how far the vector spreads from the injection site. For an intracranial ChR2 injection, serotype is effectively a spatial-resolution parameter: it sets the radius of the expressing volume, and therefore how tightly a claim about “this nucleus” can be defended.

• AAV2 — comparatively restricted spread; useful when the goal is a tight, well-bounded expression field. See AAV2 Vectors.
• AAV1, AAV5, AAV8, AAV9 — broader parenchymal spread with efficient neuronal transduction; the common choices for filling a nucleus or cortical region. See AAV1, AAV5, AAV8 and AAV9 Vectors.
• rAAV2-retro — efficient retrograde uptake at axon terminals, so ChR2 is expressed in the neurons that project to the injected region rather than those residing in it.
• AAV-PHP.eB — engineered for enhanced CNS transduction after systemic delivery in permissive mouse strains. Transduction efficiency is strain-dependent and should be piloted before committing a cohort. See AAV-PHP.eB Vectors.

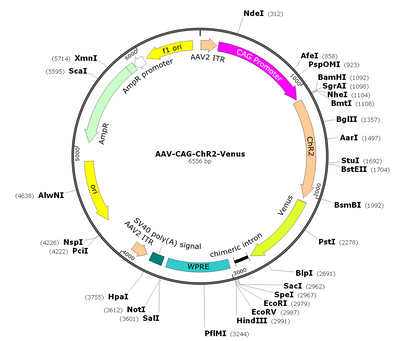

The CAG-ChR2-Venus cassette is listed as ready-to-use packaged virus across a serotype series, which makes it a practical way to hold the cassette constant and vary only the capsid: AAV1, AAV2, AAV5, AAV6, AAV8 and AAV9.

ChR2 expression applications in circuit neuroscience

Establishing causality in behaviour

The original motivation, and still the dominant one. Recording tells you a population is active during a behaviour; ChR2 tells you whether driving that population is sufficient to produce it. Cell-type-restricted expression converts a correlational observation into a causal test on a specific, nameable population.

Synaptic circuit mapping

Channelrhodopsin-assisted circuit mapping expresses ChR2 in a presynaptic population, then records postsynaptic responses while illuminating terminals in a slice. Because the axons are stimulated directly, connectivity can be assayed even when the somata have been severed by slicing — long-range inputs become tractable.⁷ Adding TTX and 4-AP to the bath isolates monosynaptic connections by suppressing polysynaptic recruitment.

Projection-specific manipulation

Expressing ChR2 in one region and illuminating its terminal field in another selectively engages a single pathway from a multi-target population. Two caveats belong in every such design: antidromic spread back to the soma, and collateral activation in unilluminated targets.

All-optical interrogation

Combining ChR2 with a spectrally separated activity sensor allows stimulation and readout in the same preparation. Cassettes such as AAV-CMV-DIO-GCaMP6s-P2A-hChR2(H134R) co-express sensor and actuator; the alternative is a red-shifted actuator paired with green GCaMP, using constructs such as AAV-hSyn-DIO-ChrimsonR-mCherry. Crosstalk between excitation windows is the limiting factor either way, and needs to be measured rather than assumed.

Bidirectional control

Pairing ChR2 with an inhibitory opsin tests necessity and sufficiency in the same animal. Dual cassettes such as AAV-EF1α-DIO-eNpHR3.0-P2A-hChR2(H134R)-mCherry sit alongside standalone silencers including GtACR1, Arch and Jaws.

Non-neuronal contexts

ChR2 expression is also used outside the classical circuit setting — astrocytic expression through GfaABC1D promoters to probe glial signalling, and optical pacing in excitable non-neural tissue. Retinal applications of channelrhodopsin toward vision restoration remain an active translational area; those programmes sit well outside research-use-only supply and are noted here only for context.

Why ChR2 expression level matters more than fluorescence

ChR2 expression has a working window, not a monotonic dose–response. Too little protein and light fails to reach spike threshold; too much and the manipulation itself becomes the confound.

Under-expression

Subthreshold photocurrent produces depolarisation without reliable spiking — an experiment that looks like a negative result but has in fact not delivered the intended manipulation. This is why a light-response check under patch-clamp, not visible fluorescence, is the meaningful validation.

Over-expression

Very high ChR2 levels — from strong promoters, high titres or long post-injection intervals — are associated with intracellular aggregation, axonal blebbing and altered membrane properties, and in the extreme with cytotoxicity.⁸ Chronic high-level expression can shift the intrinsic excitability of the very cells the experiment intends to measure, meaning the control condition is no longer neutral.

Practical consequences for design

• Titre and volume are experimental variables. Pilot them for the target region rather than importing numbers from a different structure or species.
• Expression interval is a variable too. Fix the interval across every animal in a cohort; a three-week and a nine-week animal are not directly comparable.
• Include an opsin-negative control. A fluorophore-only vector at matched titre separates ChR2 effects from vector, surgery and illumination effects.
• Report illumination parameters. Irradiance at the fibre tip, pulse width, frequency and duty cycle determine whether a photocurrent produced spikes — and blue light penetrates tissue poorly, so effective irradiance falls steeply with distance from the fibre.
• Account for heat. Sustained high-power illumination raises local tissue temperature, which alters firing independently of ChR2. Light-only controls in non-expressing animals address this.

Validating ChR2 expression before the experiment counts

ChR2 and optogenetic constructs in the BioHippo catalogue

ChR2 vectors are listed in two supply formats. Ready-to-use packaged virus ships from stock in a fixed serotype; pack-ready constructs are supplied as plasmid in stock and packaged to order across a broad serotype panel. The format is stated on each product page and affects lead time.

Many ChR2 constructs are listed as pack-ready, with the serotype selected at order time from a broad panel including AAV1/2, AAV-DJ, PHP.eB, PHP.S, rAAV2-retro, Rh10, 7m8, Anc80L65 and MyoAAV 2A. Confirm the available serotype list, titre and lead time on the individual product page before finalising a design.

ChR2 expression FAQ

How long after AAV injection should I wait before recording?

Roughly two to three weeks for local somatic expression, and four to six weeks or longer for long-range axonal projections, terminal-field stimulation and retrograde constructs. Fix the interval across an entire cohort and validate it with a pilot rather than assuming a published number transfers to your region and serotype.

Should I use H134R or wild-type ChR2?

H134R gives a larger steady-state photocurrent at the cost of slower channel closure, which reduces fidelity in high-frequency pulse trains.³ Use it when reliable spiking at moderate rates or low illumination power matters. For fast-spiking populations or gamma-range driving, a ChETA-class variant such as E123T/T159C is the better fit.⁵

Do I need to supplement all-trans-retinal?

Not in mammalian tissue — endogenous retinal is sufficient. Invertebrate preparations such as C. elegans and Drosophila generally do require dietary all-trans-retinal supplementation.

Why is my reporter bright but the photocurrent small?

Fluorescence reports total protein, including protein that never reached the plasma membrane. Poor surface trafficking, intracellular aggregation from over-expression, or an unfavourable ratio of somatic to membrane protein can each give strong fluorescence with weak current. Constructs carrying trafficking signals such as TS and ER2 are designed to reduce that gap; patch-clamp validation is the only way to confirm it.

Can ChR2 stimulation be restricted to a single pathway?

Only partly. Illuminating the terminal field of a projection is the standard approach, but antidromic propagation back to the soma and recruitment of collaterals in unilluminated targets are both real. Design controls that test for antidromic spread rather than assuming terminal illumination is pathway-exclusive.

What is the right opsin-negative control?

A reporter-only vector of the same serotype at matched titre and injection volume, with identical illumination. This separates ChR2-specific effects from vector, surgery, light and heat effects. A no-injection control does not do the same work.

Which promoter should I choose if I already have a Cre line?

With a Cre driver, the promoter is a second, independent filter rather than the primary one. EF1α or hSyn with a DIO/FLEX switch is the usual default. Add a cell-type promoter on top only when the Cre line is known to be leaky in a population you must exclude, and quantify that exclusion histologically.

Match the construct to the circuit before you order

Once the variant, promoter, recombinase logic and serotype are settled, the construct list is short. Browse AAV vectors for circuit research and neuroscience vectors and viruses, or talk to a BioHippo technical specialist about matching a cassette to your Cre line, target region and illumination protocol before you commit a cohort.
