ECL Substrate for Western Blot: When You Actually Need Femto Sensitivity

Choosing an ECL substrate for western blot is not a choice between a good reagent and a better one — it is a choice of detection floor, and a lower floor is paid for in dynamic range. The useful question is never "would more sensitivity help?" but "is my target below the detection floor of the substrate I am already using?" Only the second question has a reagent as its answer.

ECL Substrate Sensitivity Is a Detection Floor, Not a Quality Grade

A substrate with a lower floor does not produce a cleaner blot. It produces more photons per bound enzyme molecule — for the target band, and equally for every non-specific band, every patch of incomplete blocking, and every trace of residual antibody on the membrane. It amplifies faithfully and indiscriminately. Used on a target that a routine substrate already resolves, the result is a saturated band sitting outside the linear range, which is worse than the blot you started with because it can no longer be compared quantitatively to anything.

One point of vocabulary before the decision framework, because product naming obscures it. "ECL" already means enhanced chemiluminescence: the luminol and peroxide reaction run with a phenolic enhancer that raises light output from horseradish peroxidase (HRP). Every substrate in this category is an enhanced substrate, so the word "enhanced" in a product name carries no information about where a given reagent sits. The axis that matters is the specified detection floor — roughly picogram, femtogram, or low femtogram — together with how long the signal lasts. Read the specification table, not the product name.

Three Questions Before You Change ECL Substrate

Before comparing tiers, three questions will tell you whether you have a sensitivity problem at all. Work through them in order.

1. Is the band absent, or is it faint? A faint but visible band is usually an exposure, imaging, or antibody-titration problem, and a longer exposure or a better imager solves it for free. A band that is genuinely absent when the protein should be present is a detection-floor problem, and that is what a lower tier fixes.
2. Can you load more? If yes, loading more is almost always cheaper and more informative than changing substrate. If no — because the sample is a needle core, a sorted subpopulation, a single organoid, or irreplaceable patient material — then sensitivity is the only remaining lever and the tier question is real.
3. Is your HRP already in excess? This is the one most often missed. Too much HRP-conjugated secondary antibody quenches chemiluminescent signal and raises background at the same time, producing weak bands, brown or yellow bands, or a membrane that glows uniformly. The symptom mimics insufficient sensitivity, and the fix is to dilute the secondary, not to buy a more sensitive substrate.

Picogram, Femtogram and Low-Femtogram ECL Substrate Tiers

Manufacturers specify HRP substrates by the smallest amount of antigen they can resolve under optimized conditions, and by how long the light output persists after the working solution is applied. Those two numbers, read together, define the tier.

Picogram tier — routine, abundant targets

Detection floors specified in the picogram range, with signal typically persisting for minutes to a couple of hours. This is the correct tier for the majority of blots: structural proteins, loading controls, tagged overexpression constructs, and any target you can load abundantly. Because the floor sits well below a strong band but not absurdly below it, the useful signal lands inside the linear range, where band intensities can legitimately be compared. Widest linear range, lowest cost per blot, best quantitative behaviour.

Femtogram tier — low-abundance targets and reprobing workflows

Detection floors specified at femtogram level, with continuous light output that can extend for several hours — which is what makes repeated exposures, stripping, and reprobing practical on a single membrane. This is the working tier for targets that are present but scarce, and for any experiment where the same blot has to be read more than once.

Low-femtogram (ultra-sensitive) tier — very low abundance and scarce samples

The lowest floors on the market, with the longest signal windows, and one benefit that is easy to overlook: because so little enzyme is needed to generate a readable band, antibodies can be diluted far further. Manufacturer guidance for this tier runs to primary antibody at 1:5,000–1:100,000 and HRP-conjugated secondary at 1:100,000–1:500,000 from a 1 mg/mL stock, against 1:1,000–1:4,000 on a routine picogram-tier kit — roughly two orders of magnitude in antibody consumption. It also carries the highest saturation risk.

Six Situations That Justify a Femto-Sensitive ECL Substrate

Each of these is a distinct reason, and they are worth separating because they call for different secondary adjustments.

1. The target is intrinsically scarce

Low-copy-number proteins — transcription factors, nuclear receptors, kinases, cell-surface receptors — sit orders of magnitude below the cytoskeletal and housekeeping proteins that most protocols were optimized on. Post-translationally modified pools are scarcer still: the phosphorylated, ubiquitinated, or acetylated fraction is a minority of an already modest total pool, which is why a phospho-specific blot can come back blank on a lysate where the total-protein blot is strong (see our phospho western blot protocol and troubleshooting guide). The same discontinuity appears when a project moves from a tagged overexpression construct to the endogenous protein, and a blot that worked reliably for two years suddenly shows nothing.

2. The sample is the constraint, not the target

Primary cells, flow-sorted subpopulations, needle biopsies, laser-microdissected tissue, individual organoids, early-passage stem cell cultures, and archived clinical material all share one property: there is no more of them. When the answer to "can you load another 40 µg?" is no, every other optimization has a ceiling and the detection floor becomes the binding constraint.

3. The workflow dilutes the target before it reaches the membrane

Enrichment steps concentrate a target relative to the proteome but often deliver very little absolute protein: immunoprecipitation and co-IP eluates, subcellular and gradient fractions, and extracellular vesicle preparations all arrive in small volumes at low absolute yield. Transfer losses belong here too. A very high molecular weight or multipass membrane protein can be genuinely abundant in the lysate and genuinely scarce on the membrane — no amount of loading fixes a transfer problem, though a lower floor can make the fraction that did transfer visible.

4. The antibody is the constraint

Two versions of this. In the first, the primary antibody is simply low-affinity and gives weak signal at any reasonable concentration. In the second, more interesting version, the antibody works but only at a concentration that also produces non-specific bands, so specificity and sensitivity are in direct competition. Moving to a lower-floor substrate buys the headroom to dilute the antibody into the range where it behaves specifically, and cleans up the blot as a side effect. For an antibody that costs more per experiment than the substrate does, this can also be the cheaper choice outright.

5. The conclusion depends on absence

Knockout validation, knockdown efficiency, and antibody specificity controls all rest on a negative result, and a negative result is only interpretable if the detection floor sits below the level you are claiming is absent. "No band" on a picogram-tier substrate does not establish that residual protein is absent; it establishes that residual protein is below the picogram floor. When the claim being made is absence, the floor is part of the evidence and should be reported alongside it.

6. The blot has to be read more than once

Sequential probing, strip-and-reprobe, and long-exposure imaging all depend on light output persisting long enough to expose the membrane repeatedly. Here signal duration matters as much as the floor: manufacturer specifications in this category range from under two hours at the routine tier to six or eight hours at the sensitive tiers, and technical guidance for ultra-sensitive substrates notes that genuinely weak bands may require exposures of one to ten hours. Enhancer chemistries developed specifically to give long-lived luminol emission were introduced for exactly this reason — extended exposure is what converts a low nominal floor into a band you can actually see (Kuroda et al., Luminescence 2001). A substrate whose signal has decayed by the time the exposure finishes cannot deliver its stated sensitivity.

When a Lower Detection Floor Makes Your Western Blot Worse

This section matters more than the list above, because the failure mode it describes is common, avoidable, and frequently misread as a good result. Do not step down a tier for any of the following.

• Abundant targets and loading controls. Actin, tubulin, GAPDH, histones, and tagged overexpression constructs will saturate an ultra-sensitive substrate. Saturated bands bloom, merge with their neighbours, and sit outside the linear range, which invalidates any densitometric comparison drawn from them — a failure mode documented in detail in analyses of quantitative immunoblotting workflows (Janes, Sci Signal 2015; Taylor et al., Mol Biotechnol 2013). A common and sensible arrangement is a sensitive substrate for the target of interest and a routine substrate for the loading control. Note also that the conventional housekeeping proteins are themselves imperfect normalizers (Lee et al., Proteomics 2016), so a saturated control band compounds a problem that already exists.
• Non-specific background. A lower floor amplifies background and non-specific bands exactly as efficiently as it amplifies the target. It is not selective, and it will not rescue a blot whose problem is specificity. If signal-to-noise is the complaint, the antibody, the blocking, and the wash steps are where the fix lives.
• A blot that already works. If a routine substrate gives a clean, well-defined band in a thirty-second exposure, there is no sensitivity problem to solve. The lower tier costs more, narrows the usable range, and returns nothing.
• Quantitative comparisons across a wide range. When samples span a large dynamic range, the tier that keeps the strongest and weakest bands both inside the linear range is the right one, even if that means the weakest band is faint. Sensitivity and dynamic range trade against each other.

The general principle: choose the highest floor that still resolves your weakest meaningful band. Going lower than that buys nothing and costs range.

Five Checks Before You Change ECL Western Blotting Substrate

A faint or absent band has several possible causes, and only one of them is the substrate. Working through these first is faster than a purchasing cycle and settles the question either way.

1. Absent or faint? Extend the exposure before concluding anything. A band that appears at five minutes was never a floor problem, and if your imaging system is film-based rather than a cooled CCD camera, the gap between what is on the membrane and what you can see may be substantial.
2. Titrate the HRP-conjugated secondary down, not up. Excess HRP quenches chemiluminescent output and raises background simultaneously. Uniform membrane glow, brown or yellow bands, and a signal that dies unusually fast all point here. This is the single most common cause of an apparent sensitivity problem that is not one.
3. Confirm the transfer, do not assume it. A reversible total-protein stain or a pre-stained marker tells you whether the protein reached the membrane. High molecular weight and multipass membrane proteins are the usual offenders, and PVDF membranes that were allowed to dry out will not rewet without methanol.
4. Check that loading is genuinely maxed, and that your lysis buffer reaches the target. A nuclear or membrane-bound protein extracted in a buffer optimized for cytosolic proteins will look scarce for reasons no substrate can fix.
5. Rule out enzyme inhibition and blocking interference. Sodium azide inhibits HRP and must not be used as a preservative anywhere in the workflow. Milk-based blocking carries endogenous biotin, which interferes with avidin–biotin detection systems, and adding Tween-20 to a final 0.05% in blocking buffer and antibody diluents reduces non-specific binding.

If all five come back clean and the band is still absent, the detection floor is the constraint and the tier question is answered.

ECL Substrate Selection Matrix: Situation to Tier

One practical consequence of moving down this table: dilute your antibodies at the same time. Carrying routine-tier antibody concentrations onto an ultra-sensitive substrate is the fastest route to a uniformly glowing membrane with no readable bands.

FAQ: Choosing an ECL Substrate for Western Blot

What is an ECL substrate?

An ECL substrate is the luminol-based reagent that horseradish peroxidase acts on to produce light during chemiluminescent western blot detection. "ECL" stands for enhanced chemiluminescence: the luminol and hydrogen peroxide reaction is run with a phenolic enhancer that raises and prolongs light output from HRP. Products differ by specified detection floor (picogram to low femtogram) and by how long that light lasts.

Does "enhanced ECL" mean high sensitivity?

No. Every substrate in the category is an enhanced substrate, so the word carries no tier information. Some products named "enhanced" are specified at picogram level for routine, abundant targets. Check the detection sensitivity and applicable sample fields in the specification table rather than inferring a tier from the product name.

Is a more sensitive ECL substrate ever the wrong choice for a faint band?

Frequently. A faint band means signal is present and reaching the detector, which usually points to exposure time, imaging hardware, or antibody concentration rather than the detection floor. Excess HRP-conjugated secondary is a particularly common culprit, because it quenches signal and raises background at once, so the blot looks insensitive when the actual fix is to dilute. A lower floor also amplifies whatever background is already there.

Can I use one ECL substrate for both my target and my loading control?

You can, but on an ultra-sensitive substrate the loading control will usually saturate while the target is still coming up, and a saturated control band is unusable for normalization. The common solution is to run the loading control on a parallel membrane, or on the same membrane after stripping, using a routine-tier substrate, and reserve the sensitive substrate for the low-abundance target.

Why does signal duration appear alongside ECL substrate sensitivity in the specifications?

Because a low detection floor is only reachable if the light lasts long enough to expose for it. Faint bands can require exposures of an hour or more, so a substrate whose output has largely decayed within two hours cannot deliver on a long exposure. Multi-hour signal windows also make repeated exposures, stripping, and reprobing practical on a single membrane, which is often the real reason to move up a tier.

How does ECL substrate choice affect antibody cost?

Substantially, and in the opposite direction to what you might expect. Ultra-sensitive substrates need very little bound enzyme to generate a readable band, so manufacturer guidance for that tier permits primary and secondary antibody dilutions one to two orders of magnitude greater than a routine kit. If your primary antibody is expensive or in short supply, the more sensitive substrate can lower the total cost per blot even though its unit price is higher.

Will a more sensitive substrate help if my problem is non-specific bands?

No, and it will usually make the blot look worse, because amplification is not selective. Non-specific bands, incomplete blocking, and residual antibody all brighten along with the target. Address specificity through the antibody, the blocking reagent, and the wash regime, then choose the tier that matches your target abundance.

ECL Substrates Available from BioHippo

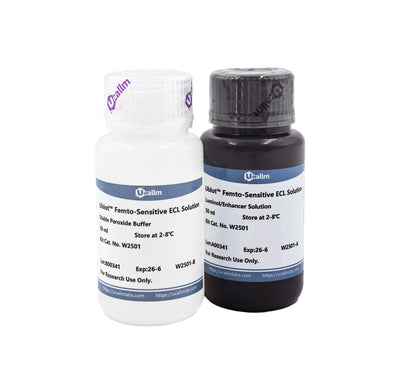

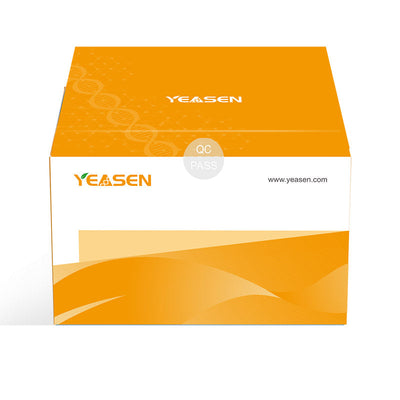

Three HRP substrates spanning the tiers described above, from the BioHippo reagents and buffers catalog. Detection floor, signal duration, and recommended antibody dilutions are the fields to compare; confirm current specifications, pack sizes, and pricing on each product page before ordering.

All three detect HRP-conjugated antibodies and probes, and all three are compatible with western blot, dot blot, and nucleic acid blotting. Sodium azide inhibits HRP and should not be used as a preservative with any of them.

Not sure which tier your target needs? Tell a BioHippo technical specialist your target, its expected abundance, your sample type and how much of it you have, and your imaging setup — we will point you to the tier that resolves your weakest meaningful band without saturating your strongest, and flag the antibody dilutions to change at the same time. Request a quote or technical consultation →

References

1. Janes KA. An analysis of critical factors for quantitative immunoblotting. Sci Signal. 2015;8(371):rs2. doi:10.1126/scisignal.2005966 (PMID 25852189)
2. Taylor SC, Berkelman T, Yadav G, Hammond M. A defined methodology for reliable quantification of Western blot data. Mol Biotechnol. 2013;55(3):217–226. doi:10.1007/s12033-013-9672-6 (PMID 23709336)
3. Lee HG, Jo J, Hong HH, et al. State-of-the-art housekeeping proteins for quantitative western blotting: revisiting the first draft of the human proteome. Proteomics. 2016;16(13):1863–1867. doi:10.1002/pmic.201500344 (PMID 27125885)
4. Kuroda N, Murasaki N, Wada M, Nakashima K. Application of an enhanced luminol chemiluminescence reaction using DPPA to photographic detection of horseradish peroxidase on a membrane. Luminescence. 2001;16(2):167–172. doi:10.1002/bio.631 (PMID 11312543)
5. UcallM Biosciences. U-Blot® Femto-Sensitive ECL Solution (W2502) and U-Blot® MaxSignal ECL Solution (W2501) product datasheets and technical notes. Available through BioHippo: UcallM Reagents & Buffers
6. Yeasen Biotechnology. Enhanced ECL Chemiluminescent Substrate Kit (36222ES) product specifications and manual. Available through BioHippo: product page
7. BioHippo Application Note. High-Sensitivity ELISA Kit: When Sensitivity Changes the Result — a parallel treatment of the same trade-off in immunoassay format.

Detection floors, signal durations, and recommended antibody dilutions cited here are manufacturer specifications for the named catalog numbers, not independent BioHippo measurements, and apply under each manufacturer's optimized conditions. Actual sensitivity on any given blot depends on antibody affinity, target abundance, transfer efficiency, membrane chemistry, blocking, and imaging hardware, and must be established empirically. Confirm current specifications and intended-use statements on each product page before purchase.

For Research Use Only. Not for use in diagnostic procedures.
