PCR optimization is the systematic adjustment of reaction composition and thermal cycling conditions until a specific target amplifies efficiently, reproducibly, and without competing products. It is not a set of magic numbers — it is a short, structured search through a small, well-understood parameter space, and this primer walks through that search in the order that converges fastest.
The confusion usually starts because PCR works so reliably for easy targets. A single-copy, low-GC amplicon of 400 bp from clean genomic DNA amplifies under almost any sensible condition — so researchers conclude PCR "just works." Then the same protocol meets a GC-rich promoter, a 12 kb locus, a five-plex panel, or a crude blood lysate, and it stops working. Nothing about the chemistry changed; the target moved into a region of parameter space where default conditions no longer sit at the optimum. Optimization means answering one question: which parameter is currently limiting this reaction, and in which direction does it need to move?
Scope: this guide covers the reaction-level parameters controlled at the bench — primers, annealing temperature, Mg²⁺ and dNTPs, enzyme selection, cycling profile, template quality, and additives. It does not cover instrument calibration, plate normalization, or validation for regulated diagnostic use. BioHippo stocks a deep range of PCR, qPCR & RT-PCR reagents — master mixes, DNA polymerases, reverse transcriptases, and carryover-control enzymes — but does not currently list standalone MgCl₂ solutions, dNTP mixes, bench additives such as betaine or DMSO, or custom primer synthesis; where those are recommended, source them from your usual supplier.
PCR Optimization Principles: Five Levers in Priority Order
Nearly every PCR problem traces back to one of five levers, listed here in the order they should be pulled — each one changes the meaning of the ones below it, so retuning Mg²⁺ before fixing a badly designed primer pair is wasted effort.
1. Primer design — the parameter you cannot titrate out of
Primers set the specificity ceiling for the entire reaction. Conventional design targets 18–25 nt, 40–60% GC, and a melting temperature (Tm) of roughly 55–65 °C with both primers within about 5 °C of each other. Avoid runs of four or more identical bases, avoid 3′-end complementarity between primers, and check the 3′ terminus against the genome — the last 6–8 bases dominate priming specificity. A pair with 3′ complementarity forms primer-dimers: short products that amplify with near-perfect efficiency and consume polymerase and dNTPs your target needs. No annealing temperature or Mg²⁺ concentration reliably rescues a dimer-prone pair; the fix is redesign.
2. Annealing temperature — the specificity dial
The annealing temperature (Ta) sets the stringency of primer binding. The standard starting point is ~5 °C below the lower primer Tm, but calculated Tm values differ substantially between algorithms and salt models, so treat the calculation as a hypothesis. A temperature gradient across 8–12 °C is the fastest single experiment in all of PCR optimization. Too low, and primers tolerate mismatches — nonspecific bands and smearing. Too high, and even matched primers fail to anneal in the time allowed — no product at all. For a difficult target the usable window is often only 4–6 °C wide.
3. Mg²⁺ and dNTPs — a coupled pair, never adjusted alone
Mg²⁺ is the essential polymerase cofactor and also stabilizes primer–template duplexes; typical free Mg²⁺ sits around 1.5–2.5 mM. Critically, dNTPs chelate Mg²⁺ in a roughly 1:1 molar ratio, so what matters is free Mg²⁺, not total — raising dNTPs without raising Mg²⁺ silently starves the polymerase. Too little free Mg²⁺ gives low or no yield; too much stabilizes mismatched primer binding, producing nonspecific products and reduced fidelity. In a commercial 2× master mix these are pre-balanced — which is precisely why master mixes remove a whole class of failure at the cost of one degree of freedom.
4. Enzyme selection — fidelity, activation, and processivity
Three enzyme properties matter independently. Fidelity: wild-type Taq lacks 3′→5′ proofreading; proofreading polymerases reduce error rates by roughly one to two orders of magnitude (Cline et al., 1996). Activation: hot-start formats keep the polymerase inactive until a high-temperature activation step, preventing extension of mispriming during room-temperature setup (Chou et al., 1992). Processivity: engineered polymerases extend faster and tolerate longer templates. These map directly onto application: cloning or sequencing demands a proofreading enzyme such as Plus High-Fidelity DNA Polymerase; a multiplex panel or low-copy target demands hot start, as in Hieff UNICON™ HotStart Taq DNA Polymerase; a 15 kb amplicon demands processivity — in practice a long-range formulation such as Hieff Canace™ High-Fidelity Long PCR Master Mix. Choosing on price alone is how a cloning project acquires silent point mutations.
5. Cycling profile and template quality

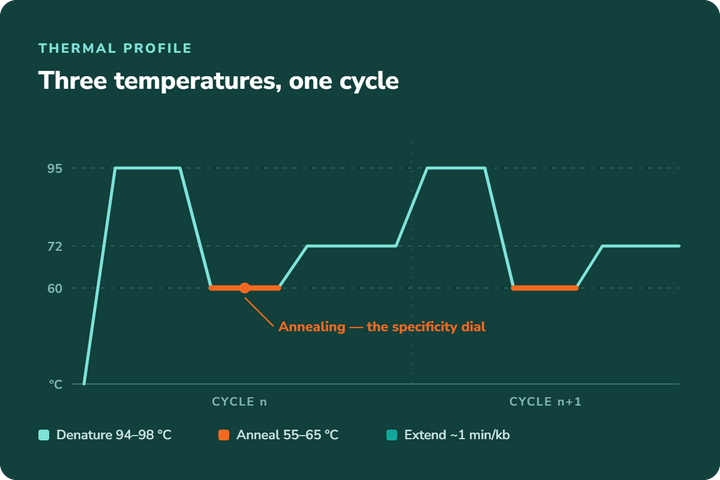

Denaturation is typically 94–98 °C; extension time scales with amplicon length — conventionally ~1 minute per kb for standard Taq, considerably less for engineered rapid enzymes. Cycle number should be the minimum yielding detectable product, usually 25–35. Template purity sits alongside: common inhibitors include heme from blood, humic acids from soil and plant material, and carryover EDTA, phenol, or SDS from extraction (Schrader et al., 2012). Excess cycles push the reaction into plateau phase, where artifacts accumulate — more cycles is not more signal; past a point it is more noise.
How PCR Optimization Works in Practice
The levers describe what to adjust; this is the order of experiments that converges fastest with the fewest plates. The core discipline is one variable, one readout — changing two parameters at once and seeing improvement tells you nothing about which one caused it. The one exception is a deliberate two-dimensional matrix, most commonly annealing temperature against Mg²⁺, which is a controlled grid rather than a guess.
| Step | Experiment | What you change | What tells you it worked |
|---|---|---|---|
| 1 | In-silico primer check | Re-examine Tm match, 3′ complementarity, secondary structure, genome-wide specificity — before touching the bench. | No predicted 3′ dimer; single predicted binding site per primer. |
| 2 | Annealing gradient | One plate spanning ~Tm − 10 °C to Tm + 5 °C, everything else fixed. | One clean band of expected size, brightest at a defined temperature. |
| 3 | Mg²⁺ titration | 1.0–4.0 mM in 0.5 mM steps at the chosen Ta — only when building from components, not a balanced master mix. | Yield rises then plateaus; choose the lowest concentration giving full yield. |
| 4 | Additive screen | For GC-rich or structured targets: DMSO 2–10% or betaine ~1–1.5 M (Henke et al., 1997). | A previously absent product appears. Additives lower effective Ta — re-check step 2. |
| 5 | Cycling adjustment | Extension time to match amplicon length; cycles down if artifacts, up if a genuine low-copy target is undetected. | Artifacts disappear without loss of target signal. |
| 6 | Enzyme or format change | Switch to hot start, high fidelity, long-range, or direct-amplification chemistry. | The targeted failure mode resolves — this step often makes steps 2–4 easier. |
Reading the result honestly: for endpoint PCR, success is a single band at the expected size with a clean no-template control. For qPCR the bar is defined: amplification efficiency ~90–110%, R² > 0.99, a single melt peak for dye chemistry, and no NTC amplification within the reportable range — the reporting elements set out in the MIQE guidelines (Bustin et al., 2009). Treat these as the definition of "optimized," not as paperwork.
PCR Optimization Parameters: Working Ranges at a Glance
Conventional starting points for standard reactions — specialized formulations legitimately fall outside them, so always defer to the product documentation.
| Parameter | Working range | Too low | Too high |
|---|---|---|---|
| Primer concentration | 0.1–1.0 µM each (0.2–0.5 typical) | Reduced yield; poor low-copy performance | Primer-dimers; nonspecific priming |
| Annealing temperature | ~5 °C below lower primer Tm | Mispriming, multiple bands, smearing | Weak or absent product; GC-rich targets fail first |
| Free Mg²⁺ | 1.5–2.5 mM (to 4 mM for hard targets) | Low or no yield — cofactor limiting | Nonspecific products; reduced fidelity |
| dNTPs | 200 µM each (800 µM total) | Truncated products; long amplicons fail | Mg²⁺ chelation, inhibition, elevated error rate |
| Denaturation | 94–98 °C, 10–30 s per cycle | Incomplete strand separation | Polymerase inactivation; depurination |
| Extension | ~1 min/kb (standard Taq) | Truncated products; long targets absent | Nonspecific extension; long runs |
| Cycle number | 25–35 (to 40 for low-copy qPCR) | Product below detection | Plateau artifacts; late nonspecific qPCR signal |
| Template input | 1–100 ng gDNA per 25 µL | Stochastic dropout at low copy number | Inhibitor carryover scales with input |
PCR Optimization Applications: What Changes by Technique
The parameters are universal but their relative importance is not — each application shifts the priority order, and knowing which lever dominates saves the most time.
- Genotyping and endpoint screening (throughput-led): fidelity is largely irrelevant — robustness across variable templates dominates. A ready-to-use hot-start premix such as 2× Hieff™ HotStart PCR Genotyping Master Mix removes the pipetting variability that dominates failure at scale; where hot start is not required, 2×Hieff™ PCR Master Mix (With Dye) goes straight from thermocycler to gel. Both generate 3′-dA overhangs for TA cloning.
- Cloning, mutagenesis, and sequencing templates (fidelity-critical): every polymerase error is clonally fixed when a colony is picked. Use a proofreading enzyme and the minimum cycle count that yields workable material (Cline et al., 1996).
- Dye-based qPCR (specificity-critical): an intercalating dye reports on all double-stranded DNA, so a dimer that is cosmetic on a gel becomes a quantification error. Primer design and annealing stringency dominate; validate with a melt curve every run and match the ROX level to your instrument.
- Probe-based and multiplex qPCR (balance-critical): several primer pairs compete for the same polymerase, dNTPs, and Mg²⁺ — abundant targets outcompete rare ones. Titrate abundant-target primers down rather than pushing rare targets up, and use a dedicated multiplex formulation.
- RT-qPCR and gene expression (two enzymes, two optima): reverse transcription has its own optimum and its own variability. Two-step formats let each step be optimized independently; one-step reduces handling and contamination risk but couples the optima. Genomic DNA carryover produces signal indistinguishable from transcript — use a gDNA-digestion step and a no-RT control, or primers spanning an exon junction.
- Long-range PCR (processivity-led): beyond ~5 kb, standard enzymes dissociate before completing the strand and stall at misincorporations. Use a long-range blend, extend the extension time, and start from high-molecular-weight, unsheared template.
- Crude and direct-sample amplification (inhibitor-led): heme, EDTA and citrate from collection tubes, humic acids, and polysaccharides bind the polymerase or sequester Mg²⁺ (Schrader et al., 2012). No thermal tuning compensates for an inhibited enzyme — use an inhibitor-tolerant direct-amplification polymerase such as Hieff UNICON™ HotStart Direct Taq DNA Polymerase (5 U/μL) or the 50 U/μL format, and if it still fails, dilute the sample — less template often yields more product when inhibitors are the limit.
- NGS library amplification (bias-critical): the reaction can work perfectly while distorting the data — GC bias and duplicates propagate into coverage and variant calling. Use a low-bias high-fidelity mix specified for library amplification at the minimum cycle number.
- Contamination and carryover control (preventive): amplicons from previous reactions are the most concentrated PCR template in any lab. Substitute dUTP for dTTP so amplicons carry uracil, then treat each new reaction with uracil-DNA glycosylase before cycling (Longo et al., 1990); pair with physical separation of pre- and post-PCR areas.
PCR Troubleshooting: Symptom, Cause, First Action
The "first action" column is deliberately the cheapest informative experiment, not the most thorough one.
| Symptom | Most likely causes | First action |
|---|---|---|
| No product at all | Ta too high; missing/degraded component; inhibited template; primer design error | Run a positive control with known-good primers and template on the same plate — separates "reaction is broken" from "this assay is broken" in one experiment. |
| Multiple bands / smearing | Ta too low; Mg²⁺ too high; too many cycles; no hot start; excess template | Raise Ta by 2–4 °C; if bands persist, drop cycle number by 5. |
| Low-MW cloud (<100 bp) | Primer-dimers — 3′ complementarity or excess primer | Halve primer concentration and switch to hot start; if it persists, redesign the pair. |
| Faint band, correct size | Suboptimal Mg²⁺; too few cycles; short extension; partial inhibition | Add 5 cycles first — if yield scales, it was under-cycled; if not, titrate Mg²⁺. |
| Product in the NTC | Amplicon carryover; contaminated stock; dimer scored as product | Melt curve or gel to distinguish dimer from amplicon; replace shared aliquots; adopt dUTP/UDG control. |
| qPCR efficiency outside 90–110% | Template inhibitors; primer design; dilution-series pipetting error; wrong ROX setting | Re-run the standard curve from a fresh dilution series of clean template — inhibition shows as efficiency recovering on dilution. |
| Multiple melt peaks | Nonspecific amplification; dimers; genuine SNP/splice heterogeneity | Raise Ta; if peaks persist with a clean NTC, run the product on a gel. |
| GC-rich target fails specifically | Incomplete denaturation; stable secondary structure | Add DMSO (start 5%) or betaine (~1 M) and raise denaturation slightly (Henke et al., 1997); re-check Ta afterwards. |
| RT-qPCR signal in the no-RT control | Genomic DNA carryover in the RNA prep | Use gDNA digestion during cDNA synthesis; design primers spanning an exon–exon junction. |
Matching PCR Reagents to the Optimization Problem
Optimization is faster when the starting formulation already sits near the optimum for your application. This table maps the failure modes above onto products in the BioHippo PCR, qPCR & RT-PCR range — confirm specifications, pack sizes, and intended use on each product page.
| Optimization problem | Suggested starting reagent | Property that addresses it |
|---|---|---|
| General endpoint PCR, routine targets | 2×Hieff™ PCR Master Mix (With Dye) | Pre-balanced Mg²⁺/dNTPs; gel-ready output |
| Nonspecific bands, dimers, low-copy target | 2×Hieff™ Ultra-Rapid II HotStart PCR Master Mix | Blocks pre-cycling mispriming and dimer extension |
| High-throughput genotyping | 2× Hieff™ HotStart PCR Genotyping Master Mix (With Dye) | Robustness across variable templates at scale |
| Cloning, mutagenesis, sequencing templates | Plus High-Fidelity DNA Polymerase | Proofreading — reduced error rate |
| Long amplicons (>5 kb) | Hieff Canace™ High-Fidelity Long PCR Master Mix · Hieff Canace™ Veritas Long PCR Master Mix (No Dye) | Processivity plus proofreading |
| Multiplex competition and dropout | Hieff™ Multiplex PCR Master Mix · 2×Hieff NGS™ HG Multiplex PCR Master Mix | Higher primer loads; balanced amplification |
| Blood, plasma, chelator-containing samples | Hieff UNICON™ HotStart Direct Taq, 5 U/μL · 50 U/μL format | Inhibitor tolerance without extraction |
| Building reactions from components | Hieff UNICON™ HotStart Taq, 5 U/μL · Hieff™ Taq DNA Polymerase | Independent titration of Mg²⁺, dNTPs, enzyme |
| Dye-based qPCR quantification | Hieff Unicon™ Universal Blue qPCR Master Mix (SYBR Green) · ColorGPS qPCR Master Mix (Low Rox) | Instrument-matched passive reference |
| Probe-based and multiplex qPCR | Hieff Unicon™ qPCR TaqMan Probe Master Mix · Universal Multiplex qPCR Master Mix (Probe Based) | Sequence-specific detection; channel balance |
| gDNA carryover in RT-qPCR | Hifair™ Ⅲ 1st Strand cDNA Synthesis SuperMix (gDNA Digester Plus) | Integrated gDNA removal |
| RT step optimization | Hifair™ V Reverse Transcriptase | Independent control of the RT step |
| Amplicon carryover contamination | Uracil DNA Glycosylase (UDG/UNG), 1 U/μL | Destroys uracil-containing carryover amplicons |
Frequently Asked Questions About PCR Optimization
Where should I start if a PCR has never worked?
An annealing temperature gradient with a positive control on the same plate. The gradient is the highest-information single experiment available, and the positive control tells you whether the problem is the assay or the setup. Only move to Mg²⁺ or additives once you know the primers can produce a product at some temperature.
If I use a master mix, what is left to optimize?
A great deal: primer design, primer concentration, annealing temperature, extension time, cycle number, and template input remain in your hands — and account for most optimization work anyway. The trade-off is that when a master mix is genuinely the wrong formulation, you switch mixes rather than titrate.
Is hot start always worth it?
For multiplexing, low-copy templates, room-temperature setup of many reactions, or dimer-prone primers — yes. Mispriming during setup gets extended by an active polymerase and becomes a competing template; hot start prevents that (Chou et al., 1992). For a single robust amplicon set up on ice, the benefit is smaller.
Should I always use a high-fidelity polymerase?
No. Fidelity matters when the product will be propagated, expressed, or sequenced. For genotyping and most qPCR, the product is scored rather than read, and Taq-based chemistry is entirely adequate — often more robust and less expensive.
My qPCR efficiency is 78%. Is the assay unusable?
It needs investigation before use. The most common cause is inhibitors carried through from template preparation — revealed as efficiency that improves on dilution. Efficiency substantially outside ~90–110% means relative quantification will systematically misestimate fold-changes (Bustin et al., 2009).
One-step or two-step RT-qPCR?
Two-step separates cDNA synthesis from amplification — each has its own optimum and one cDNA prep feeds many assays, better while optimizing or with limited RNA. One-step reduces handling and contamination risk, suiting validated high-throughput assays, at the cost of coupled RT and PCR conditions.
Can I optimize my way out of a bad primer pair?
Usually not — and this is the most common way optimization time gets wasted. If the pair has strong 3′ complementarity or multiple genomic binding sites, no combination of temperature, Mg²⁺, or additive reliably fixes it. If a gradient plus a Mg²⁺ titration has not produced a clean single product, redesign is faster.
How do I stop amplicon contamination once it has happened?
Replace every shared reagent aliquot, decontaminate surfaces and pipettes, and separate pre- and post-PCR areas. Then prevent recurrence enzymatically: dUTP in place of dTTP so amplicons carry uracil, plus uracil-DNA glycosylase in each new reaction (Longo et al., 1990). Heat-labile UDG is inactivated during initial denaturation and does not degrade new product.
References
- Innis MA, Myambo KB, Gelfand DH, Brow MA. DNA sequencing with Thermus aquaticus DNA polymerase and direct sequencing of PCR-amplified DNA. Proc Natl Acad Sci USA. 1988;85(24):9436–9440. PMID: 3200828
- Chou Q, Russell M, Birch DE, Raymond J, Bloch W. Prevention of pre-PCR mis-priming and primer dimerization improves low-copy-number amplifications. Nucleic Acids Res. 1992;20(7):1717–1723. PMID: 1579465
- Bustin SA, Benes V, Garson JA, et al. The MIQE guidelines: minimum information for publication of quantitative real-time PCR experiments. Clin Chem. 2009;55(4):611–622. PMID: 19246619
- Henke W, Herdel K, Jung K, Schnorr D, Loening SA. Betaine improves the PCR amplification of GC-rich DNA sequences. Nucleic Acids Res. 1997;25(19):3957–3958. PMID: 9380524
- Longo MC, Berninger MS, Hartley JL. Use of uracil DNA glycosylase to control carry-over contamination in polymerase chain reactions. Gene. 1990;93(1):125–128. PMID: 2227421
- Schrader C, Schielke A, Ellerbroek L, Johne R. PCR inhibitors — occurrence, properties and removal. J Appl Microbiol. 2012;113(5):1014–1026. PMID: 22747964
- Cline J, Braman JC, Hogrefe HH. PCR fidelity of Pfu DNA polymerase and other thermostable DNA polymerases. Nucleic Acids Res. 1996;24(18):3546–3551. PMID: 8836181
Scope the right chemistry for your target. Most optimization time is spent compensating for a formulation that was never intended for the target in front of you. If you are working on a GC-rich locus, a multi-kilobase amplicon, a crowded multiplex panel, or a crude sample type, talk to a BioHippo specialist or browse the PCR & qPCR reagent range.
Working ranges in this guide are conventional starting points and are not a substitute for the conditions specified in a given product's documentation. Products referenced are For Research Use Only unless otherwise stated on the product page. This guide does not constitute a validated protocol for diagnostic use.
