12 Well Glass Bottom Plates
Cellvis 12-well plates with a black frame and lid, offered with a #1.5 high performance cover glass bottom (0.170 ± 0.005 mm) or a tissue culture treated #1.5 glass-like polymer coverslip bottom. Gamma sterilized, conforming to ANSI/SBS 1-2004 and intended for high resolution imaging, for example confocal microscopy.
Choose Coverslip, then Packaging.
Overview
What is 12 Well Glass Bottom Plates?
Product Overview

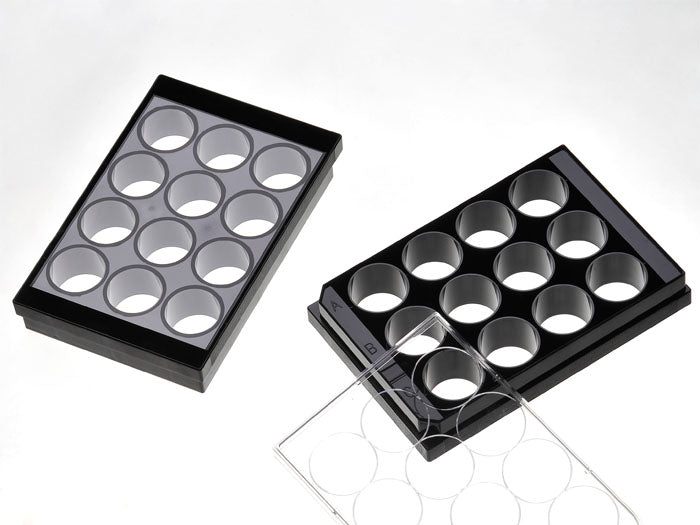

The Cellvis 12-well plate has a black frame with a lid and is intended for high resolution imaging, for example confocal microscopy. It is offered with a #1.5 high performance cover glass bottom (0.170 ± 0.005 mm, P12-1.5H-N) or with a tissue culture treated #1.5 glass-like polymer coverslip bottom (0.175 ± 0.010 mm, P12-1.5P).
Cellvis recommends the polymer coverslip format when better cell attachment is needed, and does not recommend it where flatness across the whole plate is critical.
Key Features
- Suitable for long-term tissue culture
- Manufactured in a class 100,000 clean room
- Frame made from virgin polystyrene
- P12-1.5H-N: high optical quality German cover glass, 0.170 ± 0.005 mm thick
- P12-1.5P: tissue culture treated #1.5 glass-like polymer coverslip (0.175 ± 0.010 mm) for better cell attachment
- Coverslip bonded to the plate with a USP class VI adhesive
- Sterilized by gamma radiation
- Conforms to ANSI/SBS 1-2004 standards
- Black frame, with lid
Imaging Compatibility
Cellvis lists the cover glass format (P12-1.5H-N) as suitable for all of the techniques below. The polymer coverslip format (P12-1.5P) is listed for the same techniques except Total Internal Reflection Fluorescence (TIRF), for which it is not suitable.
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Cellvis recommends P12-1.5H-N for confocal microscopy and super-resolution microscopy, and P12-1.5P for confocal microscopy.
Available Formats
| Catalog No. | Coverslip | Frame | Pack Size |
|---|---|---|---|
| P12-1.5H-N | #1.5H cover glass (0.170 ± 0.005 mm) | Black, with lid | 20/case, individually packed |
| P12-1.5P | #1.5 glass-like polymer (0.175 ± 0.010 mm), tissue culture treated | Black, with lid | 20/case |
Specifications
| Wells | 12 |
|---|---|
| Frame Color | Black |
| Coverslip | #1.5 high performance cover glass (0.170 ± 0.005 mm) or #1.5 glass-like polymer (0.175 ± 0.010 mm) |
| Length | 127.50 mm |
| Width | 85.35 mm |
| Height | 19.95 mm |
| Height with Lid | 22.50 mm |
| Stacking Height (with Lid) | 19.45 mm |
| Bottom Height | 0.83 mm (bottom of coverslip to plate bottom) |
| Bottom Height Tolerance | ± 50 μm, whole plate (P12-1.5H-N) |
| Well to Well Center Distance | 26.00 mm |
| Well Bottom Area | 382 mm² |
| Maximum Volume | 7.2 ml |
| Temperature Range | -20°C to 50°C |
| Frame Material | Virgin polystyrene |
| Sterilization | Gamma radiation |
| Plate Standard | ANSI/SBS 1-2004 |
| Pack Size | 20/case |
Source: Cellvis published specifications.
Details
Specifications
Applications
Applications & how to use
Confocal Microscopy
Super-Resolution Microscopy
Differential Interference Contrast (DIC)
Widefield Fluorescence
Two-Photon and Multiphoton Microscopy
Fluorescence Recovery After Photobleaching (FRAP)
Förster Resonance Energy Transfer (FRET)
Fluorescence Lifetime Imaging Microscopy (FLIM)
Total Internal Reflection Fluorescence (TIRF)
Cell Culture (Growth)
Routine expansion and maintenance of cell lines in adherent or suspension format. Reagent quality directly affects doubling time, morphology and the reproducibility of any downstream assay.
Evidence
Validation & QC
Validation data for this product isn’t published yet.
Need specific QC or validation results — titer, purity, endotoxin, or assay data — for your application? Our scientific team can share what is available for this product and lot on request.
Request validation dataManufacturing
How it's made & quality control
Supplier quality control
Manufactured in a class 100,000 clean room.
A USP class VI adhesive is used to bond the coverslip on glass bottom products.
Most products are sterilized by gamma radiation; each product page lists the coverslip type, thickness and dimensions.
Supplier-level quality statement. For lot-specific results, request the Certificate of Analysis for your batch.
Questions
Frequently asked questions
What is the difference between P12-1.5H-N and P12-1.5P?
The coverslip. P12-1.5H-N has a #1.5 high performance cover glass (0.170 ± 0.005 mm). P12-1.5P has a tissue culture treated #1.5 glass-like polymer coverslip (0.175 ± 0.010 mm).
When should the polymer coverslip format be chosen?
Cellvis recommends P12-1.5P when better cell attachment is needed. It is not suitable for Total Internal Reflection Fluorescence (TIRF) and is not recommended where flatness across the whole plate is critical.
What is the well bottom area and maximum volume?
The well bottom area is 382 mm² and the maximum volume is 7.2 ml.
What are the plate dimensions?
The plate is 127.50 mm long and 85.35 mm wide. It is 19.95 mm high, or 22.50 mm with the lid.
How many plates are in a case?
20 per case.
