35 mm Glass Bottom Dishes
Cellvis 35 mm glass bottom dishes for microscopy imaging, all listed by Cellvis as suitable for confocal microscopy. Offered with a 10, 14, 20 or 28 mm micro-well and #0, #1 or #1.5 cover glass, plus gridded cover glass, #1.5 high performance cover glass and #1.5 glass-like polymer coverslip formats. Tissue culture treated polystyrene dish, gamma sterilized.
| Catalog No. | Micro-Well Size | Coverslip | Packaging | Availability | Price | Qty | Order |
|---|---|---|---|---|---|---|---|
| D35-10-0-N | 10 mm | #0 cover glass (0.085-0.115 mm) | 100/case | In Stock at Manufacturer | $200.00 |
|
|
| D35-10-1-N | 10 mm | #1 cover glass (0.13-0.16 mm) | 100/case | In Stock at Manufacturer | $200.00 |
|
|
| D35-10-1.5-N | 10 mm | #1.5 cover glass (0.16-0.19 mm) | 100/case | In Stock at Manufacturer | $200.00 |
|
|
| D35-14-0-N | 14 mm | #0 cover glass (0.085-0.115 mm) | 100/case | In Stock at Manufacturer | $208.00 |
|
|
| D35-14-1-N | 14 mm | #1 cover glass (0.13-0.16 mm) | 100/case | In Stock at Manufacturer | $208.00 |
|
|
| D35-14-1.5-N | 14 mm | #1.5 cover glass (0.16-0.19 mm) | 100/case | In Stock at Manufacturer | $208.00 |
|
|
| D35-14-1.5GI | 14 mm | #1.5 gridded cover glass, grid on interior (0.16-0.19 mm) | 48/case | In Stock at Manufacturer | $497.00 |
|
|
| D35-14-1.5GO | 14 mm | #1.5 gridded cover glass, grid on exterior (0.16-0.19 mm) | 48/case | In Stock at Manufacturer | $497.00 |
|
|
| D35-14-1.5P | 14 mm | #1.5 glass-like polymer (0.175 ± 0.010 mm) | 100/case | In Stock at Manufacturer | $272.00 |
|
|
| D35-20-0-N | 20 mm | #0 cover glass (0.085-0.115 mm) | 100/case | In Stock at Manufacturer | $208.00 |
|
|
| D35-20-1-N | 20 mm | #1 cover glass (0.13-0.16 mm) | 100/case | In Stock at Manufacturer | $208.00 |
|
|
| D35-20-1.5-N | 20 mm | #1.5 cover glass (0.16-0.19 mm) | 100/case | In Stock at Manufacturer | $208.00 |
|
|
| D35-20-1.5H | 20 mm | #1.5H cover glass (0.170 ± 0.005 mm) | 100/case | In Stock at Manufacturer | $388.00 |
|
|
| D35-20-1.5P | 20 mm | #1.5 glass-like polymer (0.175 ± 0.010 mm) | 100/case | In Stock at Manufacturer | $272.00 |
|
|
| D35-28-0-N | 28 mm | #0 cover glass (0.085-0.115 mm) | 100/case | In Stock at Manufacturer | $387.00 |
|
|
| D35-28-1-N | 28 mm | #1 cover glass (0.13-0.16 mm) | 100/case | In Stock at Manufacturer | $387.00 |
|
|
| D35-28-1.5-N | 28 mm | #1.5 cover glass (0.16-0.19 mm) | 100/case | In Stock at Manufacturer | $387.00 |
|
Choose Micro-Well Size, then Coverslip.
Overview
What is 35 mm Glass Bottom Dishes?
Product Overview

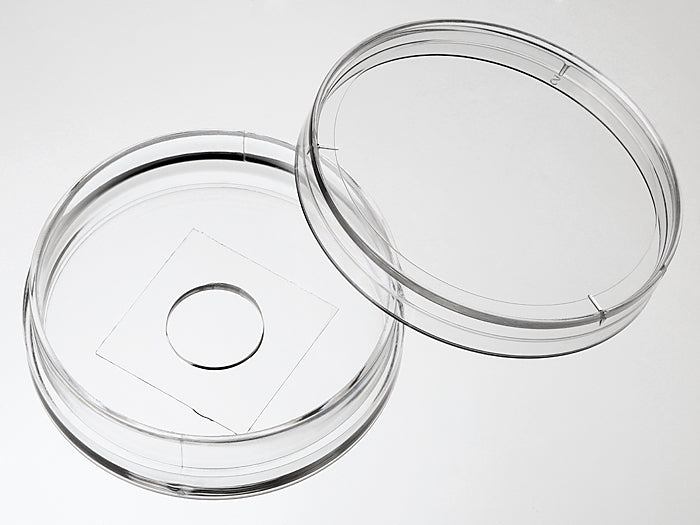

Cellvis 35 mm glass bottom dishes have a micro-well with a coverslip bottom (cover glass, or glass-like polymer in the 1.5P formats). Cellvis lists all formats as suitable for confocal microscopy. They are offered with a 10 mm, 14 mm, 20 mm or 28 mm micro-well and with #0, #1 or #1.5 cover glass.
Additional formats: #1.5 gridded cover glass with the 14 mm micro-well (D35-14-1.5GI, D35-14-1.5GO), #1.5 high performance cover glass (0.170 ± 0.005 mm) with the 20 mm micro-well (D35-20-1.5H), and a #1.5 glass-like polymer coverslip (0.175 ± 0.010 mm) with the 14 mm or 20 mm micro-well (D35-14-1.5P, D35-20-1.5P). Cellvis recommends the polymer coverslip when better cell attachment is needed.
On the gridded dishes a 20 x 26 grid is etched onto the cover glass. On D35-14-1.5GI the grid is on the interior, so the grid and the cultured cells are on the same focal plane; on D35-14-1.5GO the grid is on the exterior, so they are on different focal planes.
Key Features
- Suitable for long-term tissue culture (stated by Cellvis for the 10 mm, 14 mm and 20 mm micro-well formats)
- Manufactured in a class 100,000 clean room
- Dish made from virgin polystyrene, tissue culture treated
- Cover glass formats: high optical quality German cover glass
- Coverslip bonded to the dish with a USP class VI adhesive
- Packed in an easy-to-open peelable bag
- Sterilized by gamma radiation
- D35-14-1.5P and D35-20-1.5P: #1.5 glass-like polymer coverslip (0.175 ± 0.010 mm) for better cell attachment, in place of cover glass
- D35-14-1.5GI and D35-14-1.5GO: 20 x 26 grid etched onto the cover glass
Imaging Compatibility
Cellvis lists the cover glass formats as suitable for all of the techniques below. The polymer coverslip formats (D35-14-1.5P, D35-20-1.5P) are listed for the same techniques except Total Internal Reflection Fluorescence (TIRF), for which they are not suitable.
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Cellvis recommends the #1.5 cover glass formats (including the gridded formats) and the polymer coverslip formats for confocal microscopy, and D35-20-1.5H for confocal microscopy and super-resolution microscopy.
Available Formats
| Catalog No. | Micro-Well Size | Coverslip | Pack Size |
|---|---|---|---|
| D35-10-0-N | 10 mm | #0 cover glass (0.085-0.115 mm) | 100/case |
| D35-10-1-N | 10 mm | #1 cover glass (0.13-0.16 mm) | 100/case |
| D35-10-1.5-N | 10 mm | #1.5 cover glass (0.16-0.19 mm) | 100/case |
| D35-14-0-N | 14 mm | #0 cover glass (0.085-0.115 mm) | 100/case |
| D35-14-1-N | 14 mm | #1 cover glass (0.13-0.16 mm) | 100/case |
| D35-14-1.5-N | 14 mm | #1.5 cover glass (0.16-0.19 mm) | 100/case |
| D35-14-1.5GI | 14 mm | #1.5 gridded cover glass, grid on interior (0.16-0.19 mm) | 48/case |
| D35-14-1.5GO | 14 mm | #1.5 gridded cover glass, grid on exterior (0.16-0.19 mm) | 48/case |
| D35-14-1.5P | 14 mm | #1.5 glass-like polymer (0.175 ± 0.010 mm) | 100/case |
| D35-20-0-N | 20 mm | #0 cover glass (0.085-0.115 mm) | 100/case |
| D35-20-1-N | 20 mm | #1 cover glass (0.13-0.16 mm) | 100/case |
| D35-20-1.5-N | 20 mm | #1.5 cover glass (0.16-0.19 mm) | 100/case |
| D35-20-1.5H | 20 mm | #1.5H cover glass (0.170 ± 0.005 mm) | 100/case |
| D35-20-1.5P | 20 mm | #1.5 glass-like polymer (0.175 ± 0.010 mm) | 100/case |
| D35-28-0-N | 28 mm | #0 cover glass (0.085-0.115 mm) | 100/case |
| D35-28-1-N | 28 mm | #1 cover glass (0.13-0.16 mm) | 100/case |
| D35-28-1.5-N | 28 mm | #1.5 cover glass (0.16-0.19 mm) | 100/case |
Specifications
| Dish Size | 35 mm |
|---|---|
| Micro-Well Size | 10 mm, 14 mm, 20 mm or 28 mm |
| Coverslip | #0 (0.085-0.115 mm), #1 (0.13-0.16 mm) or #1.5 (0.16-0.19 mm) cover glass; #1.5H cover glass (0.170 ± 0.005 mm), #1.5 glass-like polymer (0.175 ± 0.010 mm) or #1.5 gridded cover glass in selected formats |
| Grid (D35-14-1.5GI, D35-14-1.5GO) | 20 x 26 grid, 0.6 mm x 0.6 mm each; interior of the cover glass (GI) or exterior (GO) |
| Lid Outer Diameter | 40 mm |
| Temperature Range | -20°C to 50°C |
| Dish Material | Virgin polystyrene, tissue culture treated |
| Sterilization | Gamma radiation |
| Pack Size | 100/case; 48/case for D35-14-1.5GI and D35-14-1.5GO |
Source: Cellvis published specifications.
Details
Specifications
Applications
Applications & how to use
Confocal Microscopy
Super-Resolution Microscopy
Differential Interference Contrast (DIC)
Widefield Fluorescence
Two-Photon and Multiphoton Microscopy
Fluorescence Recovery After Photobleaching (FRAP)
Förster Resonance Energy Transfer (FRET)
Fluorescence Lifetime Imaging Microscopy (FLIM)
Total Internal Reflection Fluorescence (TIRF)
Cell Culture (Growth)
Routine expansion and maintenance of cell lines in adherent or suspension format. Reagent quality directly affects doubling time, morphology and the reproducibility of any downstream assay.
Evidence
Validation & QC
Validation data for this product isn’t published yet.
Need specific QC or validation results — titer, purity, endotoxin, or assay data — for your application? Our scientific team can share what is available for this product and lot on request.
Request validation dataManufacturing
How it's made & quality control
Supplier quality control
Manufactured in a class 100,000 clean room.
A USP class VI adhesive is used to bond the coverslip on glass bottom products.
Most products are sterilized by gamma radiation; each product page lists the coverslip type, thickness and dimensions.
Supplier-level quality statement. For lot-specific results, request the Certificate of Analysis for your batch.
Questions
Frequently asked questions
Which micro-well sizes and coverslips are available?
10 mm, 14 mm, 20 mm and 28 mm micro-wells, each with #0 (0.085-0.115 mm), #1 (0.13-0.16 mm) or #1.5 (0.16-0.19 mm) cover glass. The 14 mm micro-well is also available with gridded #1.5 cover glass and with a #1.5 glass-like polymer coverslip; the 20 mm micro-well is also available with #1.5H cover glass (0.170 ± 0.005 mm) and with a #1.5 glass-like polymer coverslip.
What is the difference between D35-14-1.5GI and D35-14-1.5GO?
Both have a 20 x 26 grid (0.6 mm x 0.6 mm each) etched onto #1.5 cover glass. On D35-14-1.5GI the grid is on the interior of the cover glass, so the grid and the cultured cells are on the same focal plane. On D35-14-1.5GO the grid is on the exterior, so they are on different focal planes.
When should a polymer coverslip format be chosen?
Cellvis recommends D35-14-1.5P and D35-20-1.5P when better cell attachment is needed. They are not suitable for Total Internal Reflection Fluorescence (TIRF).
How many dishes are in a case?
100 per case, except the gridded formats D35-14-1.5GI and D35-14-1.5GO, which are 48 per case.
