6 Micro-Well Glass Bottom Plates
Cellvis 6 micro-well glass bottom plates with a transparent frame and lid, offered with a 14 mm micro-well (#0, #1 or #1.5 cover glass) or a 20 mm micro-well (#1 or #1.5 cover glass). Tissue culture treated polystyrene plate, gamma sterilized, conforming to ANSI/SBS 1-2004 and intended for high resolution imaging, for example confocal microscopy.
| Catalog No. | Micro-Well Size | Coverslip | Packaging | Availability | Price | Qty | Order |
|---|---|---|---|---|---|---|---|
| P06-14-0-N | 14 mm | #0 cover glass (0.085-0.115 mm) | 20/case | In Stock at Manufacturer | $299.00 |
|
|
| P06-14-1-N | 14 mm | #1 cover glass (0.13-0.16 mm) | 20/case | In Stock at Manufacturer | $299.00 |
|
|
| P06-14-1.5-N | 14 mm | #1.5 cover glass (0.16-0.19 mm) | 20/case | In Stock at Manufacturer | $299.00 |
|
|
| P06-20-1-N | 20 mm | #1 cover glass (0.13-0.16 mm) | 20/case | In Stock at Manufacturer | $299.00 |
|
|
| P06-20-1.5-N | 20 mm | #1.5 cover glass (0.16-0.19 mm) | 20/case | In Stock at Manufacturer | $299.00 |
|
Choose Micro-Well Size, then Coverslip.
Overview
What is 6 Micro-Well Glass Bottom Plates?
Product Overview

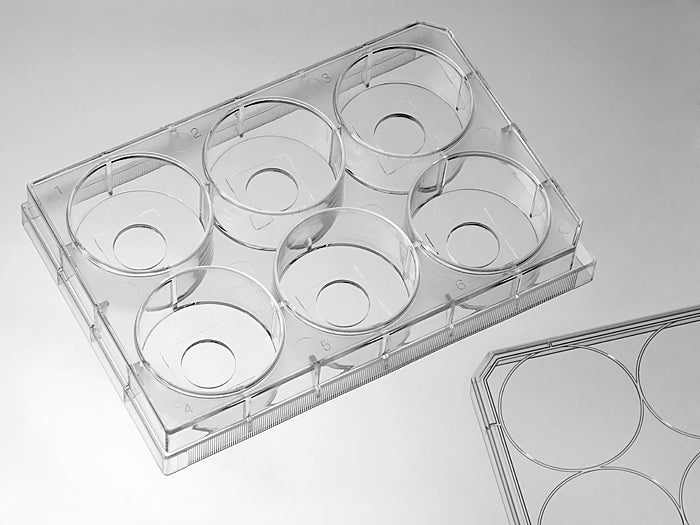

The Cellvis 6 micro-well glass bottom plate is a 6-well plate with a transparent frame and glass bottom micro-wells. It is supplied with a lid and is intended for high resolution imaging, for example confocal microscopy.
It is offered with a 14 mm micro-well and #0, #1 or #1.5 cover glass, or with a 20 mm micro-well and #1 or #1.5 cover glass.
Key Features
- Suitable for long-term tissue culture (stated by Cellvis for the 20 mm micro-well formats)
- Manufactured in a class 100,000 clean room
- Plate made from virgin polystyrene, tissue culture treated
- High optical quality German cover glass
- Cover glass bonded to the plate with a USP class VI adhesive
- Sterilized by gamma radiation
- Conforms to ANSI/SBS 1-2004 standards
- Transparent frame, with lid
Imaging Compatibility
Cellvis lists this product as suitable for:
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Cellvis recommends the #1.5 cover glass formats (P06-14-1.5-N, P06-20-1.5-N) for confocal microscopy.
Available Formats
| Catalog No. | Micro-Well Size | Coverslip | Pack Size |
|---|---|---|---|
| P06-14-0-N | 14 mm | #0 cover glass (0.085-0.115 mm) | 20/case |
| P06-14-1-N | 14 mm | #1 cover glass (0.13-0.16 mm) | 20/case |
| P06-14-1.5-N | 14 mm | #1.5 cover glass (0.16-0.19 mm) | 20/case |
| P06-20-1-N | 20 mm | #1 cover glass (0.13-0.16 mm) | 20/case |
| P06-20-1.5-N | 20 mm | #1.5 cover glass (0.16-0.19 mm) | 20/case |
Specifications
| Wells | 6 |
|---|---|
| Frame Color | Transparent |
| Micro-Well Size | 14 mm or 20 mm |
| Coverslip | #0 (0.085-0.115 mm, 14 mm micro-well only), #1 (0.13-0.16 mm) or #1.5 (0.16-0.19 mm) cover glass |
| Length | 127.61 mm |
| Width | 85.42 mm |
| Height | 20.1 mm |
| Height with Lid | 22.5 mm |
| Stacking Height (with Lid) | 19.5 mm |
| Micro-Well Depth | 1.4 mm |
| Temperature Range | -20°C to 50°C |
| Plate Material | Virgin polystyrene, tissue culture treated |
| Sterilization | Gamma radiation |
| Plate Standard | ANSI/SBS 1-2004 |
| Pack Size | 20/case |
Source: Cellvis published specifications.
Details
Specifications
Applications
Applications & how to use
Confocal Microscopy
Super-Resolution Microscopy
Differential Interference Contrast (DIC)
Widefield Fluorescence
Two-Photon and Multiphoton Microscopy
Fluorescence Recovery After Photobleaching (FRAP)
Förster Resonance Energy Transfer (FRET)
Fluorescence Lifetime Imaging Microscopy (FLIM)
Total Internal Reflection Fluorescence (TIRF)
Cell Culture (Growth)
Routine expansion and maintenance of cell lines in adherent or suspension format. Reagent quality directly affects doubling time, morphology and the reproducibility of any downstream assay.
Evidence
Validation & QC
Validation data for this product isn’t published yet.
Need specific QC or validation results — titer, purity, endotoxin, or assay data — for your application? Our scientific team can share what is available for this product and lot on request.
Request validation dataManufacturing
How it's made & quality control
Supplier quality control
Manufactured in a class 100,000 clean room.
A USP class VI adhesive is used to bond the coverslip on glass bottom products.
Most products are sterilized by gamma radiation; each product page lists the coverslip type, thickness and dimensions.
Supplier-level quality statement. For lot-specific results, request the Certificate of Analysis for your batch.
Questions
Frequently asked questions
Which micro-well sizes and cover glass thicknesses are available?
A 14 mm micro-well with #0 (0.085-0.115 mm), #1 (0.13-0.16 mm) or #1.5 (0.16-0.19 mm) cover glass, and a 20 mm micro-well with #1 or #1.5 cover glass.
How is this plate different from the 6 well glass bottom plate?
This plate has 14 mm or 20 mm glass bottom micro-wells, 1.4 mm deep, in a transparent frame, with #0, #1 or #1.5 cover glass. The 6 well glass bottom plate (P06-1.5H-N) has a black frame and #1.5 high performance cover glass.
What are the plate dimensions?
The plate is 127.61 mm long and 85.42 mm wide. It is 20.1 mm high, or 22.5 mm with the lid.
What is the plate made from, and is it sterilized?
The plate is made from virgin polystyrene, tissue culture treated, and is sterilized by gamma radiation.
How many plates are in a case?
20 per case.
