6 Well Glass Bottom Plates
Cellvis 6-well glass bottom plate with a #1.5 high performance cover glass bottom (0.170 ± 0.005 mm), black frame and lid. Individually packed, gamma sterilized and conforming to ANSI/SBS 1-2004, it is intended for high resolution imaging, for example confocal microscopy.
| Catalog No. | Coverslip | Packaging | Availability | Price | Qty | Order |
|---|---|---|---|---|---|---|
| P06-1.5H-N | #1.5H cover glass (0.170 ± 0.005 mm) | 20/case | In Stock at Manufacturer | $416.00 |
|
Overview
What is 6 Well Glass Bottom Plates?
Product Overview

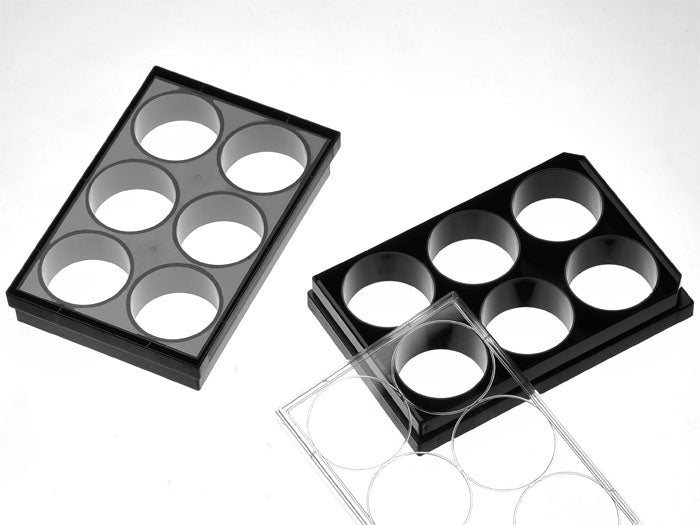

The Cellvis 6-well glass bottom plate has a #1.5 high performance cover glass bottom (0.170 ± 0.005 mm) in a black frame, with a lid. Plates are individually packed and are intended for high resolution imaging, for example confocal microscopy.
According to Cellvis, the 6-well format is a common choice for experiments requiring a medium to large sample size.
Key Features
- Suitable for long-term tissue culture
- Manufactured in a class 100,000 clean room
- Frame made from virgin polystyrene
- High optical quality German cover glass, 0.170 ± 0.005 mm thick
- Cover glass bonded to the frame with a USP class VI adhesive
- Sterilized by gamma radiation
- Conforms to ANSI/SBS 1-2004 standards
- Black frame, with lid; individually packed
Imaging Compatibility
Cellvis lists this product as suitable for:
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Cellvis recommends this product for confocal microscopy and super-resolution microscopy.
Available Formats
| Catalog No. | Coverslip | Frame | Pack Size |
|---|---|---|---|
| P06-1.5H-N | #1.5H cover glass (0.170 ± 0.005 mm) | Black, with lid | 20/case |
Specifications
| Wells | 6 |
|---|---|
| Frame Color | Black |
| Coverslip | #1.5 high performance cover glass (0.170 ± 0.005 mm) |
| Bottom Length | 127.50 mm |
| Bottom Width | 85.30 mm |
| Height | 20 mm |
| Height with Lid | 22.5 mm |
| Stacking Height | 19.5 mm |
| Bottom Height | 0.83 mm (bottom of coverslip to plate bottom) |
| Bottom Height Tolerance | ± 50 μm (whole plate) |
| Well Bottom Area | 958 mm² |
| Maximum Volume | 18 ml |
| Temperature Range | -20°C to 50°C |
| Frame Material | Virgin polystyrene |
| Sterilization | Gamma radiation |
| Plate Standard | ANSI/SBS 1-2004 |
| Pack Size | 20/case, individually packed |
Source: Cellvis published specifications.
Details
Specifications
Applications
Applications & how to use
Confocal Microscopy
Super-Resolution Microscopy
Differential Interference Contrast (DIC)
Widefield Fluorescence
Two-Photon and Multiphoton Microscopy
Fluorescence Recovery After Photobleaching (FRAP)
Förster Resonance Energy Transfer (FRET)
Fluorescence Lifetime Imaging Microscopy (FLIM)
Total Internal Reflection Fluorescence (TIRF)
Cell Culture (Growth)
Routine expansion and maintenance of cell lines in adherent or suspension format. Reagent quality directly affects doubling time, morphology and the reproducibility of any downstream assay.
Evidence
Validation & QC
Validation data for this product isn’t published yet.
Need specific QC or validation results — titer, purity, endotoxin, or assay data — for your application? Our scientific team can share what is available for this product and lot on request.
Request validation dataManufacturing
How it's made & quality control
Supplier quality control
Manufactured in a class 100,000 clean room.
A USP class VI adhesive is used to bond the coverslip on glass bottom products.
Most products are sterilized by gamma radiation; each product page lists the coverslip type, thickness and dimensions.
Supplier-level quality statement. For lot-specific results, request the Certificate of Analysis for your batch.
Questions
Frequently asked questions
What cover glass is used on this plate?
A #1.5 high performance German cover glass, 0.170 ± 0.005 mm thick.
What are the plate dimensions?
The bottom is 127.50 x 85.30 mm. The plate is 20 mm high, or 22.5 mm with the lid.
What is the well bottom area and maximum volume?
The well bottom area is 958 mm² and the maximum volume is 18 ml.
Is it sterilized?
Yes. Plates are sterilized by gamma radiation, supplied with a lid and individually packed.
How many plates are in a case?
20 per case.
