Single Well Glass Bottom Plates

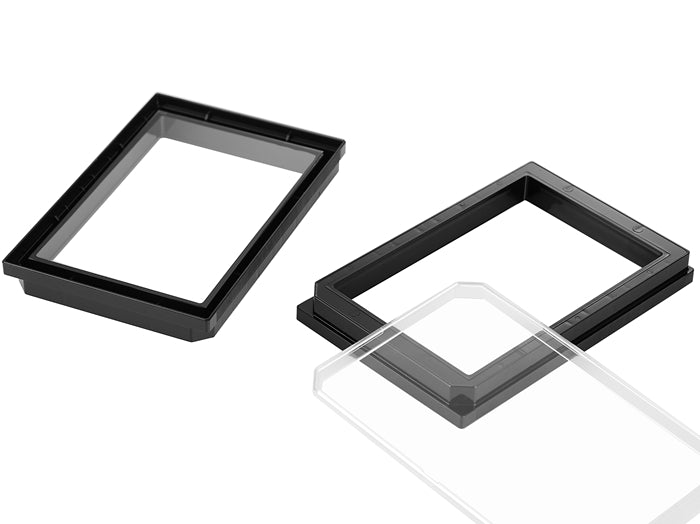

Cellvis single well glass bottom plate with a #1.5 high performance cover glass bottom (0.170 ± 0.005 mm), black frame and lid. Individually packed, gamma sterilized and conforming to ANSI/SBS 1-2004, it is intended for high resolution imaging, for example confocal microscopy.
| Catalog No. | Coverslip | Packaging | Availability | Price | Qty | Order |
|---|---|---|---|---|---|---|
| P01-1.5H | #1.5H cover glass (0.170 ± 0.005 mm) | 20/case | In Stock at Manufacturer | $416.00 |
|
Overview
What is Single Well Glass Bottom Plates?
Product Overview
The Cellvis single well glass bottom plate has a #1.5 high performance cover glass bottom (0.170 ± 0.005 mm) in a black frame, with a lid. Plates are individually packed and are intended for high resolution imaging, for example confocal microscopy.
Key Features
- Suitable for long-term tissue culture
- Manufactured in a class 100,000 clean room
- Frame made from virgin polystyrene
- High optical quality German cover glass, 0.170 ± 0.005 mm thick
- Cover glass bonded to the plate with a USP class VI adhesive
- Sterilized by gamma radiation
- Conforms to ANSI/SBS 1-2004 standards
- Black frame, with lid; individually packed
Imaging Compatibility
Cellvis lists this product as suitable for:
- Differential Interference Contrast (DIC)
- Widefield Fluorescence
- Confocal Microscopy
- Two-Photon and Multiphoton Microscopy
- Fluorescence Recovery After Photobleaching (FRAP)
- Förster Resonance Energy Transfer (FRET)
- Fluorescence Lifetime Imaging Microscopy (FLIM)
- Total Internal Reflection Fluorescence (TIRF)
- Super-Resolution Microscopy
Cellvis recommends this product for confocal microscopy and super-resolution microscopy.
Available Formats
| Catalog No. | Coverslip | Frame | Pack Size |
|---|---|---|---|
| P01-1.5H | #1.5H cover glass (0.170 ± 0.005 mm) | Black, with lid | 20/case |
Specifications
| Wells | 1 |
|---|---|
| Frame Color | Black |
| Coverslip | #1.5 high performance cover glass (0.170 ± 0.005 mm) |
| Length | 127.6 mm |
| Width | 85.6 mm |
| Height | 14.33 mm |
| Height with Lid | 16.8 mm |
| Stacking Height (with Lid) | 15.5 mm |
| Bottom Height | 2.78 mm (bottom of coverslip to plate bottom) |
| Lid Dimension | 127 x 85 x 10 mm |
| Frame Material | Virgin polystyrene |
| Sterilization | Gamma radiation |
| Plate Standard | ANSI/SBS 1-2004 |
| Pack Size | 20/case, individually packed |
Source: Cellvis published specifications.
Details
Specifications
Applications
Applications & how to use
Confocal Microscopy
Super-Resolution Microscopy
Differential Interference Contrast (DIC)
Widefield Fluorescence
Two-Photon and Multiphoton Microscopy
Fluorescence Recovery After Photobleaching (FRAP)
Förster Resonance Energy Transfer (FRET)
Fluorescence Lifetime Imaging Microscopy (FLIM)
Total Internal Reflection Fluorescence (TIRF)
Cell Culture (Growth)
Routine expansion and maintenance of cell lines in adherent or suspension format. Reagent quality directly affects doubling time, morphology and the reproducibility of any downstream assay.
Evidence
Validation & QC
Validation data for this product isn’t published yet.
Need specific QC or validation results — titer, purity, endotoxin, or assay data — for your application? Our scientific team can share what is available for this product and lot on request.
Request validation dataManufacturing
How it's made & quality control
Supplier quality control
Manufactured in a class 100,000 clean room.
A USP class VI adhesive is used to bond the coverslip on glass bottom products.
Most products are sterilized by gamma radiation; each product page lists the coverslip type, thickness and dimensions.
Supplier-level quality statement. For lot-specific results, request the Certificate of Analysis for your batch.
Questions
Frequently asked questions
What cover glass is used on this plate?
A #1.5 high performance German cover glass, 0.170 ± 0.005 mm thick.
What are the plate dimensions?
The plate is 127.6 mm long and 85.6 mm wide. It is 14.33 mm high, or 16.8 mm with the lid. The bottom height, from the bottom of the coverslip to the plate bottom, is 2.78 mm.
Is it sterilized?
Yes. Plates are sterilized by gamma radiation, supplied with a lid and individually packed.
How many plates are in a case?
20 per case.
Answered by our team
Questions from researchers
No researcher questions have been answered for this product yet. Ask our technical team and we'll get back to you — approved answers are published here.
Ask our technical team
Reviewed by a scientist — typically answered within one business day.
