A ChR2 expression protocol is a planning document, not a bench procedure: almost every failed optogenetics experiment fails on the whiteboard rather than at the rig. A manipulation that was never specific enough to support the claim, a titer imported from a paper that used a different structure, an expression interval that drifted across a cohort, or a control group that did not isolate the variable under test — these are design faults, and they are fixed before the first injection, not after.

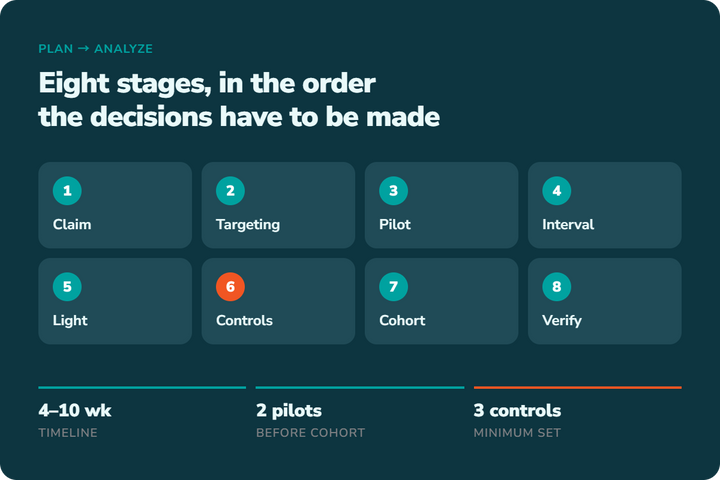

This guide moves through eight stages in the order the decisions actually have to be made, and flags the point in each stage where a choice becomes expensive to reverse. Every number given here is a starting range for a pilot, not a prescription — all of them are region-, species-, and serotype-dependent. It assumes you have already chosen an opsin variant, promoter, and serotype; for the biophysics behind those choices, see the companion guide on how channelrhodopsin-2 constructs work. Vectors referenced throughout are listed under adeno-associated viruses (AAVs) and neuroscience vectors & viruses.
Stage 1 — Write the causal claim before choosing anything
Every downstream decision in a ChR2 expression protocol follows from one sentence: activating population X during epoch Y is sufficient to produce outcome Z. Write it first. Vagueness here propagates — if "population X" is not defined precisely enough to name a promoter, a Cre line, or a projection, then no construct choice can be correct, because there is no criterion for correctness.
Three properties make the claim tractable:
- The population is definable by an available handle — a promoter, a recombinase driver, a projection target, or an intersection of two of these. If it is not, the claim needs narrowing before the experiment can be designed.
- The epoch is bounded. "During the approach" and "throughout the session" imply different opsin kinetics, different pulse protocols, and different heating budgets.
- The outcome is measurable on a defined instrument, with a pre-specified effect size you would consider meaningful.
Sufficiency is not necessity
ChR2 tests sufficiency: does driving this population produce the outcome. It cannot show the population is required — that needs a loss-of-function manipulation. Positive ChR2 results are frequently over-read into necessity claims. Decide at this stage which claim you are making, because the answer determines whether the experiment also needs an inhibitory arm.
Stage 2 — Targeting strategy: choose the narrowest handle that defines your population
Specificity is bought in layers, and each layer costs something — an extra vector, an extra animal line, a longer expression interval, or lower efficiency. Take the cheapest layer that supports the claim, not the most elaborate one.
| If the population is defined by… | Use | Cost |
|---|---|---|
| Anatomy alone | Pan-neuronal promoter, stereotaxic placement | Lowest; no cell-type claim available |
| A molecular marker | Cell-type promoter, or Cre driver line + DIO vector | Cre line availability; promoter leak must be quantified |
| Where it projects | Retrograde vector at the target, or terminal illumination | Longer expression interval; antidromic confound |
| Two markers at once | Intersectional Con/Fon vector, Cre × Flp animals | Double-transgenic cohort; lower expression efficiency |
| Marker × projection | Retrograde Cre at target + DIO-ChR2 at source | Two surgeries; two intervals to control |
Working without a Cre driver line
A Cre-delivering vector substitutes for a driver line when one is unavailable, at the cost of adding a second injection and a second expression interval to control. Retrograde Cre at a projection target paired with a DIO-ChR2 at the source is the standard way to build a projection-defined population in wild-type animals. Fluorophore-tagged Cre vectors let you verify recombinase delivery histologically rather than inferring it.

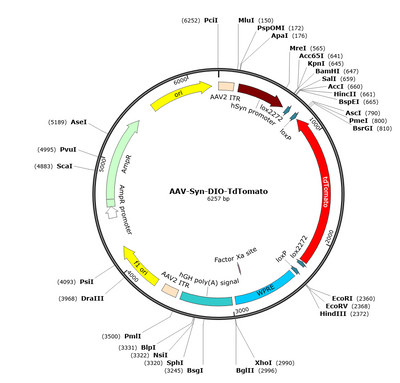

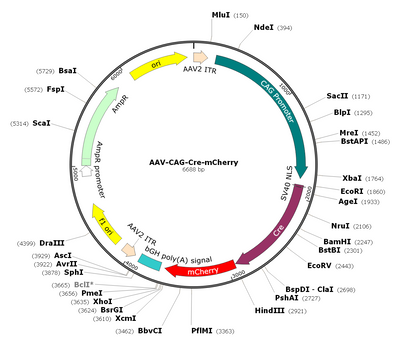

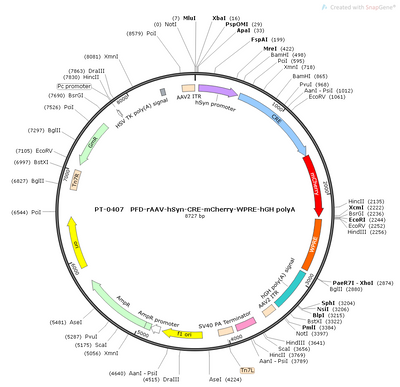

Cre-delivery vectors to pair with any DIO-ChR2 construct: AAV-hSyn-Cre-mCherry · AAV-CaMKIIa-Cre-P2A-mCherry · AAV-CAG-Cre-mCherry (Serotype 2-Retrograde) · AAV-hSyn-fDIO-Cre for Flp-gated Cre.
Lock the reporter channels now
The fluorophore on the ChR2 construct, the fluorophore on the control construct, and any activity sensor all have to occupy separate channels. Resolving this after the vectors arrive means reordering. Write out every channel in the imaging and histology protocol and assign them before purchase.
Stage 3 — Pilot titer and injection volume before committing a cohort
Titer and injection volume set the expressing volume and the per-cell protein load. Both are region-specific, and a value that works in a large structure will over-fill a small one. Budget a pilot group — typically three to five animals across two or three doses — before the experimental cohort.
| Parameter | Common starting range | What moves it |
|---|---|---|
| Working titer | ~1×1012–1×1013 GC/mL | Lower for small nuclei and strong promoters; higher for sparse targets |
| Injection volume | ~100–500 nL per site (mouse) | Structure size; number of sites; desired spread |
| Infusion rate | ~50–100 nL/min | Faster rates increase backflow and tissue damage |
| Post-infusion dwell | ~5–10 min before withdrawal | Shorter dwell increases reflux up the needle tract |
| Sites per structure | 1–3 | Elongated structures need multiple penetrations |
What the pilot has to answer
Not "did it express" — fluorescence is easy to achieve. The pilot answers three questions: does the expressing volume cover the intended structure without spilling into neighbours; do patched cells produce photocurrent sufficient to drive spiking at the intended rate; and do the expressing cells look healthy, with no axonal blebbing or intracellular aggregation. A dose that passes the first test and fails the third is the common trap.
Dilute in the manufacturer-specified buffer and record the exact dilution. A titer stated on the vial is not the titer delivered if the vector was diluted, and cross-cohort comparability depends on that number being written down.
Stage 4 — Fix the ChR2 expression interval and hold it constant
Expression is a moving target: protein accumulates for weeks, and the same animal gives different photocurrents at three weeks and nine weeks. In a ChR2 expression protocol the interval is therefore an experimental variable that must be fixed in advance, not a scheduling convenience.
| Experiment type | Typical interval | Rate-limiting step |
|---|---|---|
| Somatic stimulation at the injection site | ~2–3 weeks | Local protein accumulation |
| Terminal-field stimulation in a projection target | ~4–6 weeks | Axonal transport to distal processes |
| Retrograde vector designs | ~4–6 weeks or longer | Uptake plus retrograde transport plus expression |
| Two-vector intersectional designs | Longest arm governs | Recombinase must precede reporter expression |
The scheduling failure
Cohorts that run over months tend to drift — an animal delayed by a rig booking becomes a nine-week animal in a three-week study. Prolonged high-level ChR2 expression is associated with abnormal axonal morphology and mistargeted synapses in cortex, so a drifted animal is not merely noisier; it may be qualitatively different (Miyashita et al., Front Neural Circuits 2013). Record days post-injection for every animal and treat it as a covariate, not a footnote.
Stage 5 — Specify light delivery in irradiance, not laser power
"10 mW of blue light" is not a reproducible specification. What reaches the tissue depends on fiber core diameter, numerical aperture, coupling efficiency, and distance — and blue light is strongly scattered and absorbed in brain tissue, falling off steeply within the first millimetre (Aravanis et al., J Neural Eng 2007). Report irradiance at the fiber tip in mW/mm2, along with the geometry needed to reconstruct it.
Parameters to pre-specify
- Wavelength — near 470 nm for ChR2; state the source and bandwidth.
- Fiber core diameter and NA — these set the illuminated volume and the divergence.
- Measured output power at the fiber tip, converted to irradiance over the core area.
- Pulse width — commonly a few milliseconds; longer pulses recruit desensitization.
- Frequency and train structure, matched to the kinetics of the variant in use (Mattis et al., Nat Methods 2011).
- Duty cycle and total illumination time, which together govern the thermal load.
Light is also heat
Commonly used illumination protocols raise local tissue temperature by roughly 0.2–2 °C and suppress spiking in multiple brain regions, independently of any opsin (Owen, Liu & Kreitzer, Nat Neurosci 2019). This is not a marginal effect, and it is not controlled by an opsin-negative group unless that group receives identical illumination. Keep duty cycle low where the protocol allows, and treat any sustained-illumination design as requiring an explicit thermal control.
Calibrate before every cohort
Fiber coupling degrades, patch cords develop losses at the connector, and implanted ferrules vary. Measure output at the tip of the actual patch cord and ferrule combination in use, at the start of the cohort and again at the end, and record both numbers.
Stage 6 — Optogenetics controls: what each group actually isolates
This is where interpretability is won or lost. A ChR2 experiment has several confounds running in parallel — the surgery, the vector, the fluorophore, the implant, the light, and the heat the light deposits — and a single control group does not address all of them. The principle is one group per alternative explanation you intend to exclude (Allen, Singer & Boyden, Learn Mem 2015).
| Control group | Rules out | When it is required |
|---|---|---|
| Opsin-negative, reporter-only vector | Vector, surgery, fluorophore, and illumination effects unrelated to ChR2 | Always. This is the minimum viable control. |
| Light-off, opsin-positive | Effects of ChR2 expression itself on baseline excitability | Always. Often run within-animal as an epoch comparison. |
| Off-target site injection | Spread into neighbouring structures explaining the effect | When the target is small or borders a plausible alternative. |
| Wavelength control | Non-specific responses to light delivery per se | When behaviour could be cued by the light itself. |
| Thermal control | Heating-driven changes in firing | Sustained or high-duty-cycle illumination protocols. |
| Cre-negative littermates | Recombinase-independent leak from a DIO construct | Any Cre-dependent design. Quantify, do not assume zero. |
| Antidromic test | Terminal illumination back-propagating to somata | All terminal-field and projection-specific designs. |
Matching the control vector
An opsin-negative control is only informative if it matches the experimental vector on everything except the opsin: same promoter, same recombinase logic, same serotype, same titer, same volume, same expression interval, same illumination. A reporter-only vector at a convenient titer is not a matched control. For an EF1α-DIO-hChR2 experimental arm, an EF1α-DIO reporter is the matched partner; for a CaMKIIa-DIO arm, the CaMKIIa-DIO reporter.

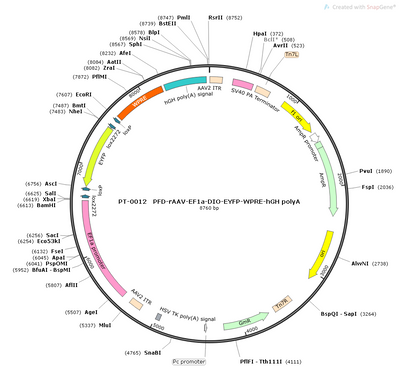

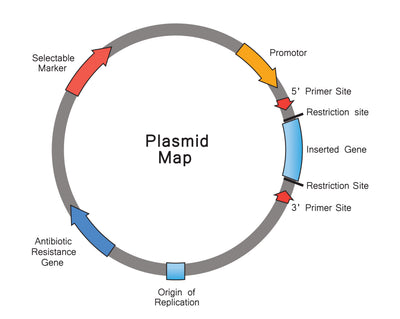

Green-channel reporter-only vectors: AAV-EF1α-DIO-EYFP · AAV-CAG-DIO-EYFP · AAV-CaMKIIa-DIO-EGFP · scAAV-hSyn-DIO-EGFP.

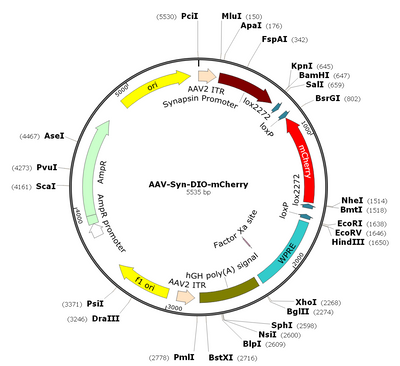

Red-channel reporter-only vectors: AAV-hSyn-DIO-mCherry (AAV1) · AAV-hSyn-DIO-mCherry (AAV8) · AAV-Syn-DIO-tdTomato (Serotype 1) · AAV-Syn-DIO-tdTomato (Serotype 9).
Pharmacological controls for slice validation
In slice, pharmacology distinguishes direct ChR2-driven depolarization from downstream synaptic recruitment — the difference between a monosynaptic and a polysynaptic response, and the basis of most connectivity claims. All of the agents below are listed under enzymes, inhibitors & biochemicals.
| Agent | Use in a ChR2 expression protocol | Catalog |
|---|---|---|

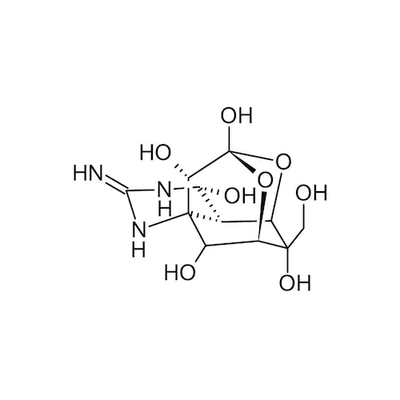

| Tetrodotoxin (TTX) | Blocks action potentials; isolates direct light-evoked currents from network activity | Tetrodotoxin · TTX citrate |
| CNQX / NBQX | AMPA/kainate block; identifies the glutamatergic component of a light-evoked response | CNQX · NBQX |
| D-AP5 | NMDA block; separates NMDA-dependent components | D-AP5 · D-AP5 sodium salt |
| Picrotoxin / gabazine | GABAA block; unmasks or excludes inhibitory contributions | Picrotoxin · Gabazine |
Catalog gap — plan a second supplier
Channelrhodopsin-assisted circuit mapping isolates monosynaptic connections using TTX together with 4-aminopyridine (4-AP) (Petreanu et al., Nat Neurosci 2007). BioHippo stocks TTX but does not currently stock 4-AP. If your protocol uses the TTX/4-AP method, source the 4-AP separately.
Stage 7 — Cohort structure, blinding, and exclusion criteria
ChR2 experiments have a distinctive analysis hazard: histology comes last. Because expression and fiber placement are only verified after the behavioural data exist, there is a live opportunity to exclude animals on grounds that correlate with outcome. Removing that opportunity is a design decision, not an analysis decision.
- Write exclusion criteria before the first surgery. Minimum expression extent, acceptable fiber tip placement relative to the target, and health criteria for expressing cells — all defined in advance, in writing.
- Score histology blind to condition and outcome. Have expression and placement scored by someone without access to the behavioural data.
- Randomize vector assignment and interleave experimental and control animals across surgery days, rigs, and times of day.
- Power the study on the effect size you specified in Stage 1, remembering that exclusions will shrink the usable n. Over-enroll accordingly.
- Report the exclusions — how many animals, on which criterion, in which group.
Within-animal designs
Where the question allows it, light-on versus light-off epochs within the same animal remove between-animal expression variability from the comparison — often the largest source of variance in these experiments. This does not eliminate the need for an opsin-negative group; it changes what that group is doing, from a variance control to a specificity control.
Stage 8 — Acceptance criteria before the data count
A ChR2 experiment produces two datasets: the outcome measure, and the evidence that the intended manipulation was actually delivered. The second is what makes the first interpretable, and it should be evaluated against thresholds fixed in advance — a point made repeatedly in the standard cell-type-specific ChR2 stimulation protocols (Cardin et al., Nat Protoc 2010).
Pre-analysis verification checklist
- Expression extent covers the target structure and stays within the pre-specified boundary
- Fiber tip sits within the pre-specified distance of the expressing field
- Reporter co-localizes with the intended cell-type marker at or above the specified fraction
- Cre-negative animals show expression at or below the specified leak threshold
- Photocurrent in a validation subset drives spiking at the frequencies used in the protocol
- Expressing cells show no axonal blebbing or intracellular aggregation
- Days post-injection recorded for every animal and within the specified window
- Fiber output measured at cohort start and end, within the specified tolerance

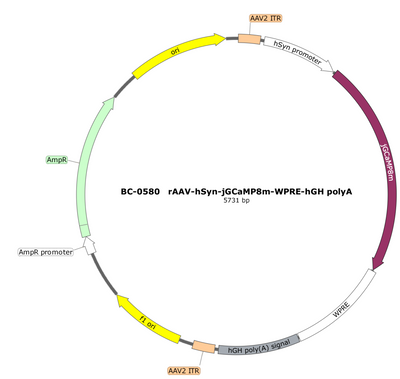

Where the design supports it, a paired activity sensor gives an independent readout that the manipulation engaged the target population. Spectrally separated options include AAV-hSyn-jGCaMP8m and AAV-hSyn-jGCaMP8f; crosstalk between the excitation windows has to be measured for the specific filter set in use (Yizhar et al., Neuron 2011).
Troubleshooting a ChR2 expression workflow
| Observation | Most likely causes | First thing to change |
|---|---|---|
| No fluorescence at all | Missed target; vector degraded by freeze–thaw; Cre absent or driver line not expressing in the target | Verify coordinates against a fresh atlas registration; run a positive-control injection with a known-good reporter vector |
| Fluorescence present, no photocurrent | Poor membrane trafficking; expression interval too short; light not reaching the recorded cell | Extend the interval in a pilot; measure irradiance at the sample, not at the source |
| Photocurrent present, no spiking | Current below threshold for that cell type; irradiance too low; pulse too brief | Increase pulse width first, then irradiance; consider a higher-photocurrent variant before raising titer |
| Spiking fails at higher frequencies | Variant kinetics mismatched to the protocol; desensitization from long pulses | Shorten pulses and lengthen inter-pulse intervals; switch to a faster-kinetics variant |
| Expression far wider than intended | Titer or volume too high; serotype with broad spread; reflux up the needle tract | Reduce volume before reducing titer; slow the infusion and extend the dwell time |
| Axonal blebbing or aggregates | Over-expression — excess titer, strong promoter, or interval too long | Lower titer and shorten the interval; re-pilot rather than adjusting mid-cohort |
| Expression in Cre-negative animals | DIO construct leak; recombination-independent read-through | Quantify leak in every cohort; lower titer, which usually reduces absolute leak |
| Effect present in the opsin-negative group | Heating; light as a sensory cue; surgery or implant effect | Reduce duty cycle; add a masking light; confirm the control is matched on every parameter but the opsin |
Frequently asked questions about ChR2 experimental design
How many animals should the pilot use?
Enough to see the dose range, not enough to power a result — commonly three to five animals spanning two or three titer or volume conditions. The pilot's output is a chosen dose and a confirmed interval, not a statistical claim. Budget it as a separate cohort with its own approval and timeline.
Can I use published titer and volume values directly?
Treat them as a starting range only. Published values are specific to a structure, species, serotype, promoter, and vector prep, and titer determination methods vary between suppliers, so nominally identical titers are not always equivalent. Use the published number to centre a pilot, not to replace one.
Is one opsin-negative control group enough?
It is the minimum, and it is sufficient only when matched on promoter, recombinase logic, serotype, titer, volume, interval, and illumination. It does not by itself address heating in sustained-illumination protocols, antidromic activation in terminal-stimulation designs, or spread into neighbouring structures — each of those needs its own group or its own test.
Should the control vector express a fluorophore, or nothing?
A fluorophore. Without one there is no way to confirm the control animals were successfully transduced, which means a failed injection in the control group is indistinguishable from a successful one — and that quietly biases the comparison. Choose a fluorophore that occupies the same channel as the experimental construct's reporter so histological scoring is identical across groups.
When should the histology be scored?
After the outcome data are collected, by someone blind to both condition and outcome, against criteria written before the first surgery. Scoring expression while knowing an animal's behavioural result is the most common way exclusion criteria drift toward the hypothesis.
How do I test for antidromic activation in a terminal-stimulation design?
Record at the source while illuminating the terminal field and look for short-latency, low-jitter somatic spikes. If antidromic spiking is present, the manipulation is not pathway-specific and the claim needs qualifying — or the design needs a pharmacological or geometric approach that restricts activation to the terminals.
How long does a full ChR2 expression protocol take?
Plan 4–10 weeks from first pilot injection to the end of the experimental cohort, dominated by the expression interval (2–6 weeks) plus a separate pilot round beforehand. Intersectional and retrograde designs sit at the long end because the slowest arm governs.
Building the vector set for your design
A complete ChR2 experiment needs more than the opsin — a matched reporter-only control, a Cre-delivery vector if you are working without a driver line, and the pharmacology for slice validation. Browse the AAV vector research collection, the neuroscience vectors & viruses collection, or request a quote to confirm serotype availability, titer, and lead time before you schedule surgeries.
References
- Miyashita T, Shao YR, Chung J, Pourzia O, Feldman DE. Long-term channelrhodopsin-2 (ChR2) expression can induce abnormal axonal morphology and targeting in cerebral cortex. Front Neural Circuits. 2013;7:8. doi:10.3389/fncir.2013.00008 · PMID 23386813
- Aravanis AM, Wang LP, Zhang F, Meltzer LA, Mogri MZ, Schneider MB, Deisseroth K. An optical neural interface: in vivo control of rodent motor cortex with integrated fiberoptic and optogenetic technology. J Neural Eng. 2007;4(3):S143–S156. doi:10.1088/1741-2560/4/3/S02 · PMID 17873414
- Owen SF, Liu MH, Kreitzer AC. Thermal constraints on in vivo optogenetic manipulations. Nat Neurosci. 2019;22(7):1061–1065. doi:10.1038/s41593-019-0422-3 · PMID 31209378
- Allen BD, Singer AC, Boyden ES. Principles of designing interpretable optogenetic behavior experiments. Learn Mem. 2015;22(4):232–238. doi:10.1101/lm.038026.114 · PMID 25787711
- Petreanu L, Huber D, Sobczyk A, Svoboda K. Channelrhodopsin-2-assisted circuit mapping of long-range callosal projections. Nat Neurosci. 2007;10(5):663–668. doi:10.1038/nn1891 · PMID 17435752
- Yizhar O, Fenno LE, Davidson TJ, Mogri M, Deisseroth K. Optogenetics in neural systems. Neuron. 2011;71(1):9–34. doi:10.1016/j.neuron.2011.06.004 · PMID 21745635
- Cardin JA, Carlén M, Meletis K, Knoblich U, Zhang F, Deisseroth K, Tsai LH, Moore CI. Targeted optogenetic stimulation and recording of neurons in vivo using cell-type-specific expression of Channelrhodopsin-2. Nat Protoc. 2010;5(2):247–254. doi:10.1038/nprot.2009.228 · PMID 20134425
- Mattis J, Tye KM, Ferenczi EA, et al. Principles for applying optogenetic tools derived from direct comparative analysis of microbial opsins. Nat Methods. 2011;9(2):159–172. doi:10.1038/nmeth.1808 · PMID 22179551
Parameter ranges in this guide are starting points for pilot optimization, not validated protocols, and depend on species, brain region, serotype, promoter, and vector preparation. Verify current specifications, titer, and packaging format on each product page before use. All products referenced are supplied for Research Use Only and are not for use in diagnostic or therapeutic procedures.
